suprema FaceStation - Cable Pinouts

17
Connections

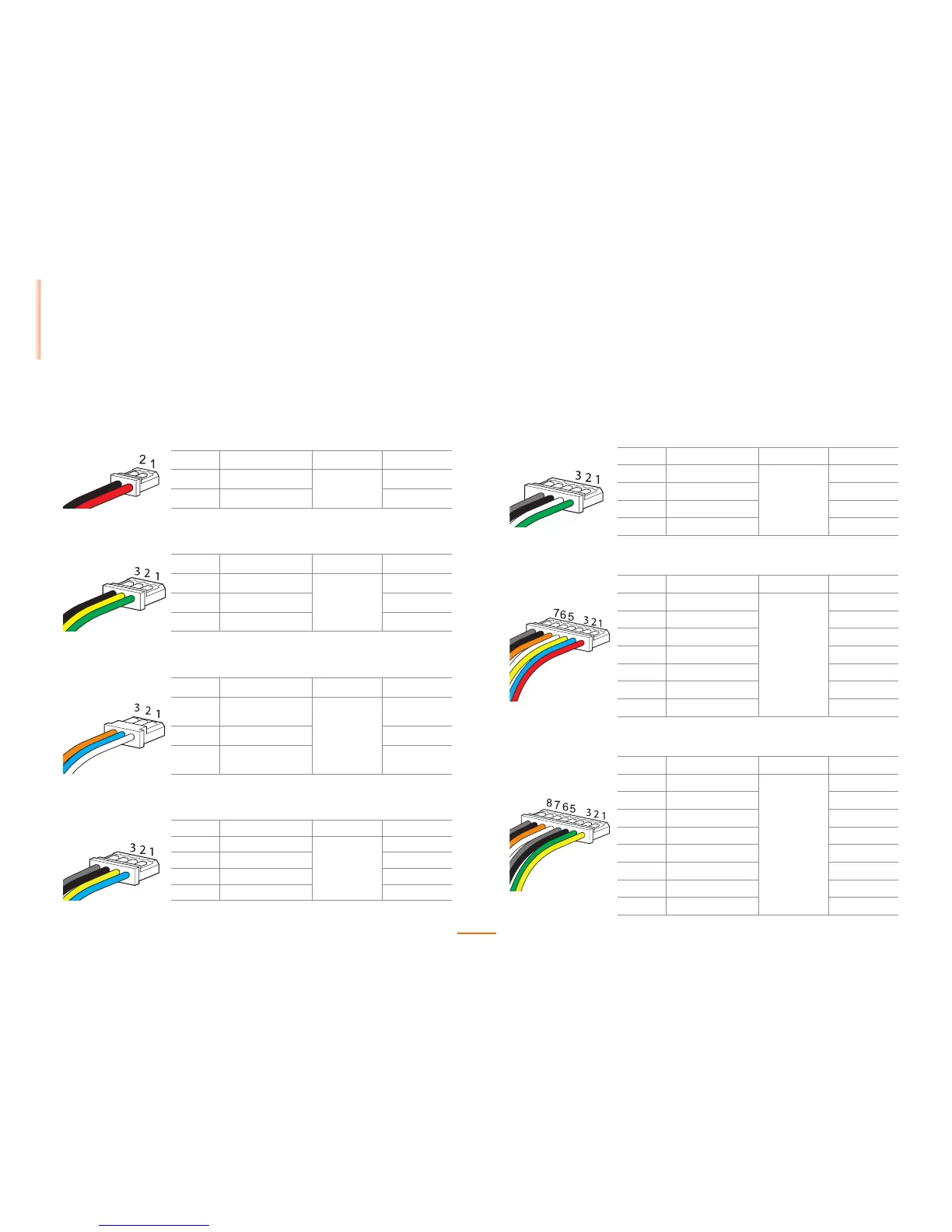

Cable Specifications
Power Cable
Pin Name Cable Type Color
1 POW +
AWG24
RED
2 POW - BLACK
RS232 Cable
Pin Name Cable Type Color
1 RS232 RX
AWG26
GREEN
2 RS232 TX YELLOW
3 GND BLACK
Relay Cable
Pin Name Cable Type Color
1
RELAY NORMAL
OPEN
AWG24
WHITE
2 RELAY COMMON BLUE
3
RELAY NORMAL
CLOSE
ORANGE
RS485 Cable
4
Pin Name Cable Type Color
1 RS4 85 TRX+
AWG26
BLUE
2 RS 485 TRX- YELLOW
3 GND BLACK
4 SHIELD GND GR AY
Wiegand Cable
4
Pin Name Cable Type Color
1 DATA0
AWG26
GREEN
2 DATA1 WHITE
3 GND BLACK
4 SHIELD GND GR AY
Analogue Video Phone Cable
4
Pin Name Cable Type Color
1 VOICE SIGNAL
AWG26
RED
2 GND BLUE
3 POWER YELLOW
4 VIDEO SIGNAL WHITE
5 DOOR OPEN SIGNAL ORANGE
6 GND BLACK
7 SHIELD GND GR AY
Switch Cable
4
Pin Name Cable Type Color
1 SWITCH INPUT0
AWG26
YELLOW
2 SWITCH INPUT1 GREEN
3 SWITCH GND BLACK
4 SHIELD GND GR AY
5 SWITCH INPUT2 WHITE
6 SWITCH INPUT3 ORANGE
7 SWITCH GND BLACK
8 SHIELD GND GR AY
