suprema FaceStation - Connecting a Wiegand Output; Mini USB Connection

24
Connections
C

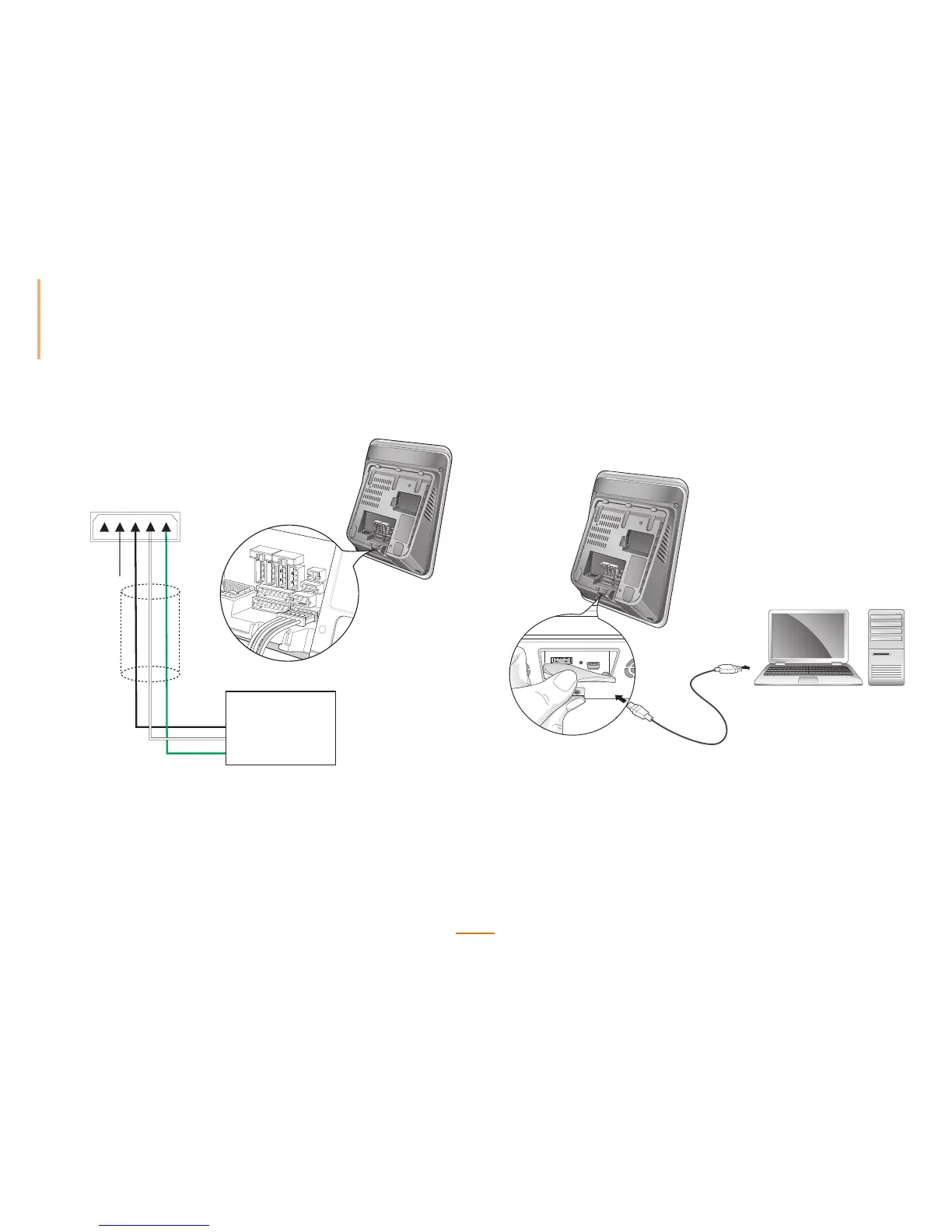

onnecting a Wiegand Output
PIN3: Wiegand GND (Black)
Access Controller
GND
Wiegand Output.Data1
Wiegand Output.Data0
PIN2: Wiegand DATA1 (White)
PIN1: Wiegand DATA0 (Green)
3 2 1
Cable Shield
(Optional)
Mini USB Connection
FaceStation can communicate with a PC via the mini USB port.
