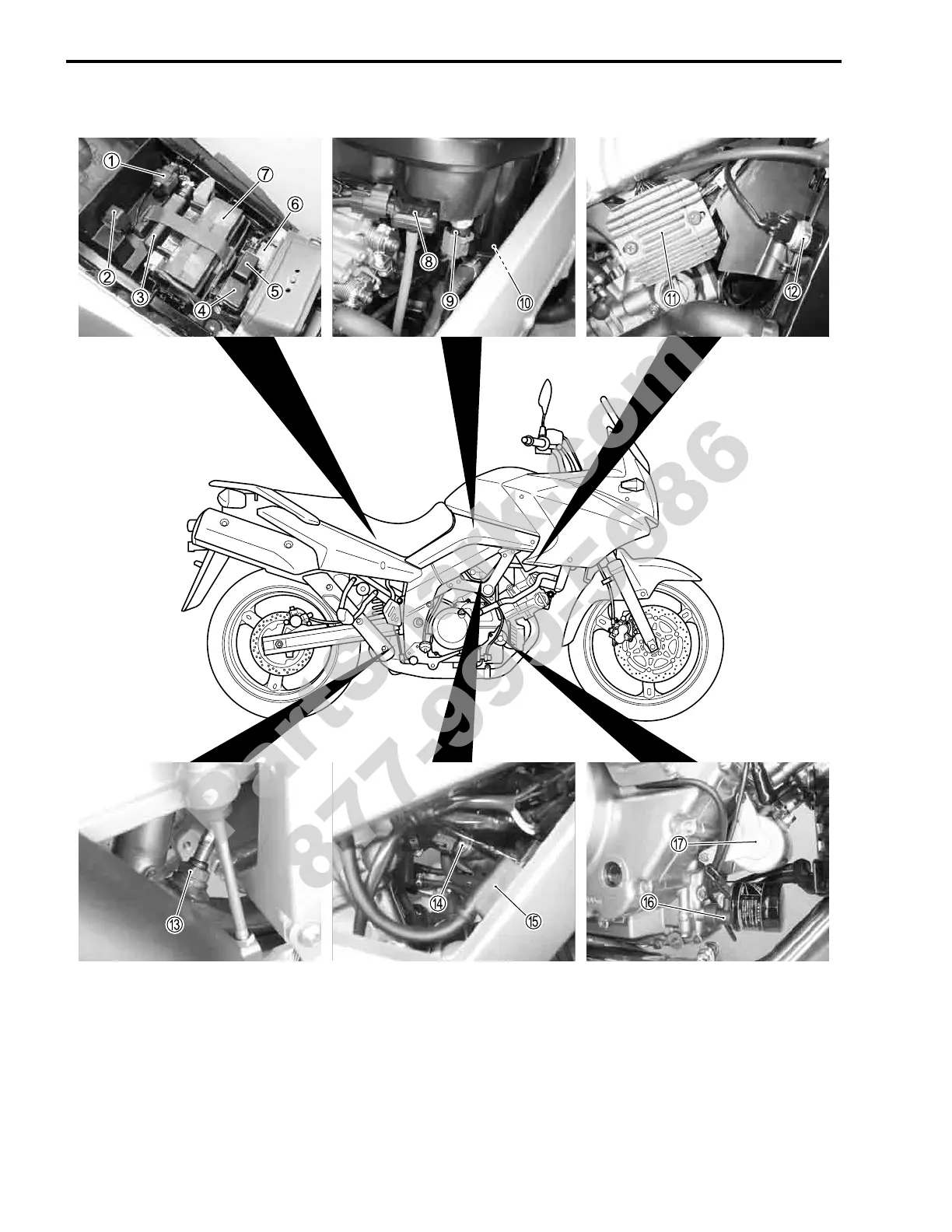

8-6 ELECTRICAL SYSTEM

1 TO sensor (!4-35)

2 Fuel pump relay (!5-10)

3 ECM (Engine Control Module)

4 Fuse box

5 Turn signal/side-stand relay (!8-37)

6 Starter relay (!8-19)

7 Battery

8 IAP sensor (!4-25)

9 IAT sensor (!4-33)

0 PAIR control valve (!10-7)

A Regulator/rectifier (!8-11)

B Cooling fan thermo-switch (!6-9)

C HO2 sensor (!4-47)

D ECT sensor (!4-31)

E Ignition coil (No.2)

F Oil pressure switch

G Starter motor
