EMISSION CONTROL INFORMATION 10-3
CRANKCASE EMISSION CONTROL SYSTEM

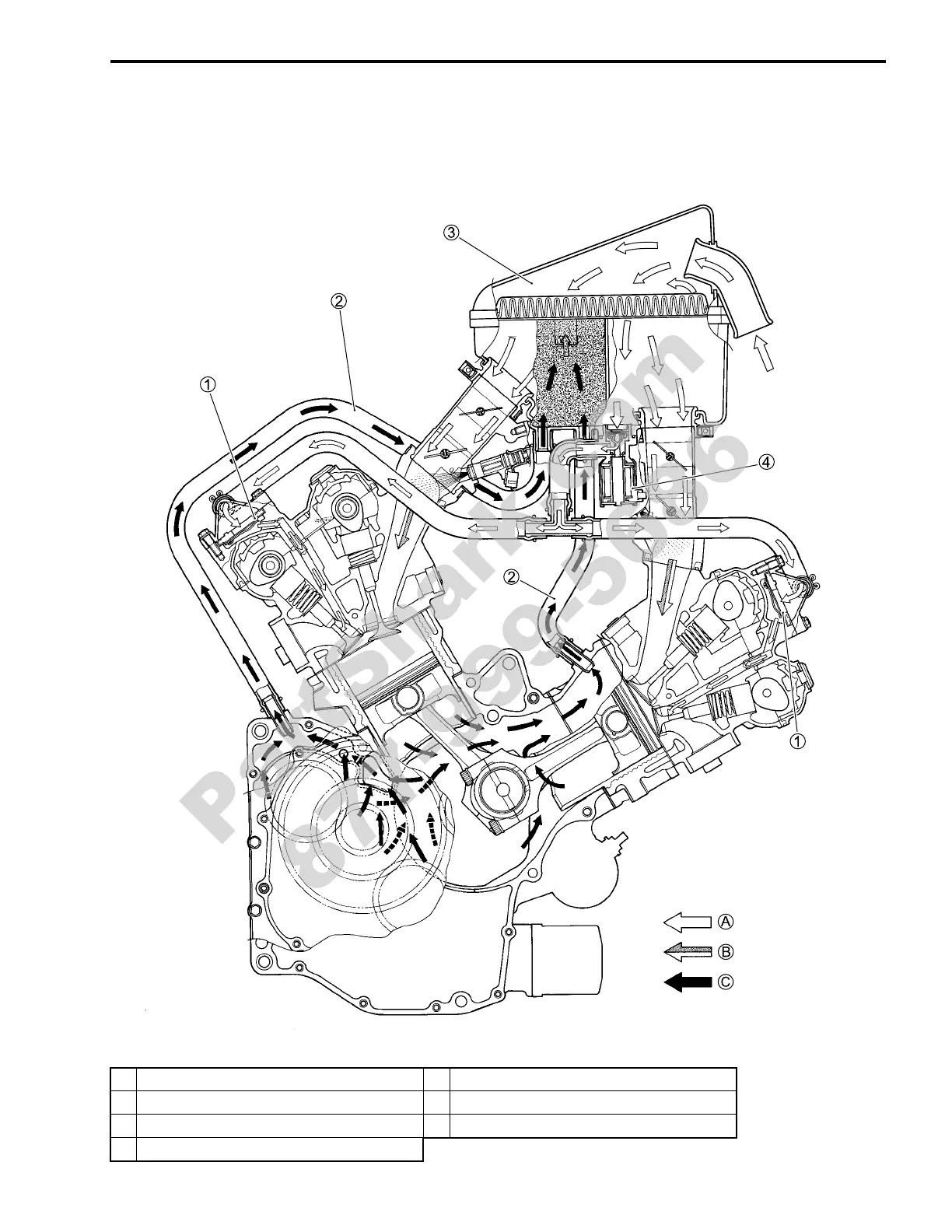

The engine is equipped with a PCV system. Blow-by gas in the engine is constantly drawn into the crank-
case, which is returned to the combustion chamber through the breather hose, air cleaner and throttle body.
î›§
1 PAIR reed valve
î›§
A FRESH AIR
î›§
2 Breather hose
î›§
B FUEL/AIR MIXTURE
î›§
3 Air cleaner box
î›§
C BLOW-BY GAS
î›§
4 PAIR control solenoid valve
