8-38 ELECTRICAL SYSTEM
SWITCHES
IGNITION SWITCH REMOVAL
• Remove the fuel tank.
(!5-7)
• Remove the air cleaner box.
(!5-15)

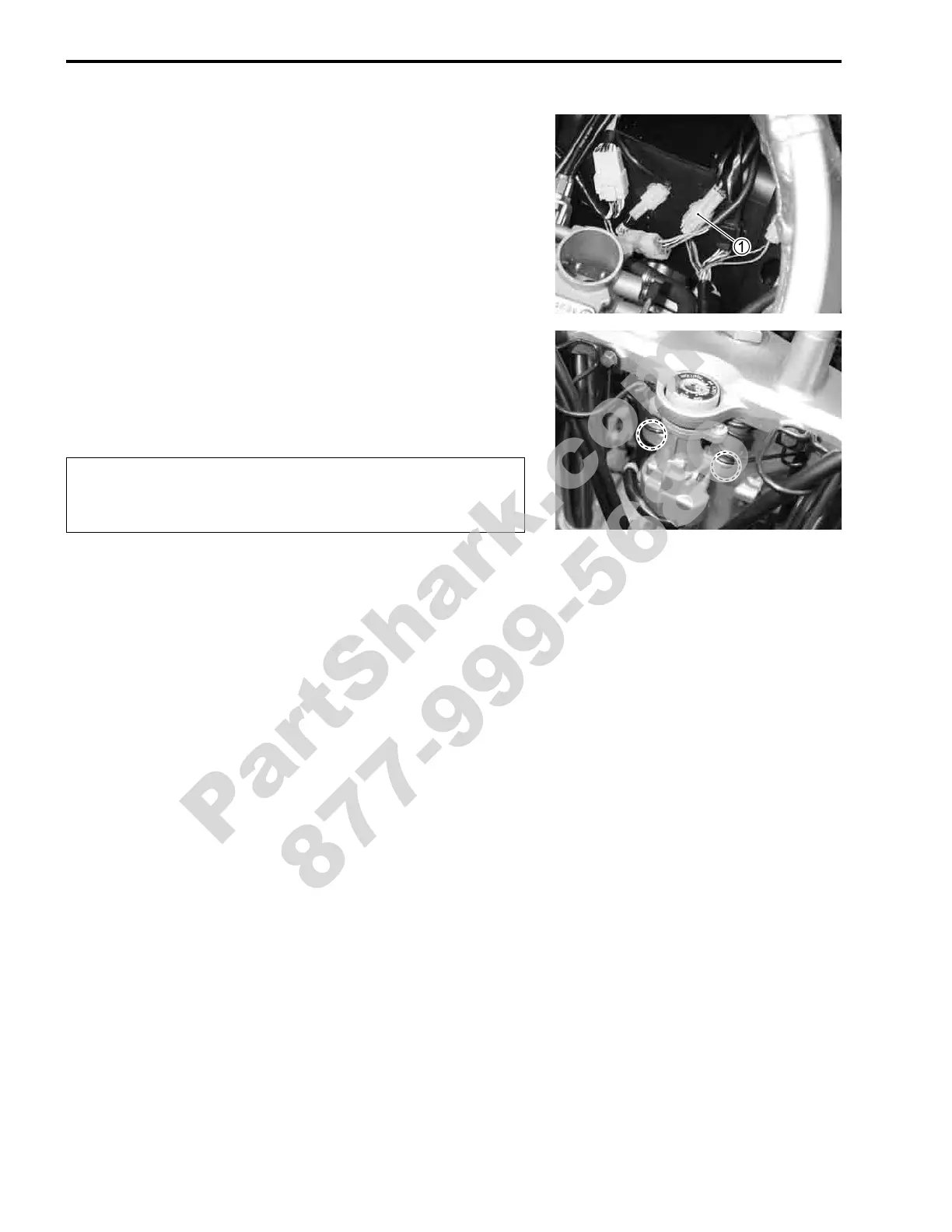

• Disconnect the ignition switch coupler

1.
• Remove the ignition switch mounting bolts with the special
tools.
# 09930-11920: Torx bit JT40H
09930-11940: Bit holder
"
1 99000-32050: THREAD LOCK “1342” (USA)
2 99000-32110: THREAD LOCK SUPER “1322” (Others)
When reusing the ignition switch bolt, clean thread and
apply the THREAD LOCK SUPER “1322” or THREAD
LOCK “1342”
.
