ELECTRICAL SYSTEM 8-17

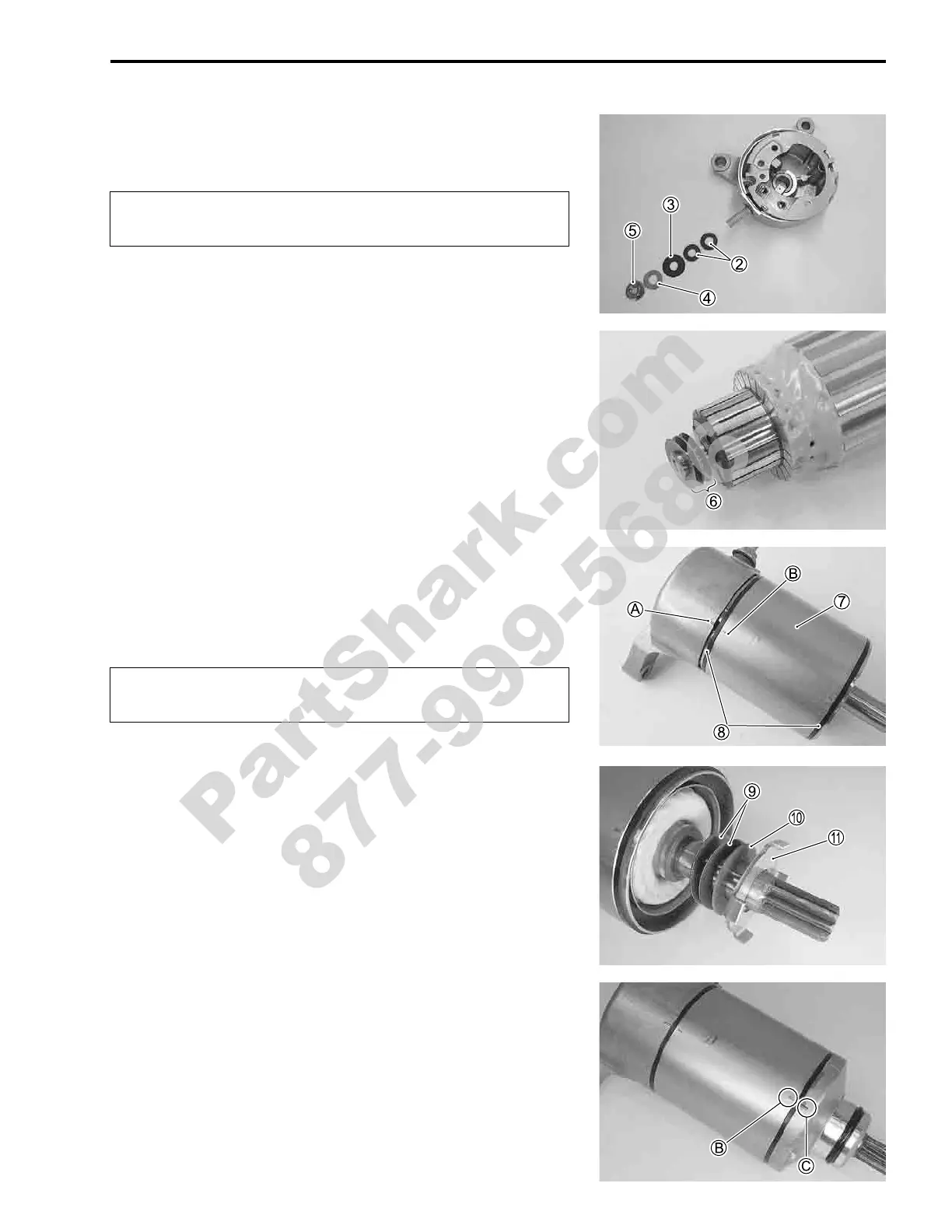

• Install the washers
2 (12 × 6.5 × 2), washer
3 (16 × 6.5 × 1),
washer
4 (14 × 6.5 × 1) and nut
5.
"
• Install the washers
6.
NOTE:
The number of washer
6
varies according to individual.
• Install the seal rings
8 to starter motor case
7.
• When install the rear bracket to starter motor case, align the
marks
A on the rear bracket with cut point
B at the starter
motor case.
"
• Install the washers
9 slip washer
0 and thrust stopper
A.
NOTE:
The number of washer
9
varies according to individual.
• Install the front bracket.
• Align the marks
C on the front bracket with the marks
B on
the starter motor case.
Replace the O-rings with the new ones to prevent oil
leakage and moisture.
Replace the seal rings with the new ones to prevent oil
leakage and moisture.
