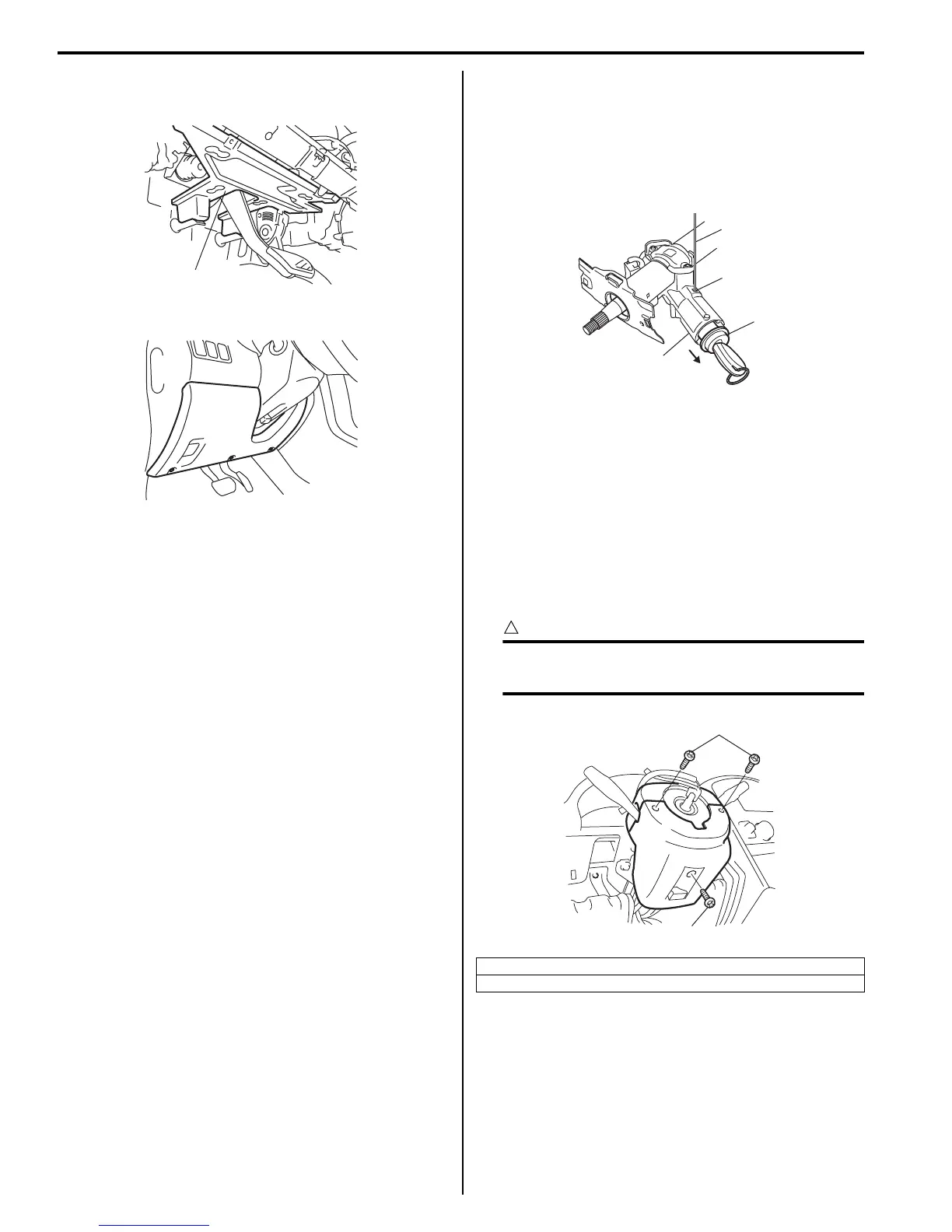

6B-10 Steering Wheel and Column:
12) Install instrument panel under cover (1) to instrument
panel.
13) Install steering column hole cover (1).
14) If steering wheel is removed, install it by referring to
“Steering Wheel Removal and Installation: ”.
15) Connect negative (–) cable to battery.
16) After installing steering column assembly, be sure to
enable air bag system by referring to “Enabling Air
Bag System: in Section 8B”.
Steering Column Assembly Inspection
S5JB0A6206007
Check steering column for damage and operation
referring to “Checking Steering Column for Accident
Damage: ”.
Ignition Switch Cylinder Assembly Removal
and Installation (Without Keyless Start System)
S5JB0A6206015
Removal
1) Disconnect negative (–) cable at battery.
2) Disable air bag system referring to “Disabling Air
Bag System: in Section 8B”.
3) Remove steering column upper and lower covers.
4) Remove immobilizer control module referring to
“Immobilizer Control Module (ICM) Removal and
Installation: in Section 10C”.
5) Remove ignition switch cylinder assembly as follows.
a) Turn ignition key to “ACC” position.
b) Insert 2 mm (0.078 in.) rod (2) through hole (3)
and push ignition switch cylinder lock.
c) Detach ignition switch cylinder assembly (1) from
steering lock assembly (4).
Installation
1) Install ignition switch cylinder assembly as follows.
a) Turn ignition key to “ACC” position.
b) In this state, push ignition switch cylinder
assembly into steering lock assembly till it clicks.
2) Install immobilizer control module (ICM) referring to
“Immobilizer Control Module (ICM) Removal and
Installation: in Section 10C”.
3) Install upper and lower cover and screws (1).
CAUTION
!
When installing covers, be careful so that
each lead wire is not caught between covers.
4) Enabling air bag system referring to “Disabling Air
Bag System: in Section 8B”.
1
I5JB0A620018-01
1
I5JB0A620011-01
*: Standard screw
**: Tapping screw
2
3
1
4
I5JB0A620025-01
1*
1**
I5JB0A620026-01
