Body Electrical Control System: 10B-19
DTC B1157 (No. 1157) Air Bag Deployment Signal Input
S5JB0AA204011

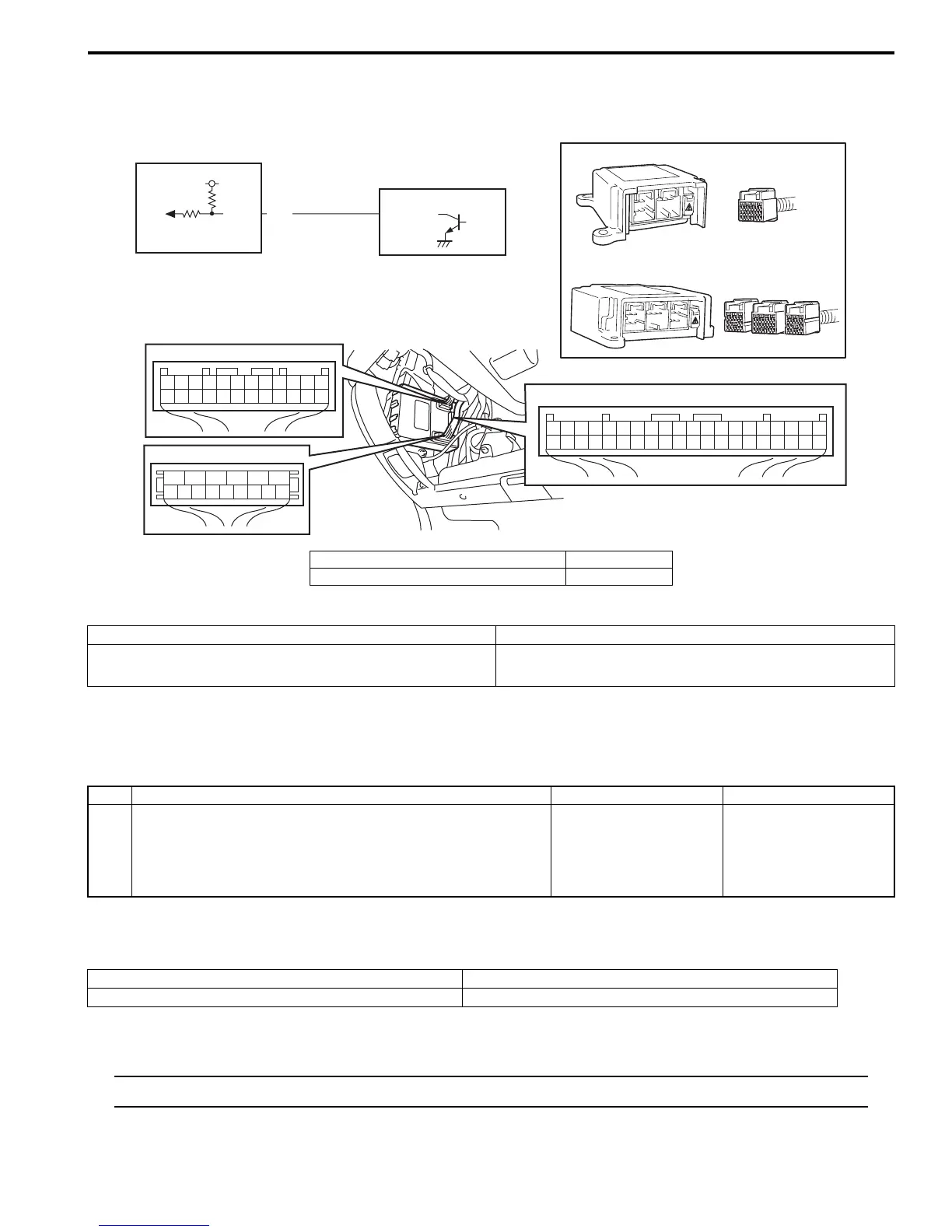

Wiring Diagram
DTC Detecting Condition and Possible cause
Flow Test Description
Step 1: Check DTC for SDM.
DTC troubleshooting
DTC B1170 (No. 1170): EEPROM access error
S5JB0AA204012
DTC Detecting Condition and Possible Cause
DTC Troubleshooting
NOTE
Before performing steps below, be sure to perform “Body Electrical Control System Check: ”.
1) Ignition switch OFF.
2) Replace BCM.
3) Repeat BCM Check Flow Table.
789101112131415
6
5 4 3 2 1
G32
24
123456789101112
1314151617181920212223
G30
1234567891011121314151617181920
2122232425262728293031323334353637383940
G31
YEL
5V
G30-19
[A]: G47-22
[B]: G46-15
[A]
[B]
2
1
G47
G46
I5JB0AA20009-02
[A]: Vehicle not equipped with side-air bag 1. SDM
[B]: Vehicle equipped with side-air bag 2. BCM
DTC detecting condition Possible cause
Air bag deployment signal is fed from SDM to BCM. • Air bag component parts
• BCM malfunction
Step Action Yes No
1 Check DTC for SDM
1) Check DTC stored in SDM referring to “DTC Check: in
Section 8B”.
Is DTC B1021 detected?
Go to “DTC B1021: Air
Bag Module Deployed:
in Section 8B”.
Substitute a known-
good BCM and recheck.
DTC detecting condition Possible cause
Data write error or check sum error. BCM malfunction
