3B-3 Differential: Front

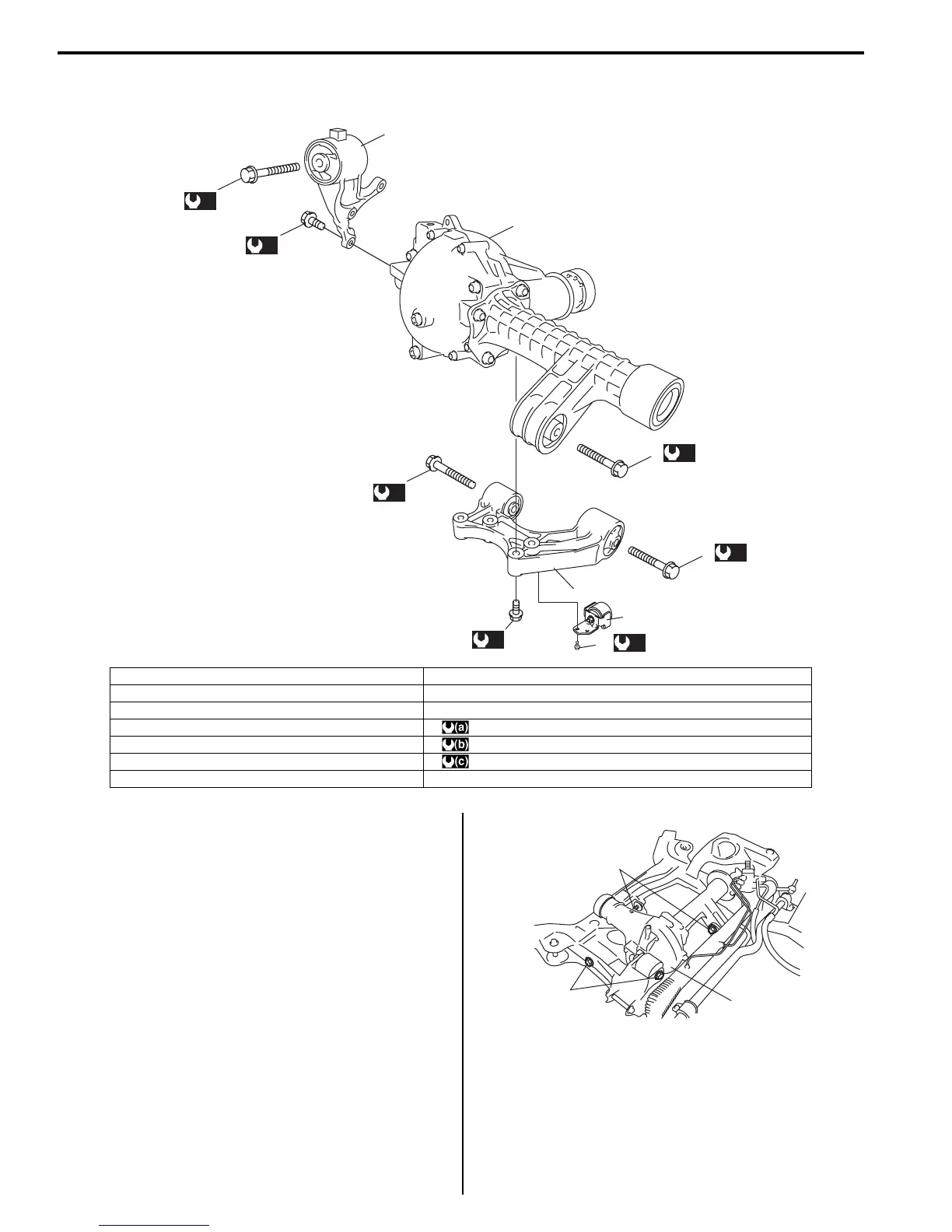

Front Differential Unit Components
S5JB0A3216007
Front Differential Dismounting and Remounting
S5JB0A3216008
Dismounting
1) Lift up vehicle and drain front differential oil.
2) Remove front drive shafts referring to “Front Drive
Shaft Assembly Removal and Installation: Front in
Section 3A”.
3) Remove front suspension frame with front differential
referring to “Front Suspension Frame, Stabilizer Bar
and/or Bushings Removal and Installation: in
Section 2B”.
4) Remove mounting bolts (1), and then take off front
differential from front suspension frame (2).
2
1
3
7
(a)
5
(a)
(b)
8
6
(b)
4
(a)
5
(a)
10
(c)
9
I5JB0A321001-05
1. Front differential 8. Rear mounting bracket bolt
2. Right mounting bracket 9. Damper
3. Right mounting bolt 10. Damper bolt
4. Differential mounting bolt : 85 N⋅m (8.5 kgf-m, 61.5 lb-ft)
5. Rear mounting bolt : 50 N⋅m (5.0 kgf-m, 36.5 lb-ft)
6. Rear mounting bracket : 23 N⋅m (2.3 kgf-m, 17.0 lb-ft)
7. Right mounting bracket bolt
1
1
2
I5JB0A321002-01
To Next Page
