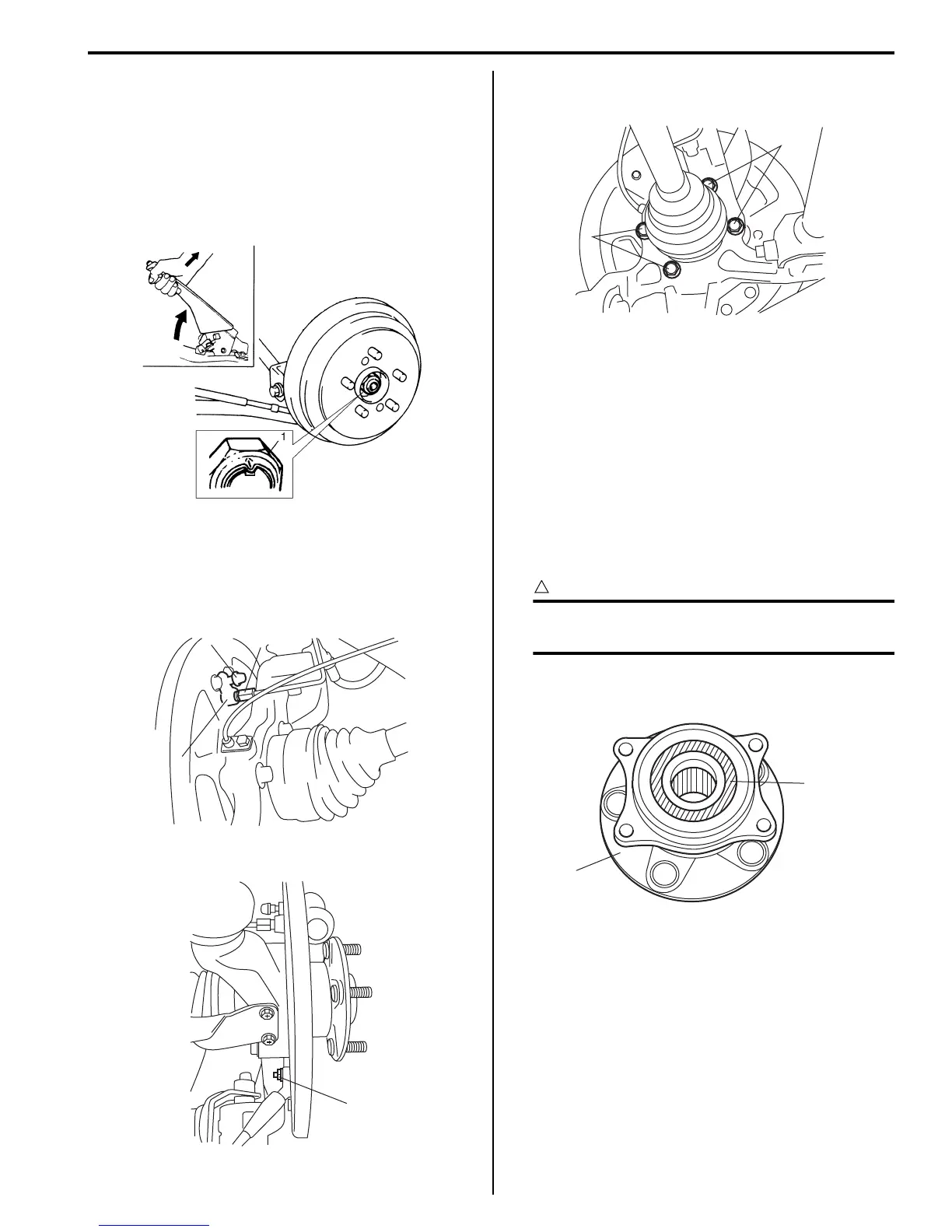

Rear Suspension: 2C-25
Rear Wheel Hub Assembly Removal and
Installation
S5JB0A2306039
Removal
1) Hoist vehicle and remove rear wheels.
2) Uncaulk rear axle nut (1).
3) Pull up parking brake lever fully and remove rear
axle nut (1).
4) Remove rear break shoe referring to “Rear Brake
Shoe Removal and Installation: in Section 4C”.
5) Disconnect brake pipe (1) from wheel cylinder (2)
and put wheel cylinder bleeder plug cap (3) onto
pipe to prevent fluid from spilling.
6) Loosen parking cable cap nut (1).
7) Removal rear wheel hub housing bolts (1) and then
remove rear wheel hub assembly and back plate.
8) Refer to Step 7) of “Front Wheel Hub Assembly
Removal and Installation: in Section 2B” to remove
hub bolts since the rear wheel hub assembly is the
same as the front wheel hub assembly.
Installation
1) Refer to Step 1) of “Front Wheel Hub Assembly
Removal and Installation: in Section 2B” to install
hub bolts since the rear wheel hub assembly is the
same as the front wheel hub assembly.
2) Apply grease to end face of inner ring (2) before rear
wheel hub (1) installation.
CAUTION
!
Do not apply the grease to the encoder
section to avoid the encoder malfunction.
“A”: Grease 99000–25010 (SUZUKI Super
Grease A)
I5JB0A230058-01
1
2
3
I5JB0A230059-01
1
I5JB0A230060-01
1
1
I5JB0A230061-01
1
2, "A"
I5JB0A220018-01
