9F-7 Security and Locks:

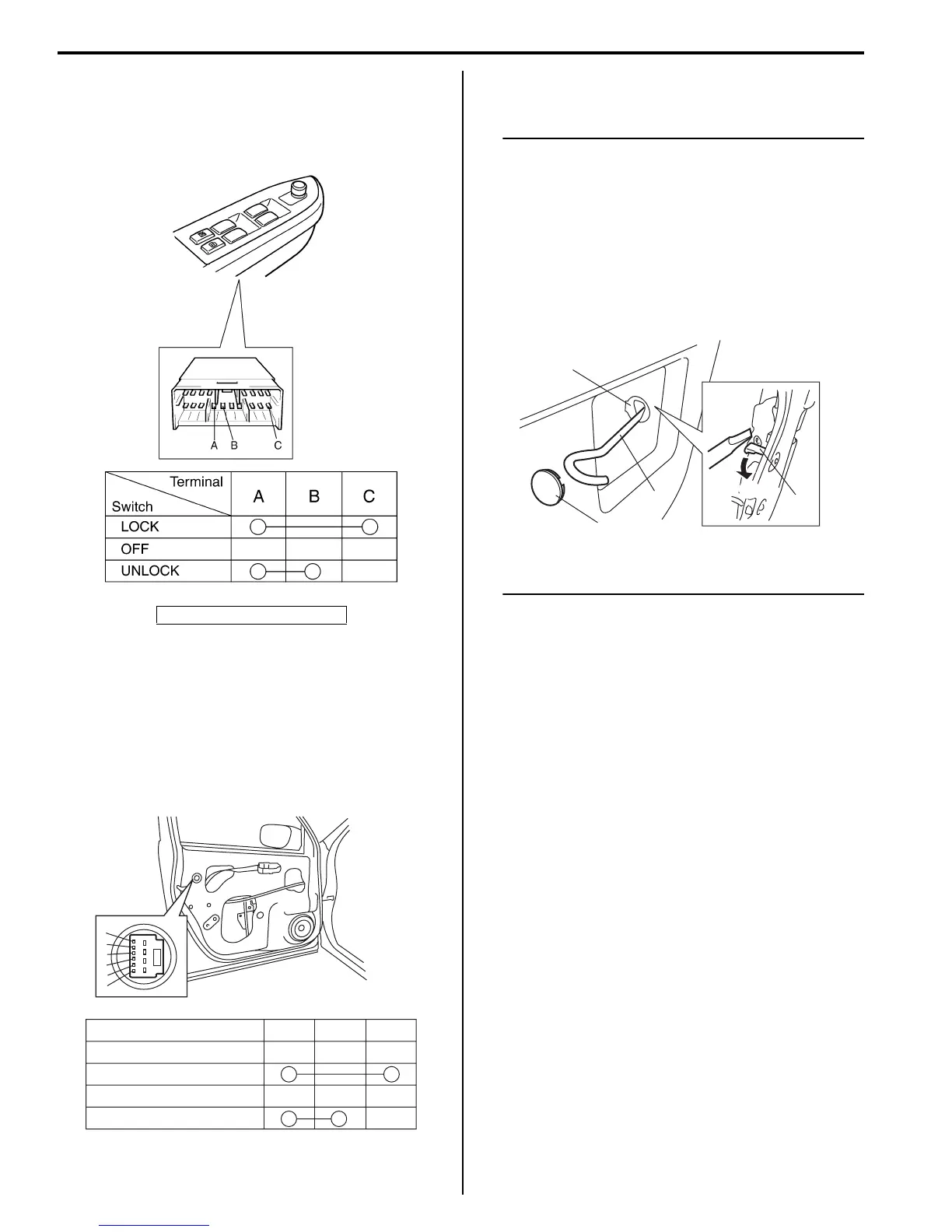

Power Door Lock Switch Inspection
S5JB0A9606004
Check for continuity between terminals at each switch
position. If check result is not as specified, replace
switch.
Door Key Cylinder Switch Inspection
S5JB0A9606005
1) Remove front door trim referring to Step 1) to 3) of
“Front Door Glass Removal and Installation: in
Section 9E”
2) Check for continuity between terminals at each
switch position. If check result is not as specified,
replace door lock assembly.
Power Door Lock Actuator Inspection (If
Equipped)
S5JB0A9606006
NOTE
If rear end door is closed and the rear end
door lock actuator does not function in
unlock position, follows the procedures to
unlock the rear end door lock actuator.
1. Remove cap (1).
2. Penetrate door sealing cover (2) by jack
lever (3) or whatever to insert jack lever,
and push emergency lever (4) into unlock
position “a”.
3. After inspection replace door sealing
cover.
1) Remove door trim from door panel.
For front door, refer to Step 1) to 3) of “Front Door
Glass Removal and Installation: in Section 9E”.
For rear door, refer to Step 1) to 3) of “Rear Door
Glass Removal and Installation: in Section 9E”.
For rear end door, refer to Step 1) of “Rear End Door
Assembly Removal and Installation: in Section 9J”.
2) Disconnect power door lock actuator coupler.
3) Connect battery positive (+) and negative (–)
terminals to the door lock actuator terminals (a, b, c,
d) as shown in figure.
If it does not operate as specified in the following
table, replace door lock assembly.
1. Power door lock switch
I5JB0A960007-01
a
b
c
d
e
f
LOCK
OFF
UNLOCK
dab
cfe
Right side switch terminals
Left side switch terminals
I5JB0A960008-01
2
3
1
4
“a”
I5JB0A960022-01
