Security and Locks: 9F-4
Keyless Entry System Operation Inspection
S5JB0A9604005
1) Confirm that power door lock system operates normally, refer to “Power Door Lock System Operation Inspection:
”.
2) All doors are closed and unlocked.
3) Check the following operation:
a) Push “lock” button (1) on transmitter (2) or remote controller once, and check all doors lock and hazard waning
lights flash once.
b) Push “unlock” button (3) on transmitter (2) or remote controller twice, and check all doors unlock and hazard
waning lights flash twice and interior light turns on several seconds with the interior light switch in the middle
position.
If malfunction is found, go to “Keyless Entry System Symptom Diagnosis (If Equipped): ”.
Door Lock Function of Keyless Start System Symptom Diagnosis (If Equipped)
S5JB0A9604010
Proceed to “Keyless Start System Symptom Diagnosis: in Section 10E” in case that doors cannot be locked and
unlocked by operating the request switch at the outside door handle.
Repair Instructions

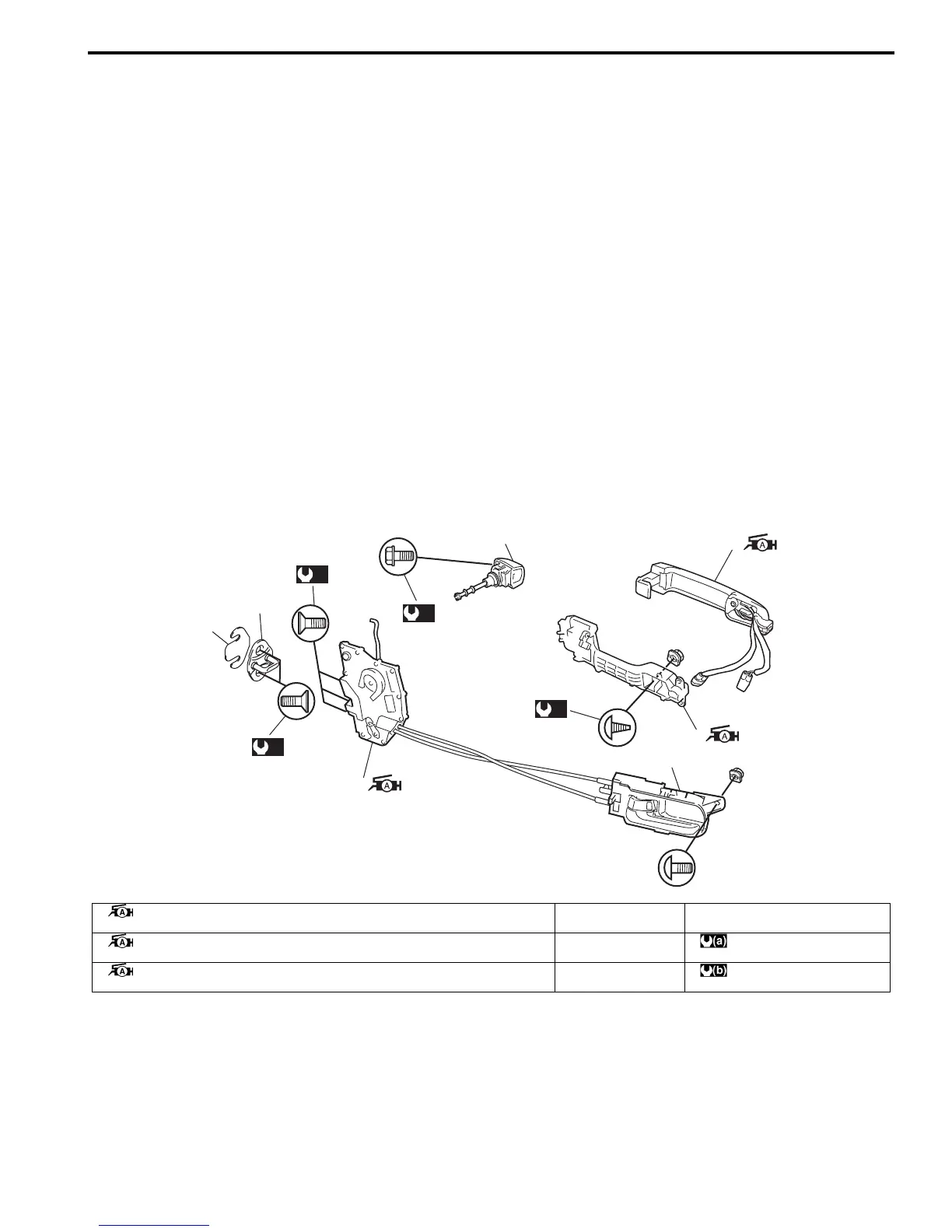

Front Door Lock Assembly Components
S5JB0A9606001
(a)
(a)
(a)
(b)
6
3
7
1
4
5
2
I5JB0A960002-02
1. Front door latch assembly
: Apply lithium grease 99000-25010 to sliding and rotating parts and spring if any.
4. Latch striker 7. Inside handle bezel
2. Outside handle assembly
: Apply lithium grease 99000-25010 to sliding part.
5. Shim : 5.0 N⋅m (0.5 kgf-m, 4.0 lb-ft)
3. Outside handle frame
: Apply lithium grease 99000-25010 to sliding part and spring.
6. Key cylinder : 10 N⋅m (1.0 kgf-m, 7.5 lb-ft)
To Next Page
