Air Conditioning System: 7B-2
Precautions on Servicing Refrigerant Line
S5JB0A7200008

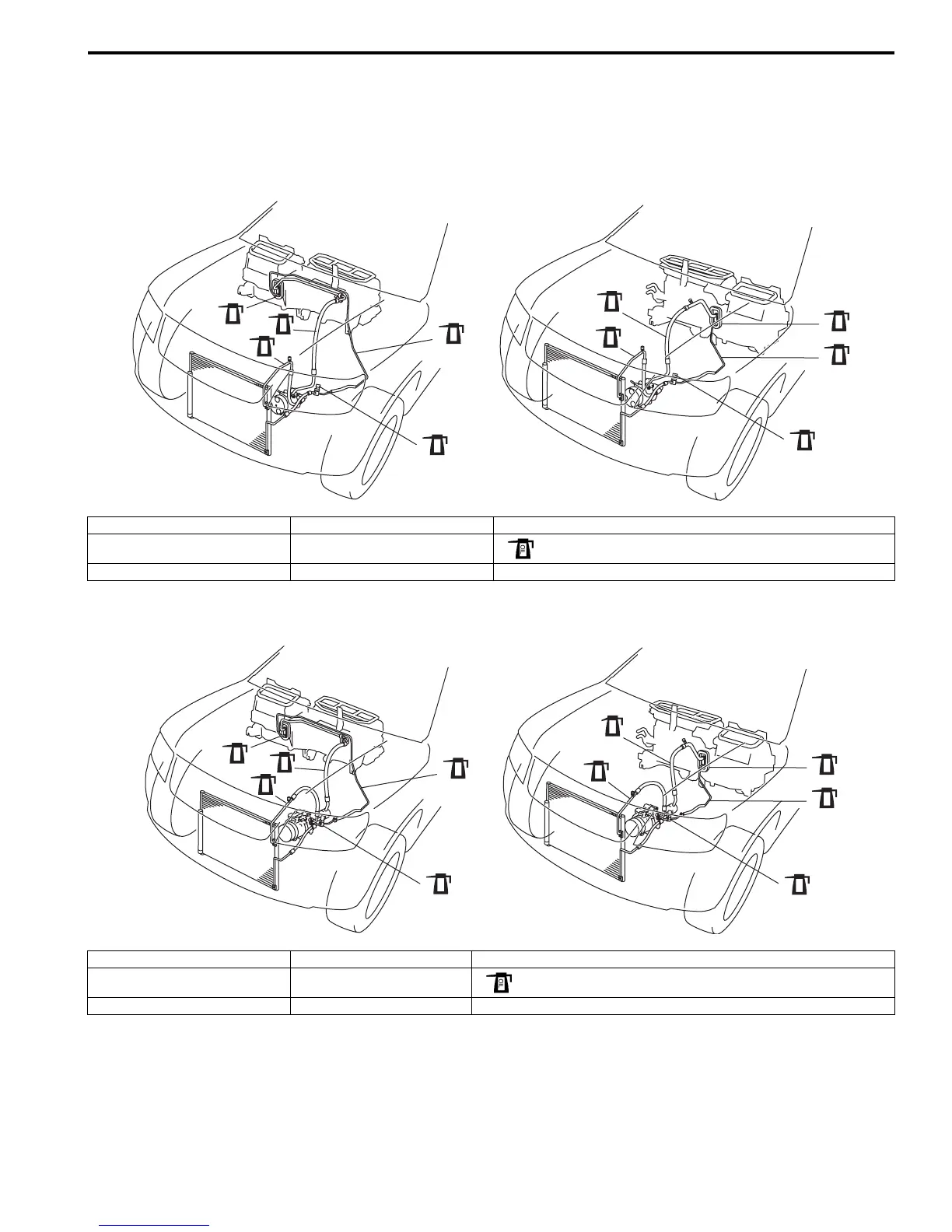

• When connecting hoses and pipes, apply a few drops of compressor oil (refrigerant oil) to seats of coupling nuts
and O-ring.
For M16 engine model
For J20 engine model
4
[A] [B]
OIL
1
OIL
1
OIL
2
OIL
2
OIL
3
OIL
4
OIL
3
OIL
5
OIL
5
OIL
I5JB0A720001-02
[A]: LH steering vehicle 2. Discharge hose 5. Pressure sensor
[B]: RH steering vehicle 3. Liquid pipe : Apply compressor oil (refrigerant oil) to O-ring.
1. Suction hose 4. Expansion valve
4
OIL
1
OIL
2
OIL
3
[A] [B]
OIL
5
OIL
1
OIL
2
OIL
4
OIL
3
OIL
5
OIL
I5JB0A720002-02
[A]: LH steering vehicle 2. Discharge hose 5. Pressure sensor
[B]: RH steering vehicle 3. Liquid pipe : Apply compressor oil (refrigerant oil) to O-ring.
1. Suction hose 4. Expansion valve
