3B-21 Differential: Rear
Rear
General Description
Rear Differential Construction
S5JB0A3221001
Refer to “Front Differential Construction: Front”.
Diagnostic Information and Procedures
Rear Differential Symptom Diagnosis
S5JB0A3224001
Refer to “Front Differential Symptom Diagnosis: Front”.
Repair Instructions
Rear Differential Oil Change
S5JB0A3226010
Refer to “Front Differential Oil Change: Front”.
The point which is different from the front differential is described.
Differential oil capacity (Reference)
: 0.8 – 0.9 liters (1.7/1.4 – 1.9/1.6 US/Imp. pt.)

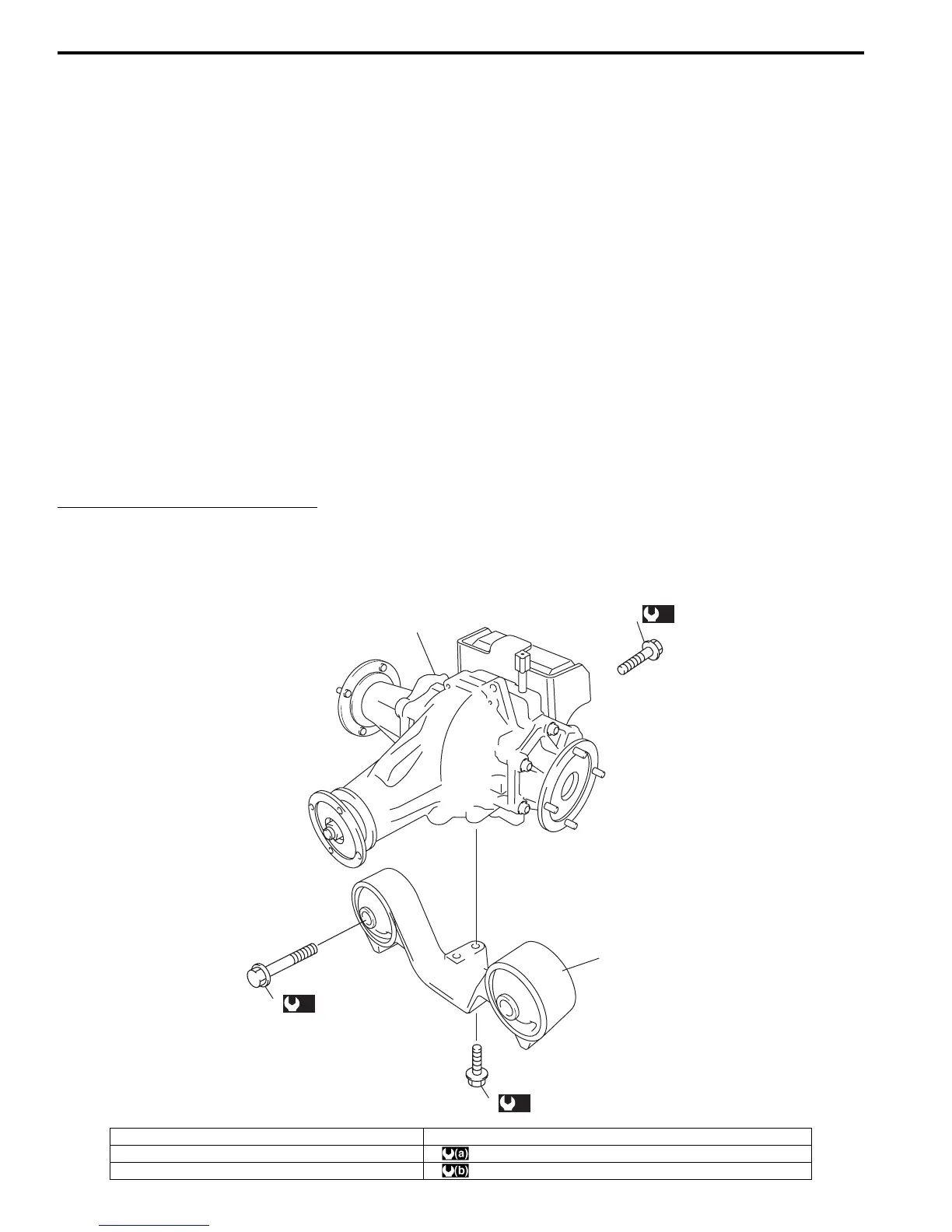

Rear Differential Unit Components
S5JB0A3226011
(a)
4
(a)
3
(b)
5
1
2
I5JB0A322002-03
1. Rear differential 4. Front mounting bracket bolt
2. Front mounting bracket : 120 N⋅m (12.0 kgf-m, 87.0 lb-ft)
3. Rear mounting bolt : 50 N⋅m (5.0 kgf-m, 36.5 lb-ft)
