Transfer: Motor-Shift Type (Transfer with Shift Actuator) 3C-19
DTC Check
S5JB0A3314006

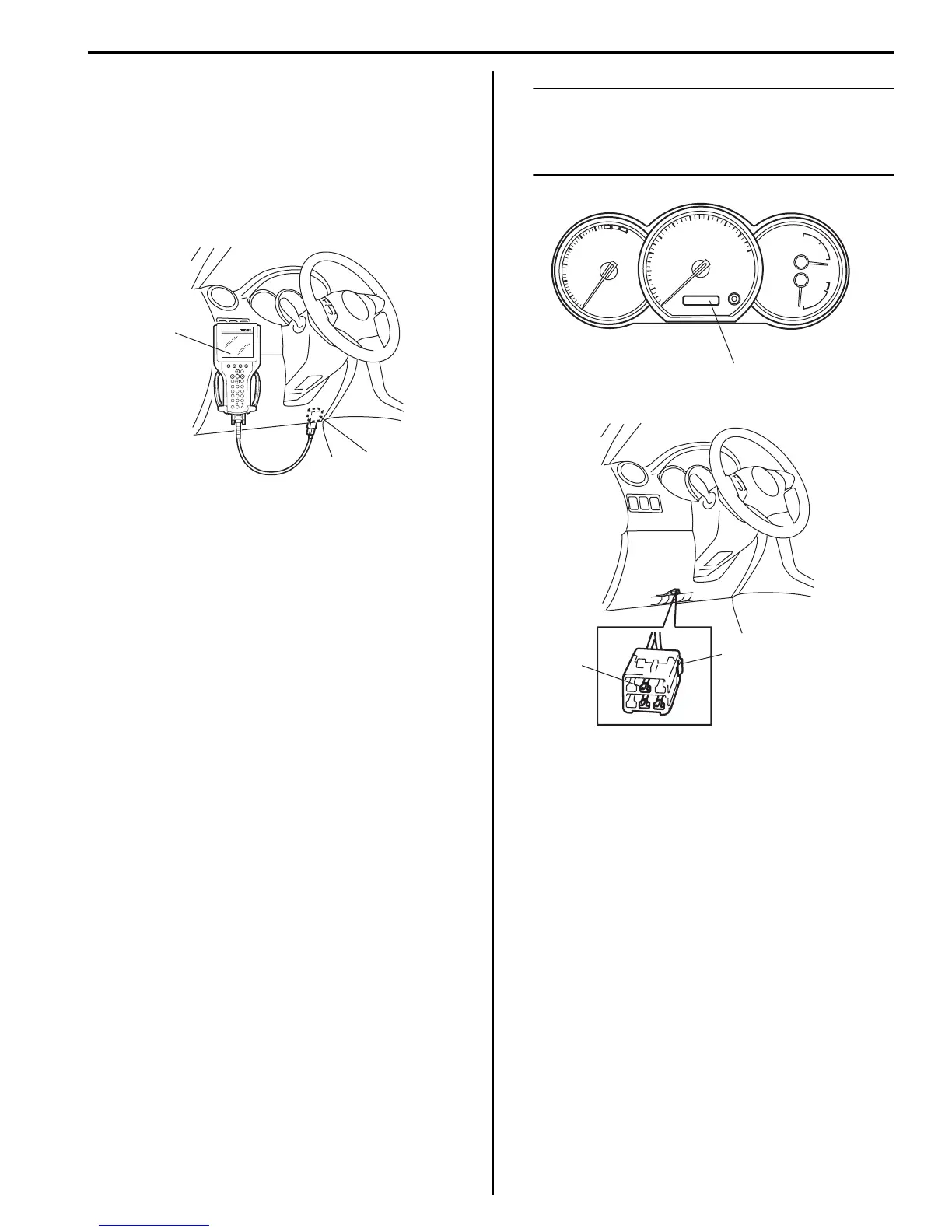

Using SUZUKI Scan Tool
1) Turn ignition switch to OFF position.
2) Connect SUZUKI scan tool to data link connector
(DLC) (1) located on underside of instrument panel.
Special tool
(A): SUZUKI scan tool
3) Turn ignition switch to ON position.
4) Read DTC according to instructions displayed on
SUZUKI scan tool and print it or write it down. Refer
to SUZUKI scan tool operator’s manual for further
details.
If communication between SUZUKI scan tool and
4WD control module is not possible, check if
SUZUKI scan tool is communicable by connecting it
to 4WD control module in another vehicle. If
communication is possible in this case, SUZUKI
scan tool is in good condition. Then check data link
connector and serial data line (circuit) in the vehicle
with which communication was not possible.
5) After completing the check, turn ignition switch OFF
and disconnect SUZUKI scan tool from data link
connector (DLC).
Using Diagnosis Connector
1) With ignition switch OFF position, using service wire
short diagnosis switch terminal (1) of diagnosis
connector (2) and body ground.
2) With ignition switch ON position and leaving engine
OFF, read DTC displayed on digital display odometer
(3) of combination meter referring to “DTC Table:
Motor-Shift Type (Transfer with Shift Actuator)”.
NOTE
When more than 2 DTCs are stored in
memory, flashing for each DTC is repeated
three times starting with the smallest DTC
number in increasing order.
3) After completing the check, turn ignition switch OFF,
disconnect service wire from diagnosis connector.
(A)
1
I5JB0A332012-01
1
2
3
I5JB0A332013-01
