Transfer: Motor-Shift Type (Transfer with Shift Actuator) 3C-43
DTC C1246: Clutch Pedal Position (CPP) Switch Circuit Short
S5JB0A3314051

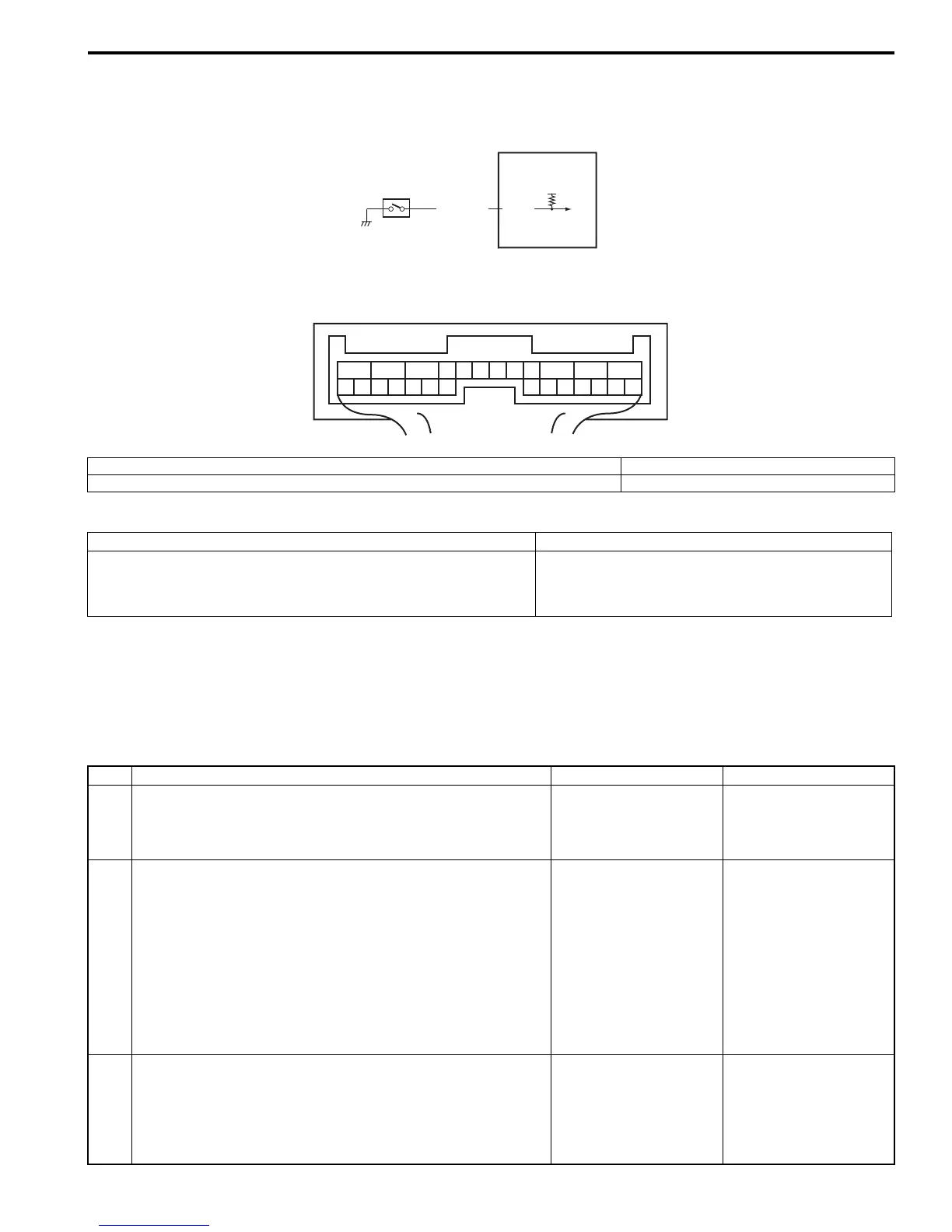

Wiring Diagram
DTC Detecting Condition and Trouble Area
DTC Confirmation Procedure
1) Clear DTC using scan tool.
2) Start engine and drive vehicle at 50 km/h (31 mile/h) or more vehicle speed at least for 1 min.
3) Stop vehicle and check DTC.
Troubleshooting
12V
E91-7
BLK/ORN
1
2
1
2
3
45
6
7
891011
12
13
14
1516
1718
19
20
21
22
23
24
25
26
[A]
I5JB0A332020-01
[A]: 4WD control module connector “E91” (viewed from harness side) 2. 4WD control module
1. CPP switch
DTC detecting condition Trouble area
CPP switch signal is input when vehicle speed is 30 km/h (19
mph).
CPP switch
CPP switch circuit
4WD control module
Step Action Yes No
1 Was “4WD control system check” performed? Go to Step 2. Go to “4WD Control
System Check: Motor-
Shift Type (Transfer with
Shift Actuator)”.
2 CPP switch circuit check
1) Disconnect CPP switch connector with ignition switch
OFF.
2) Check for proper connection to terminal of CPP switch
connector.
3) If connection is OK, measure voltage between “BLK/
ORN” terminal of CPP switch connector and vehicle
body ground with ignition switch ON.
Is it 10 – 14 V?
Go to Step 3. Go to Step 4.
3 CPP switch check
1) Check CPP switch referring to “Clutch Pedal Position
(CPP) Switch Inspection and Adjustment: in Section
5C”.
Is switch in good condition?
Substitute a known-
good 4WD control
module and recheck.
Replace CPP switch.
