Rear Brakes: 4C-3

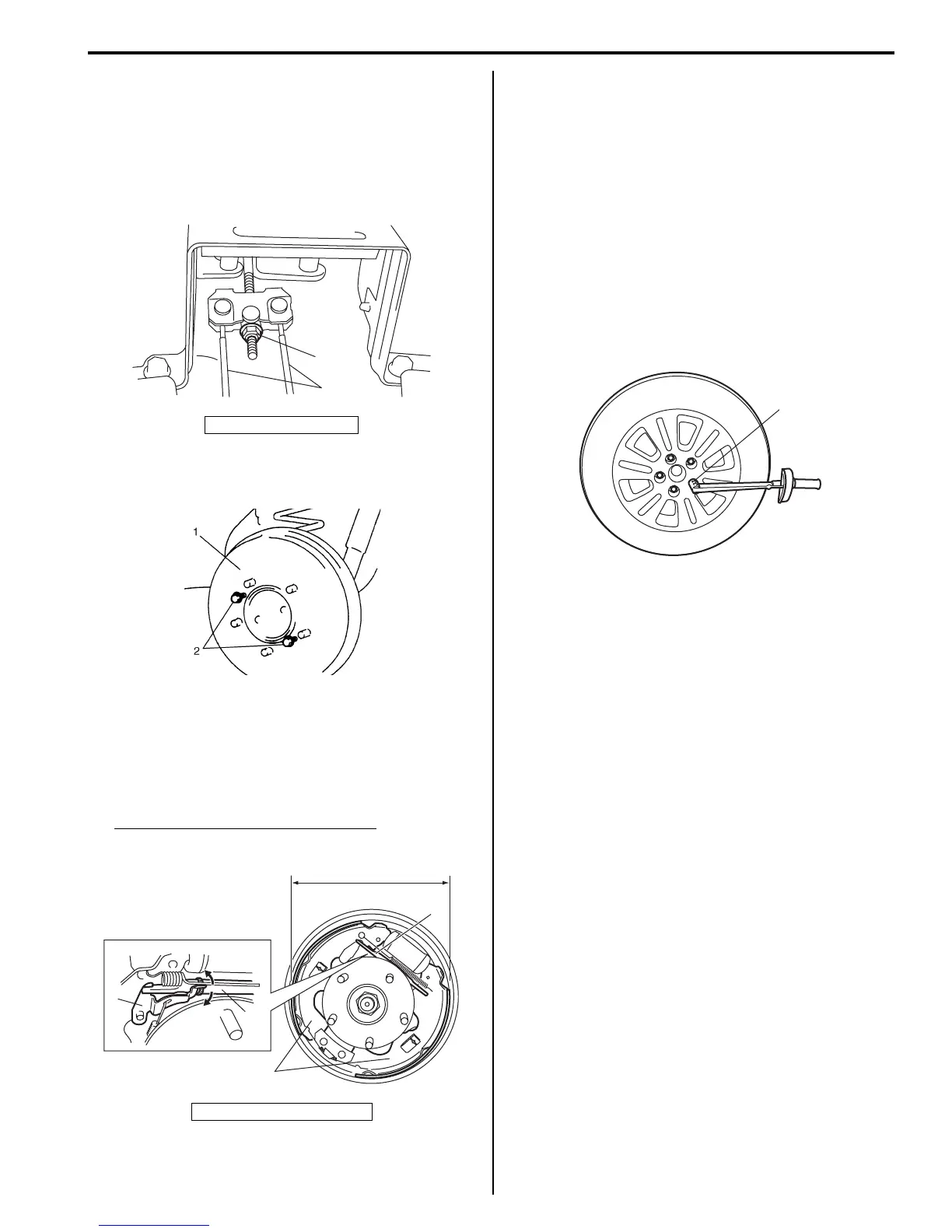

Rear Brake Drum Removal and Installation
S5JB0A4306003
Removal
1) Hoist vehicle and remove rear wheel.
2) Release parking brake lever.
3) Remove rear console box and loosen parking brake
cable adjusting nut (1).
4) Remove brake drum (1) by using 8 mm bolts (2) (2
pcs).
Installation
1) Before installing brake drum, check outer diameter of
brake shoes (1). If it is not within value as specified
below, adjust it to specification by turning adjuster
(2).
Rear brake shoe outer diameter “a”
253.3 – 253.7 mm (9.961 – 9.980 in.)
2) Install brake drum after making sure that inside of
brake drum and brake shoes are free from dirt and
oil.
3) Upon completion of all jobs, depress brake pedal
with about 30 kg (66 lbs) load 3 to 10 times so as to
obtain proper drum-to-shoe clearance.
Adjust parking brake cable. For adjustment, refer to
“Parking Brake Check and Adjustment: in Section
4D”.
4) Install rear console box.
5) Install wheel and tighten wheel nuts to specified
torque.
Tightening torque
Wheel nut (a): 100 N·m (10.0 kgf-m, 72.5 lb-ft)
6) Check to ensure that brake drum is free from
dragging and proper braking is obtained. Then
remove vehicle from hoist and perform brake test
(foot brake and parking brake).
2. Brake cable
3. Adjuster pawl lever
1
2
I5JB0A430002-02
IYSQ01430004-01
2
“a”
1
2
3
I5JB0A430003-01
(a)
I5JB0A220029-01
