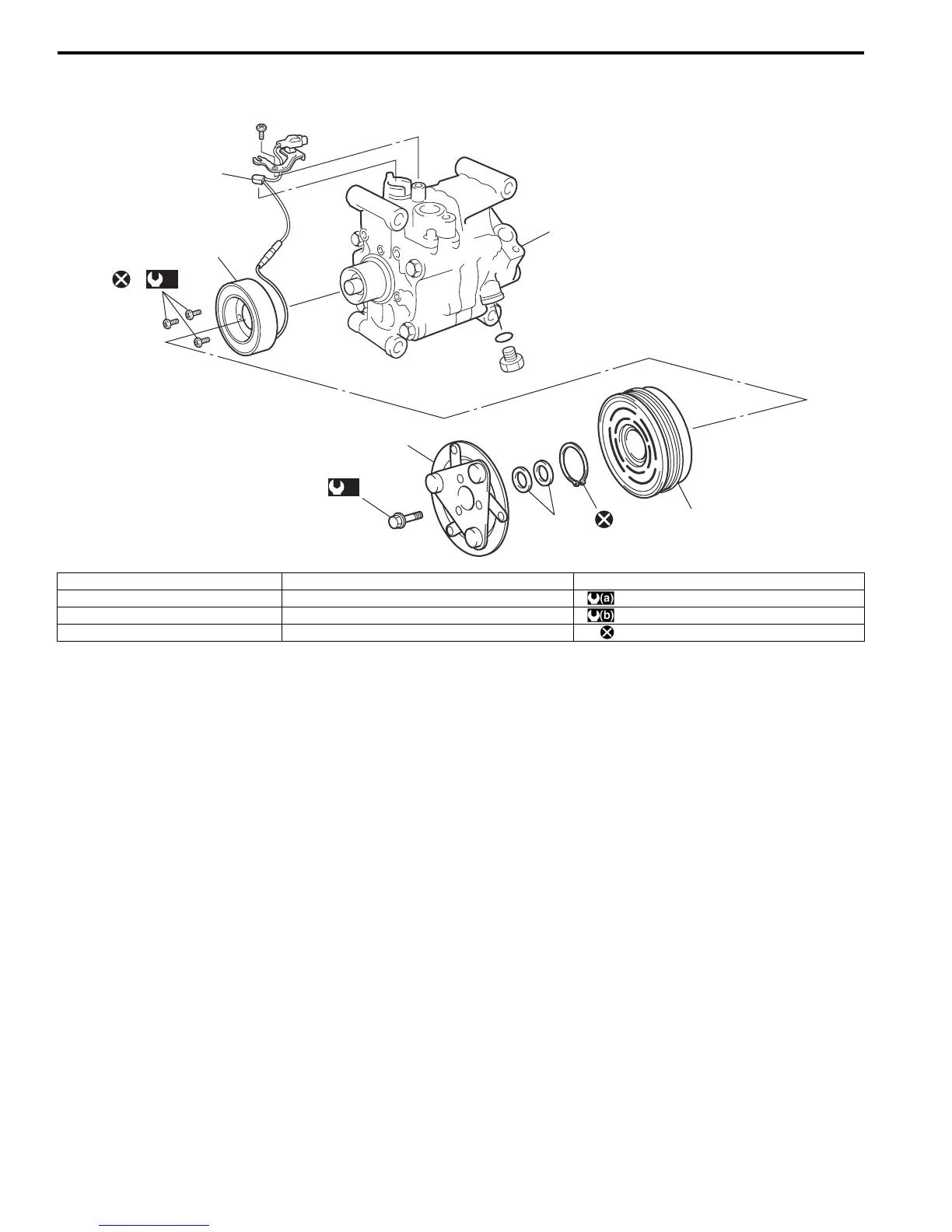

7B-75 Air Conditioning System:

Magnet Clutch Components for M16 Engine Model

S5JB0A7206044

(b)

(a)

I5JB0A720060-01

1. Armature plate bolt 5. Shim(s) 9. Thermal switch

2. Armature plate 6. Magnet clutch coil : 15 N⋅m (1.5 kgf-m, 11.0 lb-ft)

3. Circlip 7. Compressor body assembly : 4.9 N⋅m (0.49 kgf-m, 4.0 lb-ft)

4. Magnet clutch 8. Magnet clutch coil bolt : Do not reuse.
