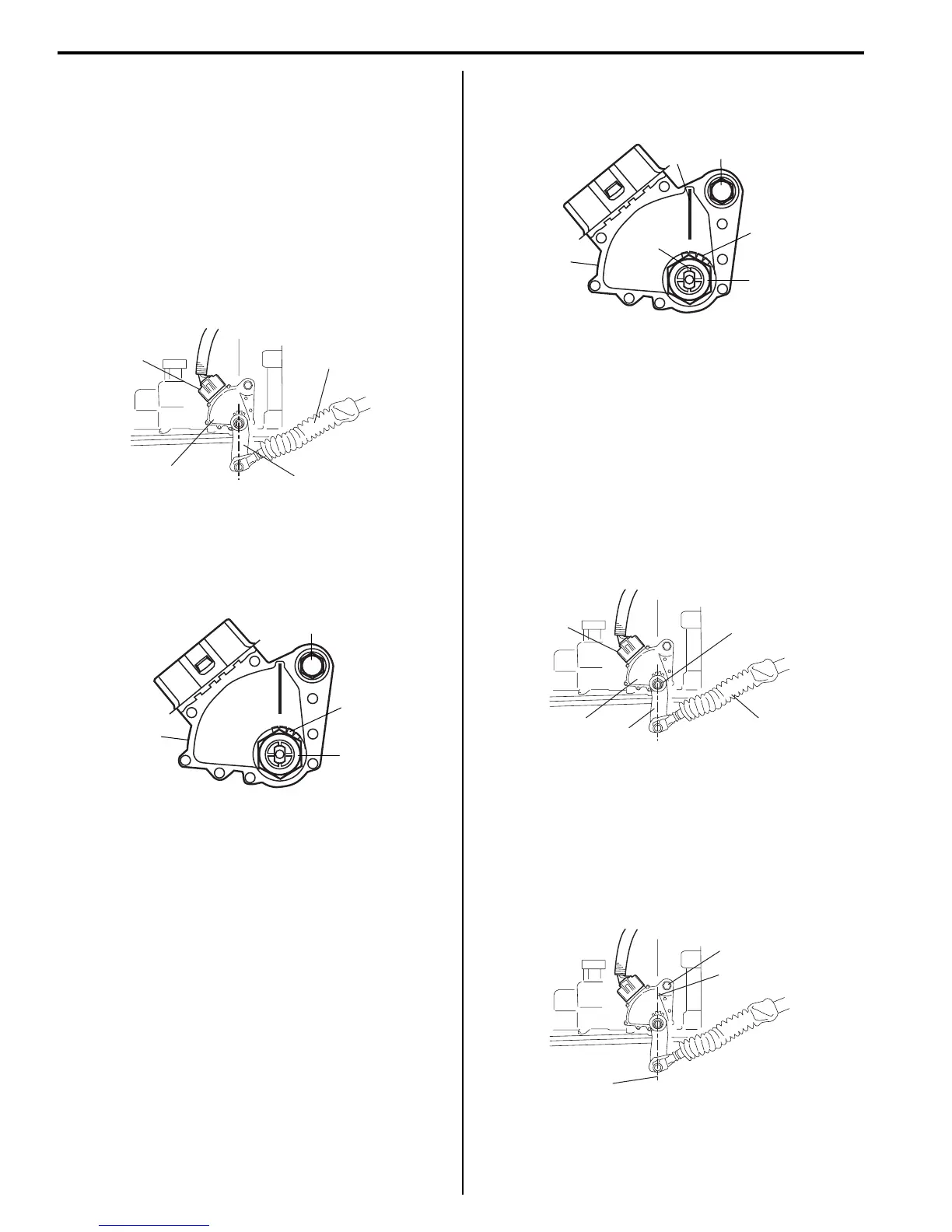

5A-84 Automatic Transmission/Transaxle:
Transmission Range Sensor Removal and
Installation
S5JB0A5106049
Removal
1) Disconnect negative cable at battery.
2) Hoist vehicle.
3) Disconnect transmission range sensor connector
(1).
4) Disconnect select cable (2) from manual select lever
(3).
5) Remove manual select lever (3) from transmission
range sensor (4).
6) Unbend bend parts of lock washer (1), then remove
manual shift shaft nut (2), lock washer (1) and
grommet.
7) Remove transmission range sensor (3) by removing
sensor bolt (4).
Installation
1) Install transmission range sensor (3) and tighten
sensor bolt (4) temporarily.
2) Install grommet, lock washer (1) and manual shift
shaft nut (2).
Tighten nut to specified torque. After tightening it,
bend claws of lock washer (1).
Tightening torque
Manual shift shaft nut (a): 12.5 N·m (1.25 kgf-m,
9.0 lb-ft)
3) After turning manual shift shaft fully
counterclockwise, turn it clockwise by 2 notches and
set it to “N” range.
4) With “N” reference line (5) on range sensor and shaft
center (6) aligned, tighten transmission range sensor
bolt (4) to specified torque.
Tightening torque
Transmission range sensor bolt (b): 5.3 N·m (
0.53 kgf-m, 4.0 lb-ft)
5) Install manual select lever (3) to transmission range
sensor (4).
Tighten nut to specified torque.
Tightening torque
Manual select lever nut (a): 12.5 N·m (1.25 kgf-
m, 9.0 lb-ft)
6) Connect select cable (2) to manual select lever (3).
7) Connect transmission range sensor connector (1).
8) Connect negative cable at battery.
9) Adjust select cable referring to “Select Cable
Adjustment: ”
Transmission Range Sensor Inspection and
Adjustment
S5JB0A5106050
1) Manual select lever to “N” range.
2) Check that center line (2) on manual shift and “N”
reference line (1) on sensor are aligned. If not,
loosen sensor bolt (3) and align them.
