5A-88 Automatic Transmission/Transaxle:

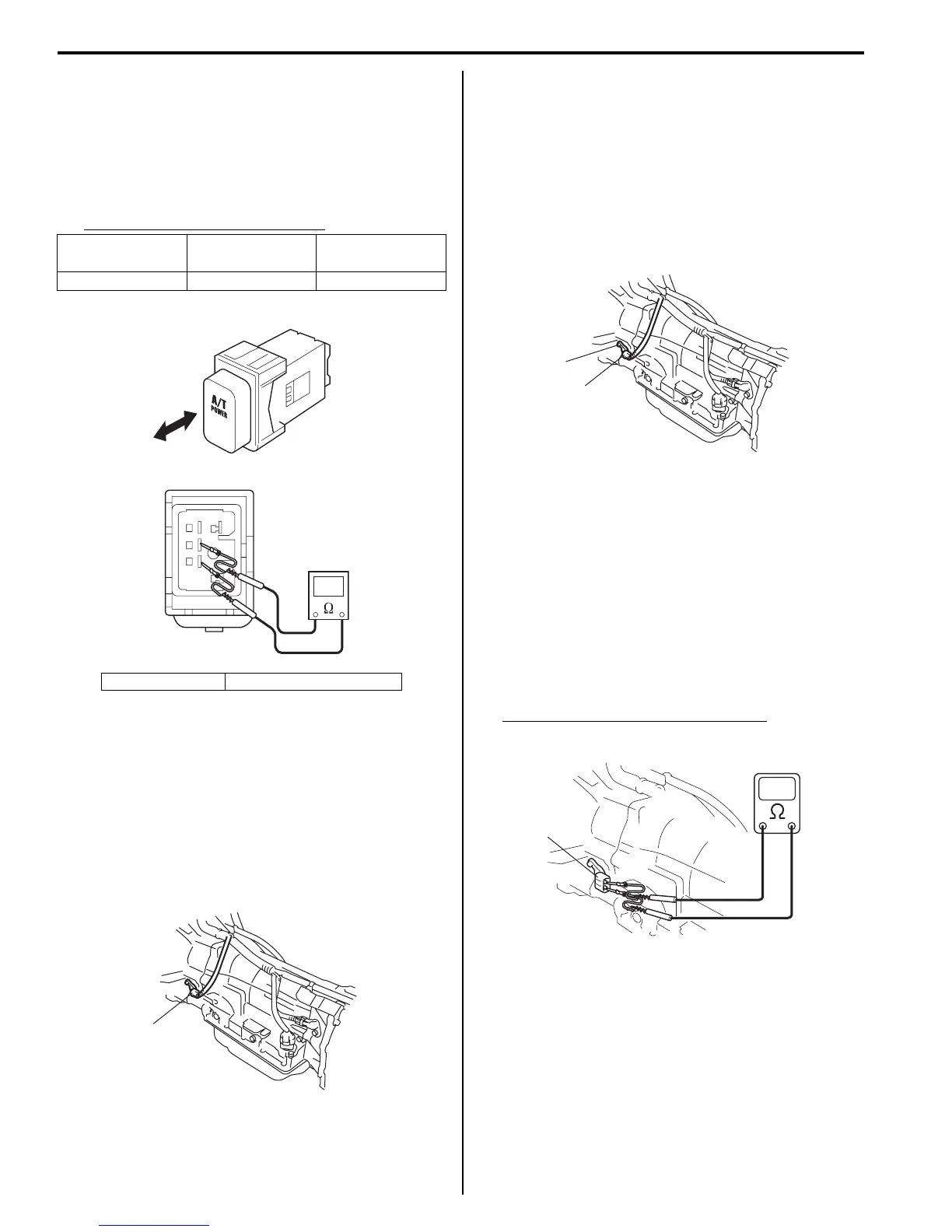

Mode Select Switch Inspection
S5JB0A5106053
1) Pull out mode select switch from front center console
box.
2) Disconnect mode select switch connector.
3) Check continuity between mode select switch
terminals.
Mode select switch specification
Input Shaft Speed Sensor Removal and
Installation
S5JB0A5106054
Removal
1) Disconnect negative cable at battery.
2) Hoist vehicle.
3) Disconnect input shaft speed sensor connector.
4) Remove input shaft speed sensor (1) from
transmission.
Installation
1) Check that sensor is free from any metal particles
and damage.
2) Apply A/T fluid to new O-ring and then install input
shaft speed sensor (1) to transmission.
Tighten sensor bolt to specified torque.
Tightening torque
Input shaft speed sensor bolt (a): 7 N·m (0.7 kgf-
m, 5.0 lb-ft)
3) Connect input shaft speed sensor connector.
4) Lower hoist.
5) Connect negative cable at battery.
Input Shaft Speed Sensor Inspection
S5JB0A5106055
1) Disconnect negative cable at battery.
2) Hoist vehicle.
3) Disconnect input shaft speed sensor connector.
4) Check input shaft speed sensor (1) for resistance
between terminals of sensor.
Input shaft speed sensor resistance
Standard: 560 – 680 Ω (at 20 °C (68 °F))
Mode select
switch
Normal position Power position
Continuity No continuity Continuity
A: Push B: Push again to release
B
A
I5JB0A510042-01
1
I5JB0A510043-01
1
(a)
I5JB0A510044-01
1
I5JB0A510045-01
