9A-35 Wiring Systems:
L: Luggage compartment light wire
R: Fuel pump wire

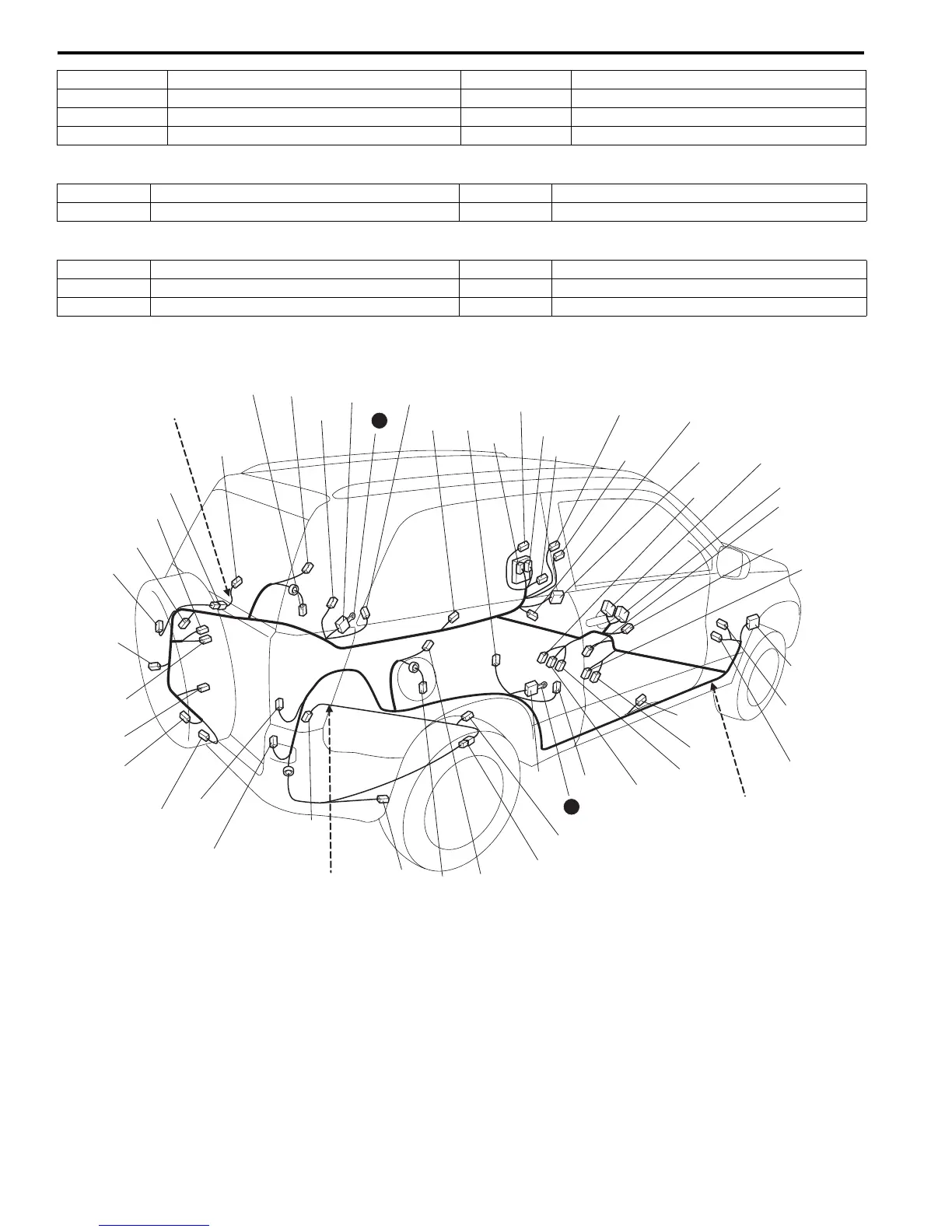

L: Floor harness, Luggage compartment light wire, Rear height sensor wire / R: Fuel pump wire (LHD, 3dr)
L27/N Instrument panel harness (To G72) L63/N Rear speaker (R)
L28/N Instrument panel harness (To G73) L64/N Rear speaker (L)
L29/YEL Instrument panel harness (To G55)
No./Color Connective position No./Color Connective position
No./Color Connective position No./Color Connective position
L68/N Floor harness (To L19) L69/N Luggage compartment light
No./Color Connective position No./Color Connective position
R01/GRY Floor harness (To L15) R03/N Fuel pump sub gauge
R02/GRY Fuel pump and gauge
L44
L33
L06
L04
L05
L25
L32
L56
L57
L31
(TO J09)
L28
(TO G72)
L29
(TO G55)
L08
(TO G07)
L09
(TO G08)
L01
(TO G80)
L07
(TO J01)
L03
(TO E79)
L27
(TO G72)
L
L59
L30
{
L15
R01
{
L19
L68
L23
L36
L11
L12
L41 L64
L69
L47
L48
L26
L43
L54
L53
L38
L35
L10
L14
R02
R03
L20
L52
Fuel pomp wire
L42
(TO O01)
Luggage compartment
light wire
L63 L18
L34
L22
18
19
I5JB0A910918-01
