9C-3 Instrumentation / Driver Info. / Horn:

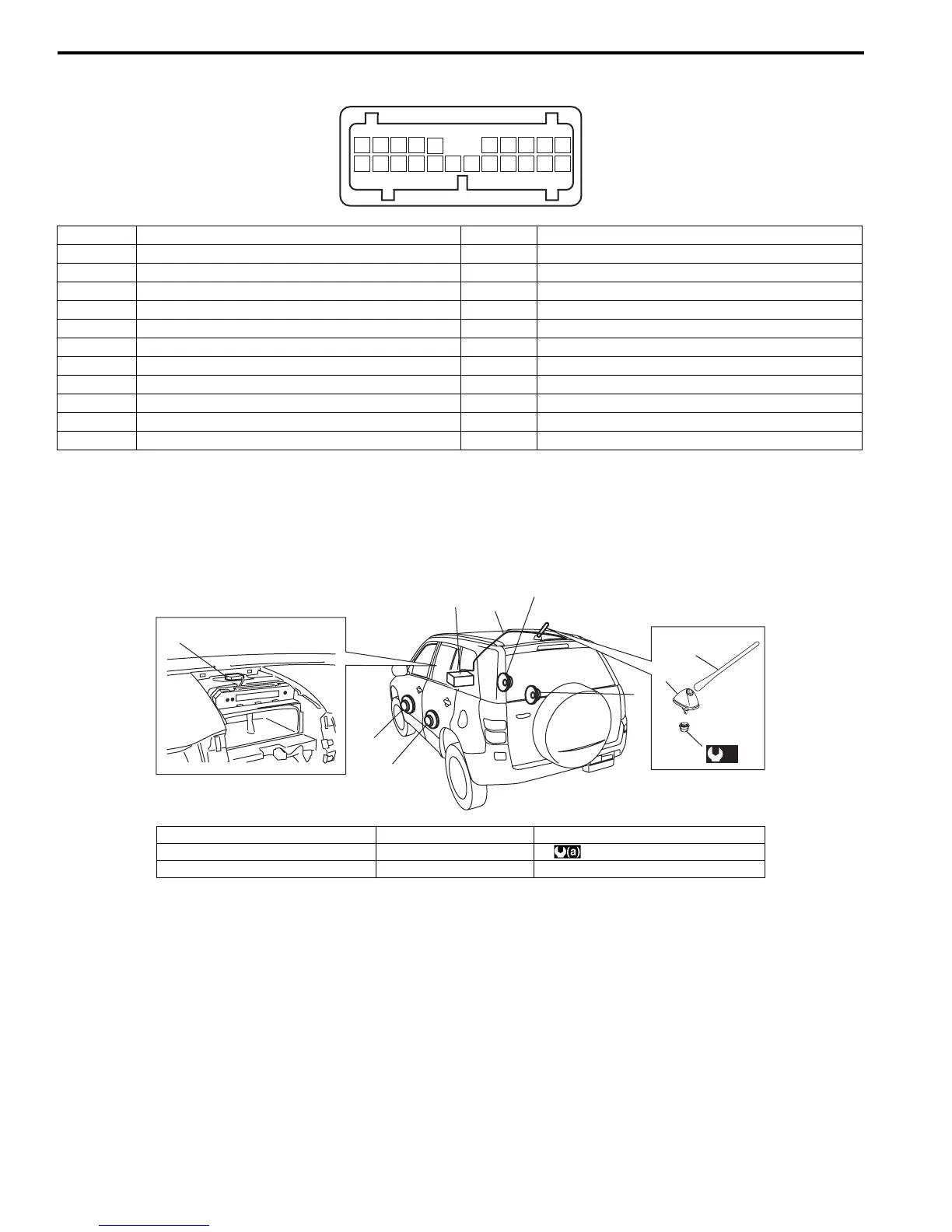

Terminal arrangement of coupler viewed from combination meter side
Component Location
Audio System Component Location
S5JB0A9303001
Terminal Circuit Terminal Circuit
G28-1 — G28-12 To headlight auto leveling control module
G28-2 — G28-13 Power source
G28-3 — G28-14 Backup power source
G28-4 — G28-15 GND
G28-5 — G28-16 To SDM (Air bag warning lamp signal)
G28-6 — G28-17 —
G28-7 — G28-18 —
G28-8 CAN communication line (Active Low Signal) G28-19 To turn signal light switch (turn L)
G28-9 — G28-20 To turn signal light switch (turn R)
G28-10 CAN communication line (Active High Signal) G28-21 —
G28-11 To rear fog light switch G28-22 To illumination cancel switch
17 16 11
1
22
10
21
9
20
8
19
7
18
6
15
5
14
4
13
3
12
2
I5JB0A930002-01
2
1
4
3
3
6
5
2
(a)
7
I5JB0A930003-01
1. Radio or navigation assembly 4. Antenna feeder 7. GPS antenna (if equipped)
2. Front speaker 5. Antenna : 10 N⋅m (1.0 kgf-m, 7.5 lb-ft)
3. Rear speaker 6. Antenna base
