9F-5 Security and Locks:

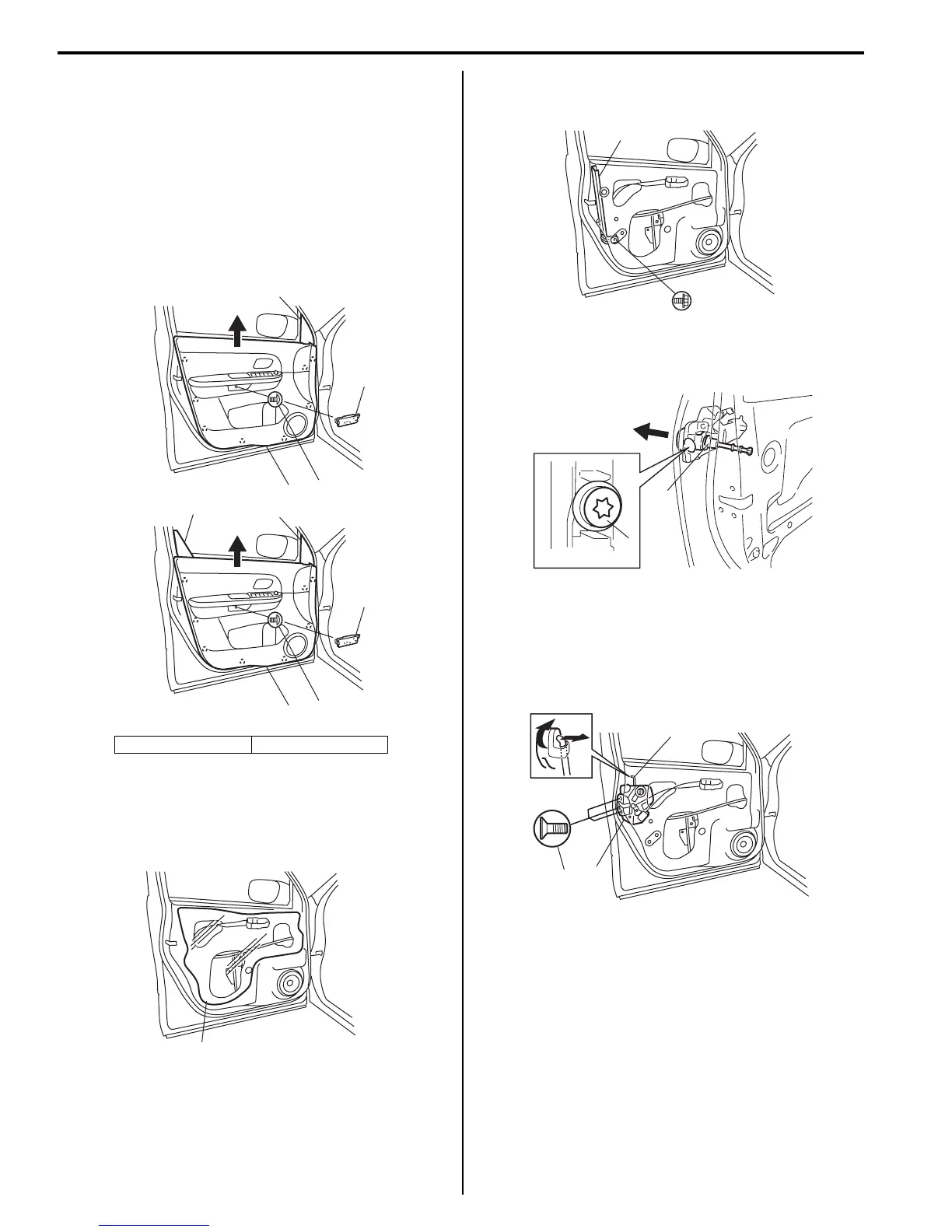

Front Door Lock Assembly Removal and
Installation
S5JB0A9606002
Removal
1) Remove door mirror trim (1), front door inner garnish
(2) (3 door model only) and door trim screw cover
(3).
2) Remove door trim (4) after removing door trim screw
(5) and clips.
3) Disconnect door illumination lamp lead wire and
power window switch and mirror switch lead wire at
coupler.
4) Remove door sealing cover (1).
5) Raise window all the way up.
6) Remove door sash (1).
7) Remove key cylinder mounting bolt (1), and then
remove key cylinder (2).
8) Disconnect door opening control rod (1) from outside
handle.
9) Disconnect door lock motor lead wire at coupler.
10) Remove door latch screws (2) and remove door lock
assembly (3).
[A]: 5 door model [B]: 3 door model
1
3
5
4
2
1
3
5
4
[A]
[B]
I5JB0A950010-01
1
I5JB0A950011-01
1
I5JB0A960003-01
1
2
I4RS0B960005-01
3
2
1
I5JB0A960004-01
