9F-9 Security and Locks:
For rear end door

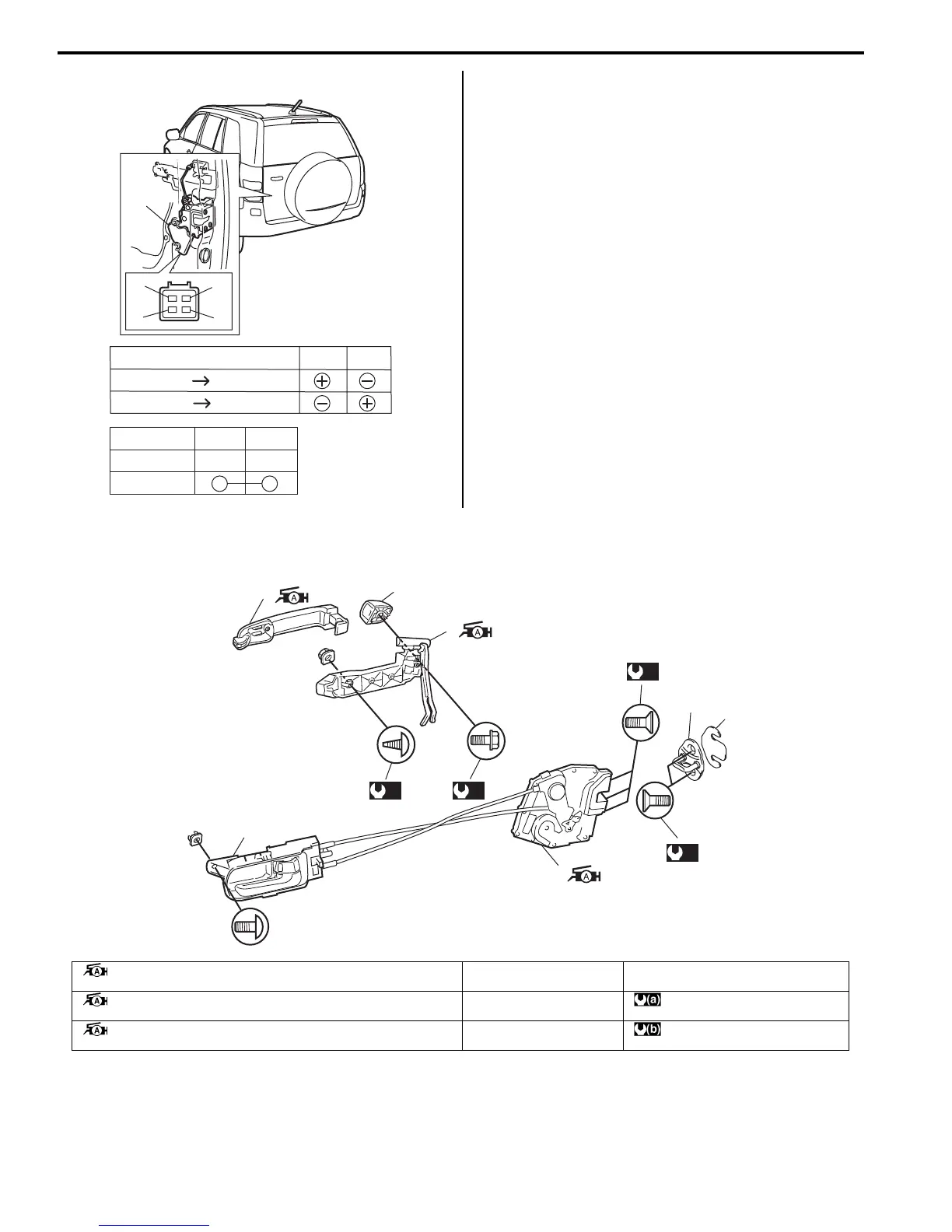

Rear Door Lock Assembly Components
S5JB0A9606007
Lock Unlock
Unlock Lock
Terminals ba
Lock
Unlock
cdTerminals
b
a
c
d
I5JB0A960011-01
(a)
(a)(a)
(b)
1
7
2
6
3
4
5
I5JB0A960012-03
1. Outside handle
: Apply lithium grease 99000-25010 to sliding part.
4. Latch striker 7. Out side handle cap
2. Outside handle frame
: Apply lithium grease 99000-25010 to sliding part and spring.
5. Shim : 5.0 N⋅m (0.5 kgf-m, 4.0 lb-ft)
3. Rear door latch assembly
: Apply lithium grease 99000-25010 to sliding part.
6. Inside handle bezel : 10 N⋅m (1.0 kgf-m, 7.5 lb-ft)
