Fuel System: 1G-13
• After installation, with engine OFF and ignition switch
ON, check for fuel leaks around fuel line connection.
Fuel Injector Inspection
S5JB0A1706008
WARNING
!
Before starting the following procedure, be
sure to observe “Precautions on Fuel System
Service: ” in order to reduce the risk or fire
and personal injury.

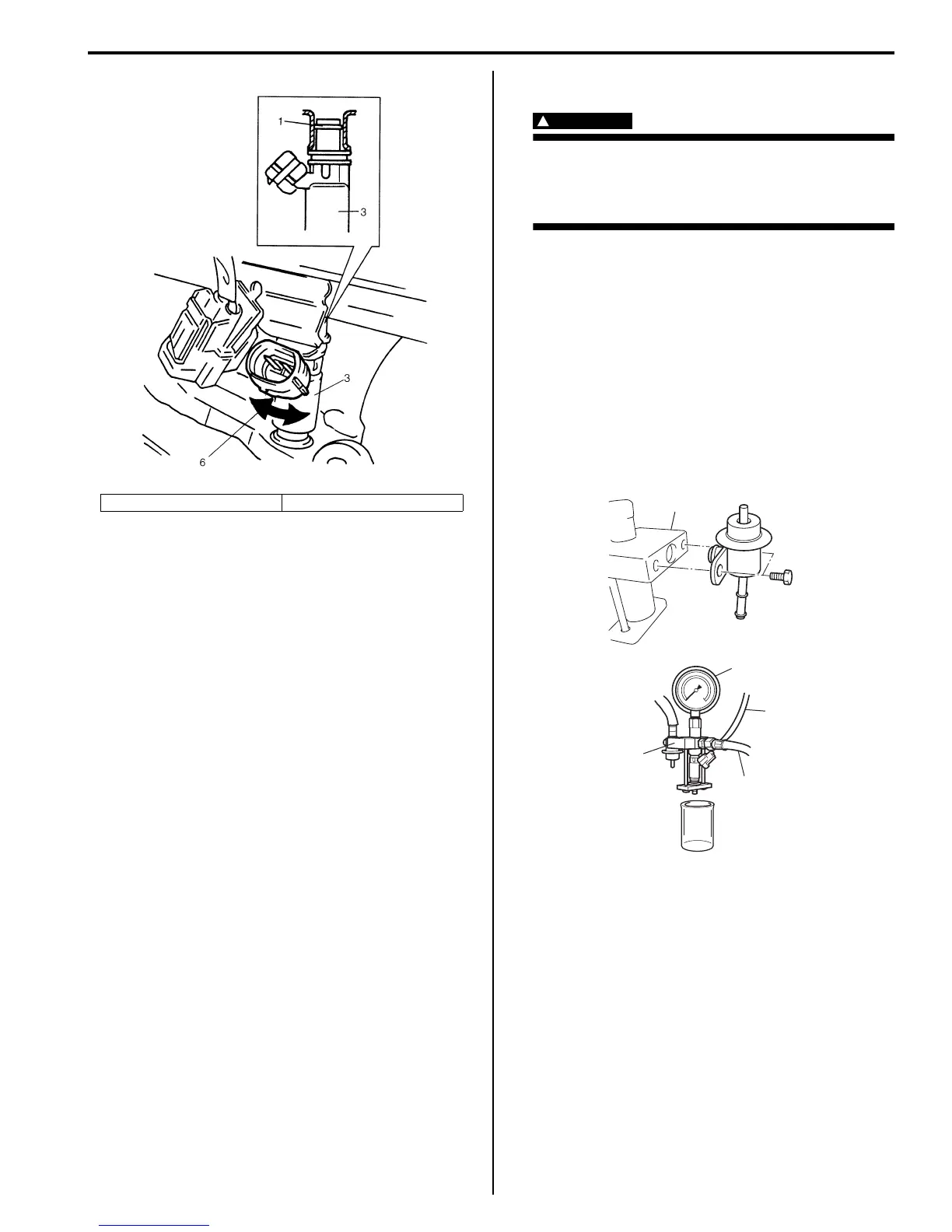

1) Install injector to special tool (injector checking tool).
2) Install pressure regulator to special tool (injector
checking tool).
Special tool
(A): 09912–58421
(B): 09912–58442
3) Connect special tools (hose and attachment) to fuel
feed pipe (1) of vehicle.
4) Connect special tool (test lead) to injector.
Special tool
(C): 09930–88530
[A]: For M16 engine model [B]: For J20 engine model
I5JB0A171008-02
A
B
C
1
A
I5JB0A170004-02
