8B-64 Air Bag System:
DTC B1054 / B1058: Driver / Passenger Pretensioner Initiator Circuit Short to Power Circuit
S5JB0A8204029
Wiring Diagram
Refer to “DTC B1051 / B1055: Driver / Passenger Pretensioner Initiator Circuit Resistance High: ”.
CAUTION
!
Be sure to observe instructions under CAUTION in “Air Bag Diagnostic System Check Flow”.
DTC Will Set when
The voltage measured at driver or passenger seat belt pretensioner initiator circuit is above a specified value for
specified time.
Flow Test Description
Step 1: Check if malfunction is in seat belt pretensioner.
Step 2: Check seat belt pretensioner initiator circuit. (Between “L29” and “L12” or “L29” and “L36”)
Step 3: Check seat belt pretensioner initiator circuit. (Between “G55” and “G47”, “L12” and “L33” or “L36” and “L33”)
DTC Troubleshooting
Step Action Yes No

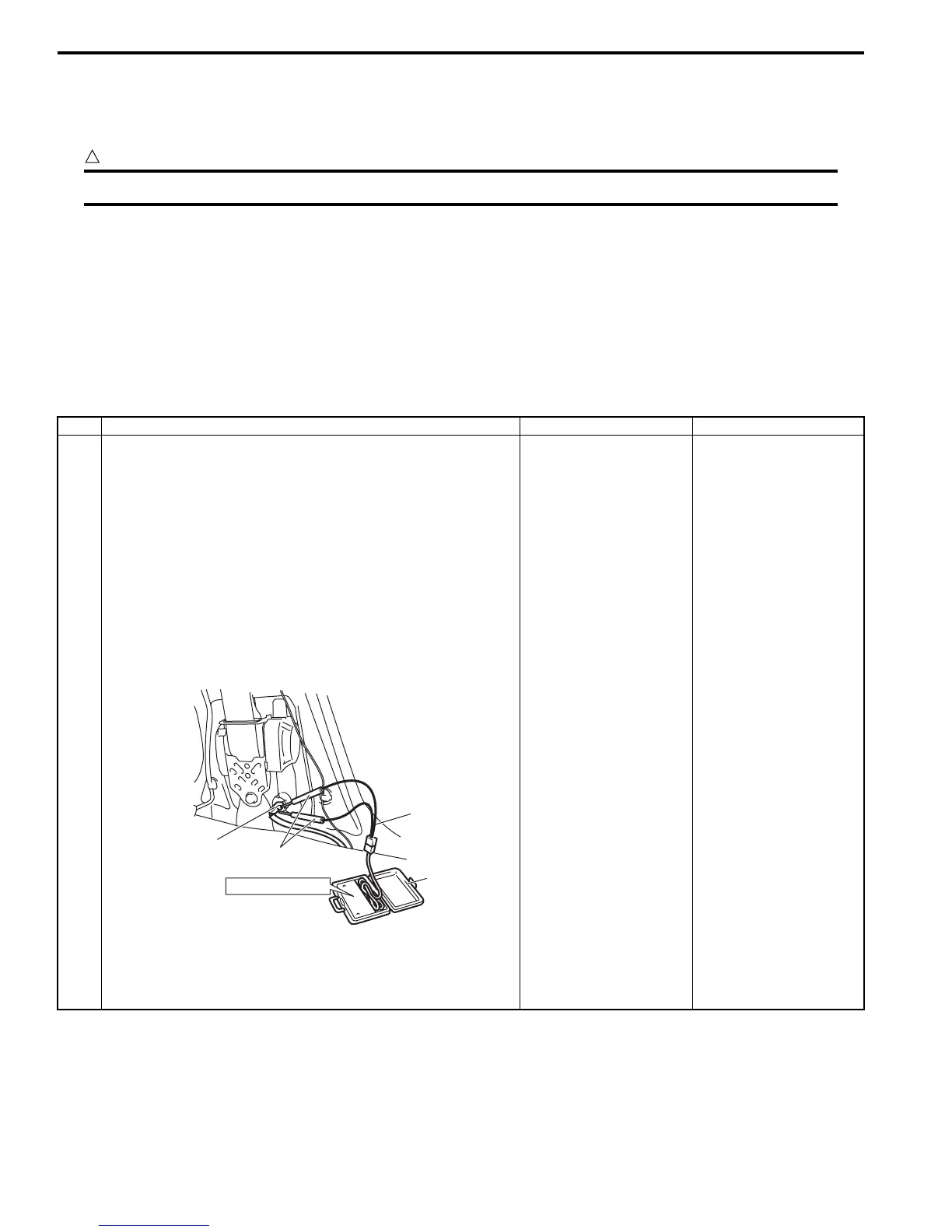

1 1) With ignition switch OFF, remove center pillar lower trim
of driver or passenger side and disconnect seat belt
pretensioner connector “L12” and “L36” (1).
2) Check proper connection to seat belt pretensioner at
terminals in “L12” or “L36” connector.
3) If OK, then connect special tools (A), (B) and (C) to “L12”
or “L36” connector disconnected in Step 1).
Special tool
(A): 09932–76010
(B): 09932–75010
(C): 09932–78310
4) Check SDM DTC.
With ignition switch ON, is DTC B1054 or B1058 still
indicated?
Without side-air bag and
curtain-air bag: go to
Step 2.
With side-air bag and
curtain-air bag: go to
Step 3.
Turn ignition switch
OFF. Replace seat belt
pretensioner referring to
“Front Seat Belt
Removal and
Installation: in Section
8A”.
(C)
(A)
(B)
“L12”, “L36”
STEERING WHEEL
I5JB0A820039-01
