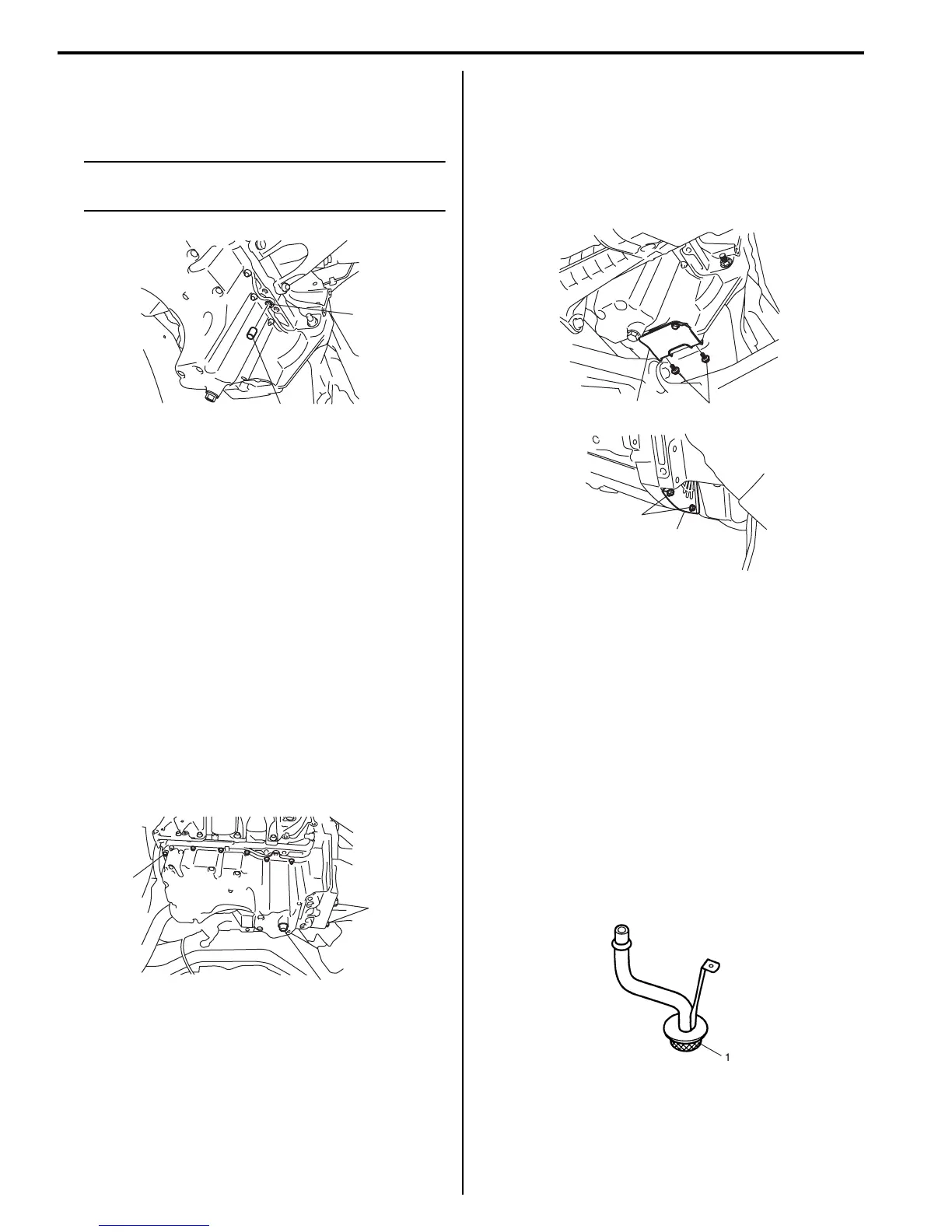

1E-6 Engine Lubrication System: For M16A Engine with VVT
4) Install oil pan to cylinder block temporarily.
5) Insert knock pin (1) in hole (2) of oil pan in order to
locate oil pan precisely.
NOTE
Knock pin is available as a spare part (part
number: 04211–13189).
6) After fitting oil pan to cylinder block, run in securing
bolts and start tightening at the center: move wrench
outward, tightening one bolt at a time. Tighten bolts
and nuts to specified torque.
Tightening torque
Oil pan bolt and nut (a): 11 N·m (1.1 kgf-m, 8.0
lb-ft)
7) Install new gasket and drain plug to oil pan.
Tighten drain plug to specified torque.
Tightening torque
Oil pan drain plug (b): 35 N·m (3.5 kgf-m, 25.5 lb-
ft)
8) Tighten transmission to engine bolts to specified
torque.
Tightening torque
Transmission to engine bolt (c): 85 N·m (8.5 kgf-
m, 61.5 lb-ft)
9) Install clutch housing lower plate No.1 (1) and clutch
housing lower plate No.2 (2).
Tightening torque
Clutch housing lower plate No.1 bolt (a): 11 N·m
(1.1 kgf-m, 8.0 lb-ft)
Clutch housing lower plate No.2 bolt (b): 11 N·m
(1.1 kgf-m, 8.0 lb-ft)
10) Install front suspension frame referring to “Front
Suspension Frame, Stabilizer Bar and/or Bushings
Removal and Installation: in Section 2B”.
11) Install oil level gauge.
12) Refill engine with engine oil referring to “Engine Oil
and Filter Change: in Section 0B”.
13) Verify that there is no engine oil leakage and exhaust
gas leakage at each connection.
Oil Pan and Oil Pump Strainer Cleaning
S5JB0A1516003
• Clean sealing surface between oil pan and cylinder
block.
Remove oil, old sealant, and dust from sealing
surface.
• Clean oil pump strainer screen (1).
