Suzuki Grand Vitara 2005 Owner's Manual

Charging System: 1J-11

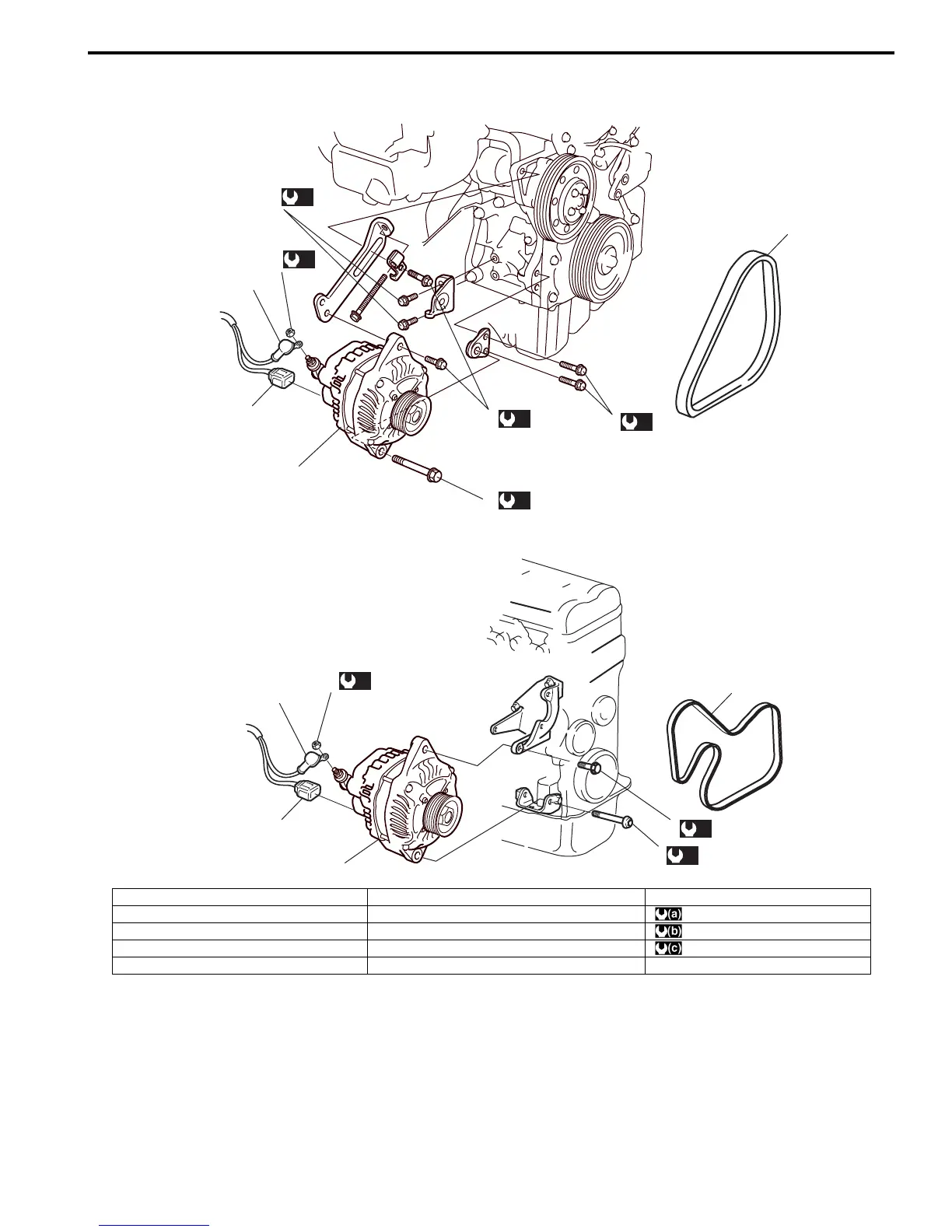

Generator Dismounting and Remounting
S5JB0A1A06006
[A]
[B]
(a)
(b)
(c)
(b)
(c)
7
1
8
2
9
6
4
8
(a)
3
1
7
2
9
6
5
3
(c)
(c)
I5JB0A1A0003-02
[A]: For M16 Engine 4. Generator adjusting bolt (For M16 Engine) 9. Generator
[B]: For J20 Engine 5. Generator mounting bolt (For J20 Engine) : 7.0 N⋅m (0.7 kgf-m, 5.0 lb-ft)
1. “B” terminal wire 6. Generator pivot bolt : 52.5 N⋅m (5.25 kgf-m, 38.0 lb-ft)
2. coupler 7. “B” terminal nut : 25 N⋅m (2.5 kgf-m, 18.5 lb-ft)
3. Water pump and generator drive belt 8. Generator blacket bolt
