Transfer: Non-Shift Type (Transfer without Shift Actuator) 3C-87

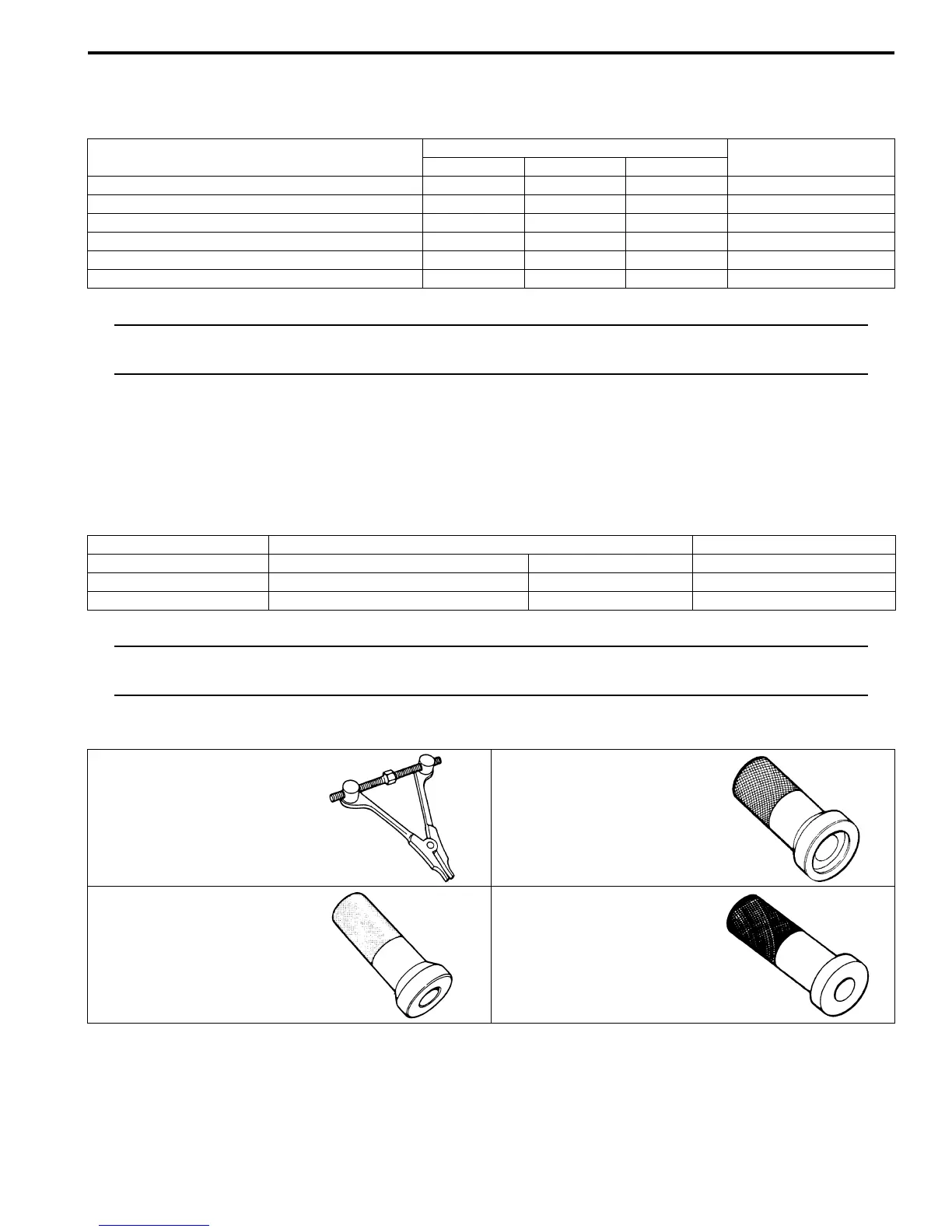

Specifications
Tightening Torque Specifications
S5JB0A3327001
NOTE
The specified tightening torque is also described in the following.
“Transfer Assembly Components: Non-Shift Type (Transfer without Shift Actuator)”
Reference:
For the tightening torque of fastener not specified in this section, refer to “Fastener Information: in Section 0A”.
Special Tools and Equipment
Recommended Service Material
S5JB0A3328001
NOTE
Required service material is also described in the following.
“Transfer Assembly Components: Non-Shift Type (Transfer without Shift Actuator)”
Special Tool
S5JB0A3328002
Fastening part
Tightening torque
Note
N⋅mkgf-mlb-ft
Input gear plate bolt 23 2.3 17.0 )
Rear case bolt 23 2.3 17.0 ) / )
Strainer bolt 10 1.0 7.5 )
Oil pump cover bolt 23 2.3 17.0 )
Differential lock shift lever case bolt 23 2.3 17.0 )
Differential lock shift lever case dowel bolt 23 2.3 17.0 )
Material SUZUKI recommended product or Specification Note
Grease SUZUKI Super Grease A P/No.: 99000–25010 ) / ) / )
Sealant SUZUKI Bond No.1217G P/No.: 99000–31260 ) / ) / ) / )
Thread lock cement Thread Lock Cement Super 1322 P/No.: 99000–32110 )
09912–34510 09913–70123
Case separator Bearing installing tool
)) / )
09913–76010 09913–85210
Bearing installer Bearing installer
) / ) / ) / ))
