CHASSIS 5-29

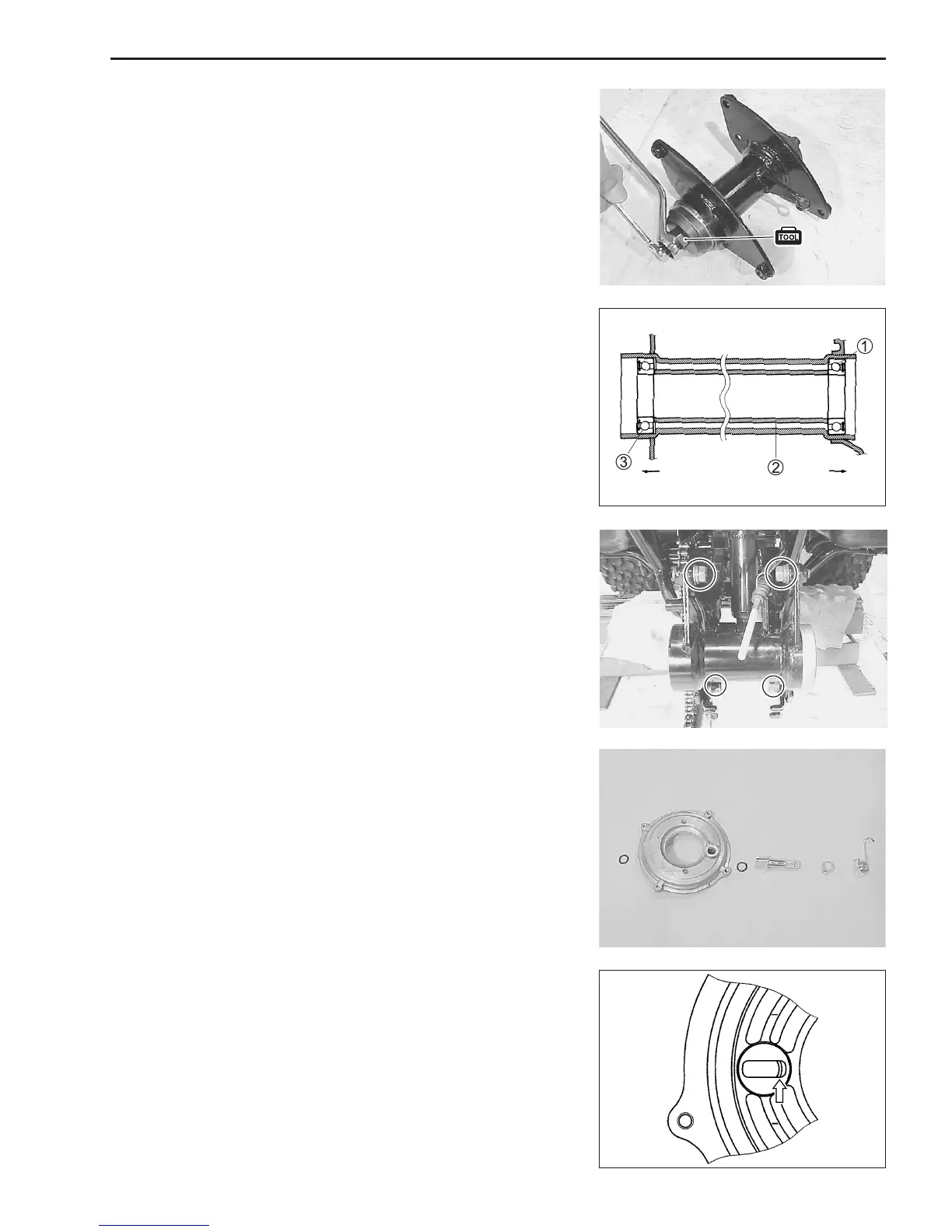

• Install the rear axle bearing using the special tool.
• Install the dust seals using the special tool.
% 09924-84510: Bearing installer set
NOTE:
Install the right side bearing 1 first, the spacer 2 and left side
bearing 3. Make sure the sealed side of the bearing face out-
ward.
• Tighten the rear axle housing bolts to the securely.
• Apply SUZUKI SUPER GREASE “A” to the rear brake cam shaft
and new O-rings.
For USA
& 99000-25030: SUZUKI SUPER GREASE “A”
For the others
& 99000-25010: SUZUKI SUPER GREASE “A”
• Install the new O-rings into the brake camshaft hole.
NOTE:
Face the groove on the cam shaft to the inside.
Left
Right
