3-10 ENGINE

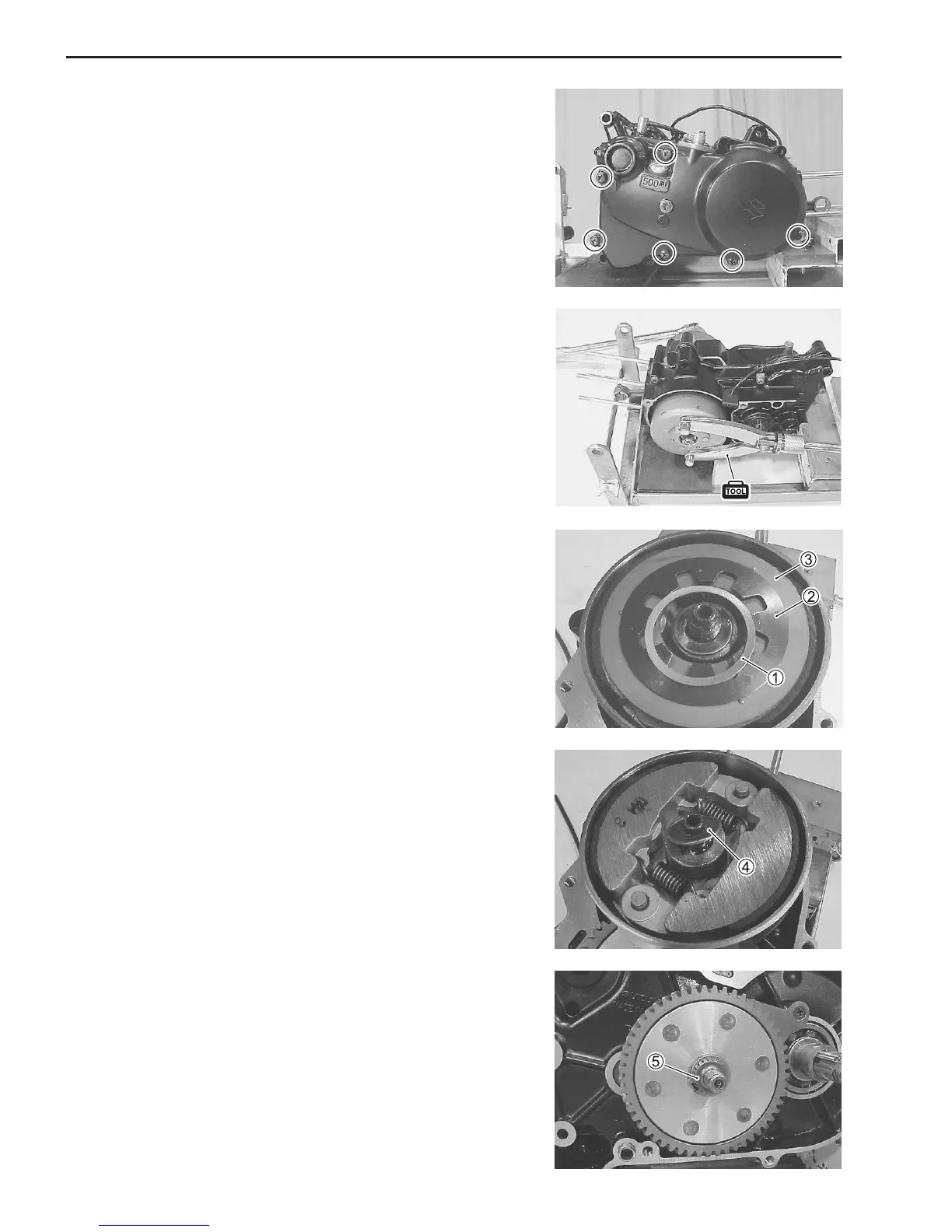

• Remove the clutch cover.
• Hold the generator rotor using the special tool.
• Remove the clutch sleeve nut.
' 09930-40113: Rotor holder
• Remove the thrust washer 1, wave washer 2 and clutch guide
plate 3.
• Remove the washer 4 and clutch shoe assembly, clutch drum.
• Remove the circlip 5.
• Remove the primary driven gear.
To Next Page
