CHASSIS 5-21

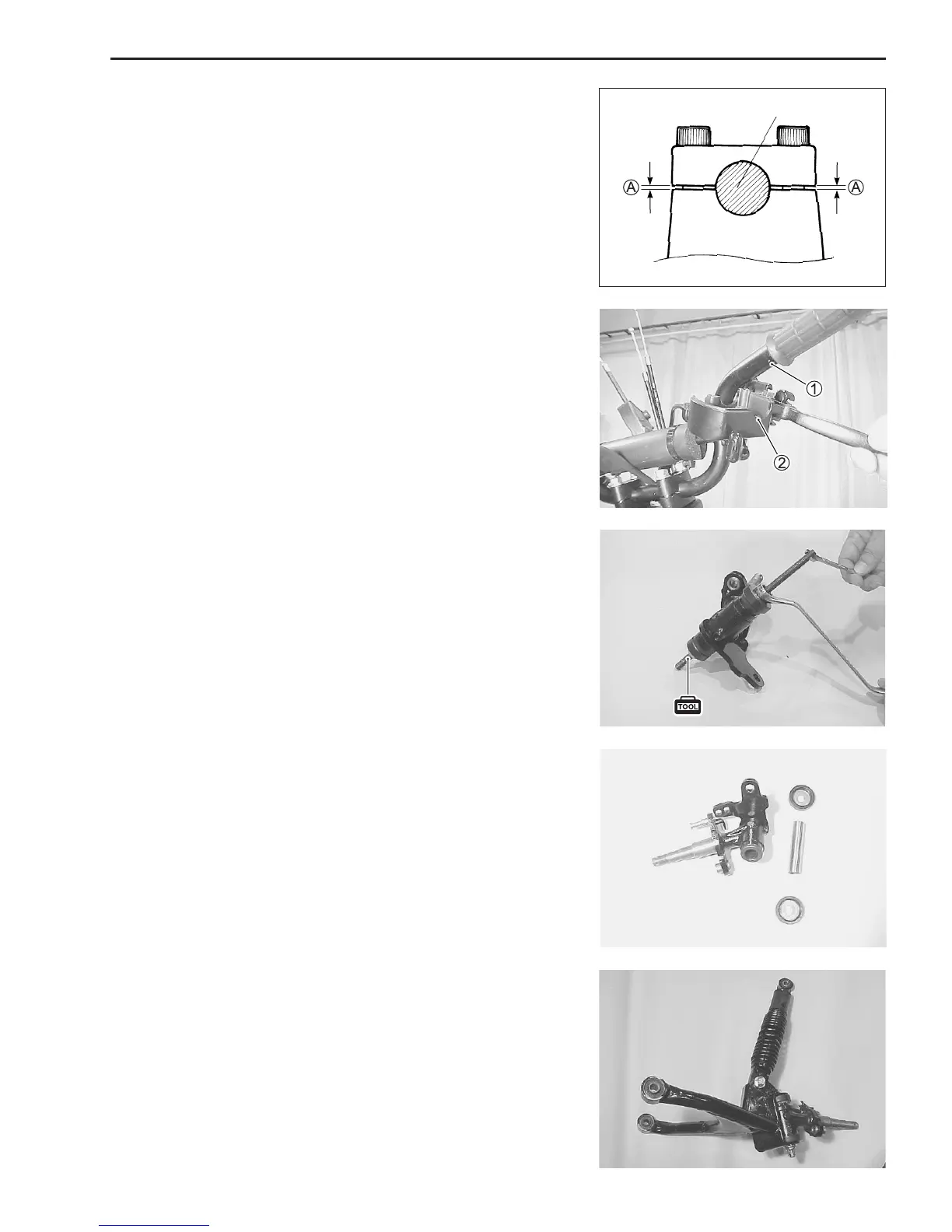

• Secure the each handlebar clamp in such a way that the clear-
ances A ahead and behind of the handlebars are equalized.
• Align the groove 1 on the handlebar with the lug 2 on the
handlebar switch.
FRONT SUSPENSION
• Install the knuckle arm bushing using the special tool.
% 09924-84510: Bearing installer set
• Apply SUZUKI SUPER GREASE “A” to the knuckle arm dust
seals.
• Apply SUZUKI SUPER GREASE “A” to the knuckle arm bush-
ings and install the spacer and the dust seals.
For USA
& 99000-25030: SUZUKI SUPER GREASE “A”
For the others
& 99000-25010: SUZUKI SUPER GREASE “A”
• Tighten the front shock absorber lower nut to the specified
torque.
• Tighten the knuckle arm bolt to the specified torque and install
a new cotter pin.
! Front shock absorber lower nut:
29 N
.
m (2.9 kgf
.
m, 21 lb-ft)
! Knuckle arm nut: 50 N
.
m (5.0 kgf
.
m, 36 lb-ft)
Handlebars
