5. Settings
5.1. Notice for Settings
WX Navi software send the control command to WX-7000, however the values depend WX-7000
specification.
Please read WX-7000 Instruction Manual as well.
5.2. System and Channel Settings

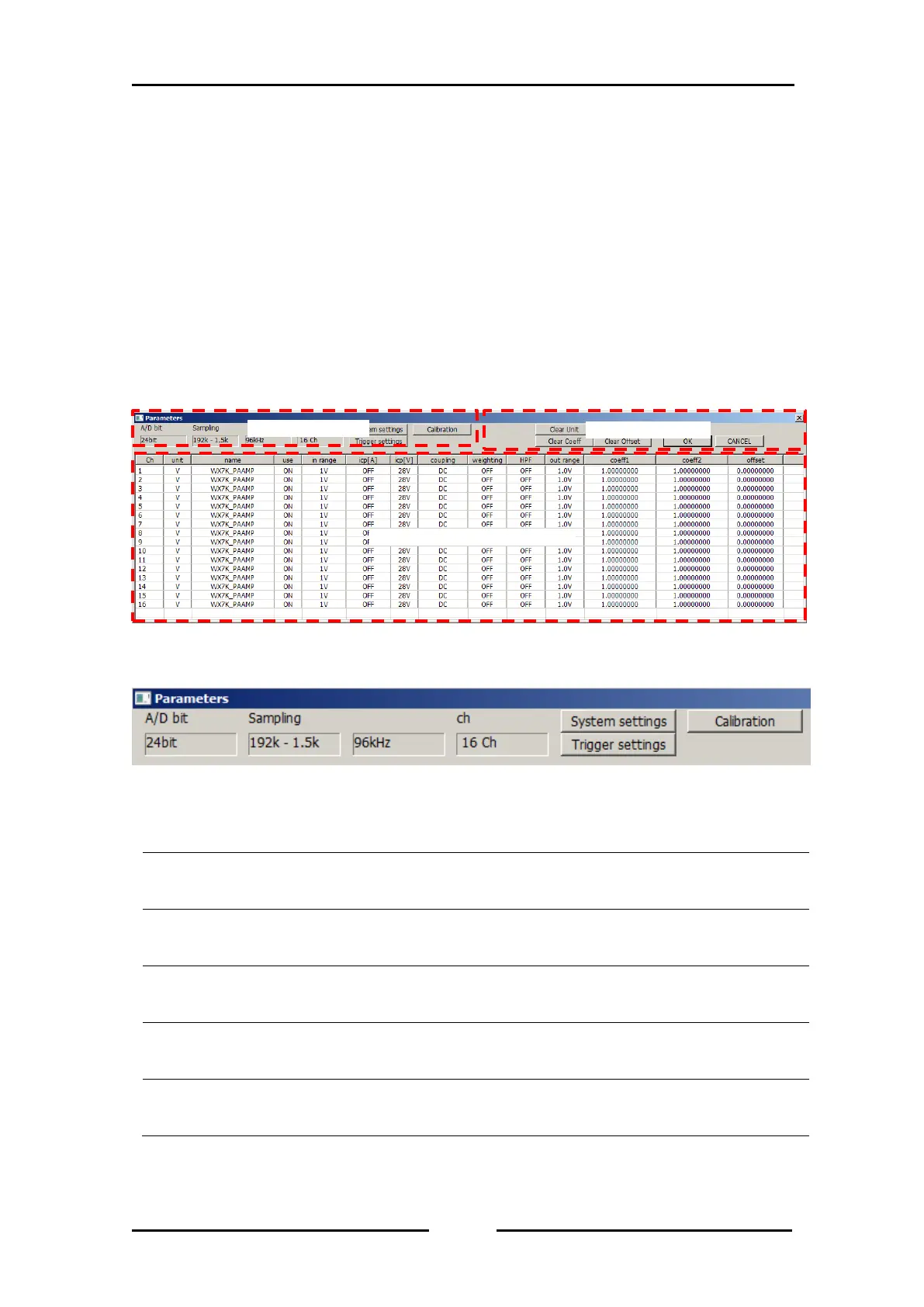

Following dialog appears by selecting “System and Channels”.
5.2.1. Upper Left Part
Show AD bit which is set.
Click System settings button to change AD bit.
Show Sampling Frequency and series which are set.
Click System settings button to change Sampling.
Show selected channels.
Click System settings button to change selected channels.
System settings dialog appears and to set WX-7000 system settings.
(Please refer to 5.3 System settings)
Trigger setting dialog appears and to set trigger conditions.
(Please refer to 5.4.5 Level trigger settings)
Calibration will start by pushing this button.
(Please refer to 7.3 Calibration)
Each Channels Settings List
To Next Page
