5.4.5. Level Trigger

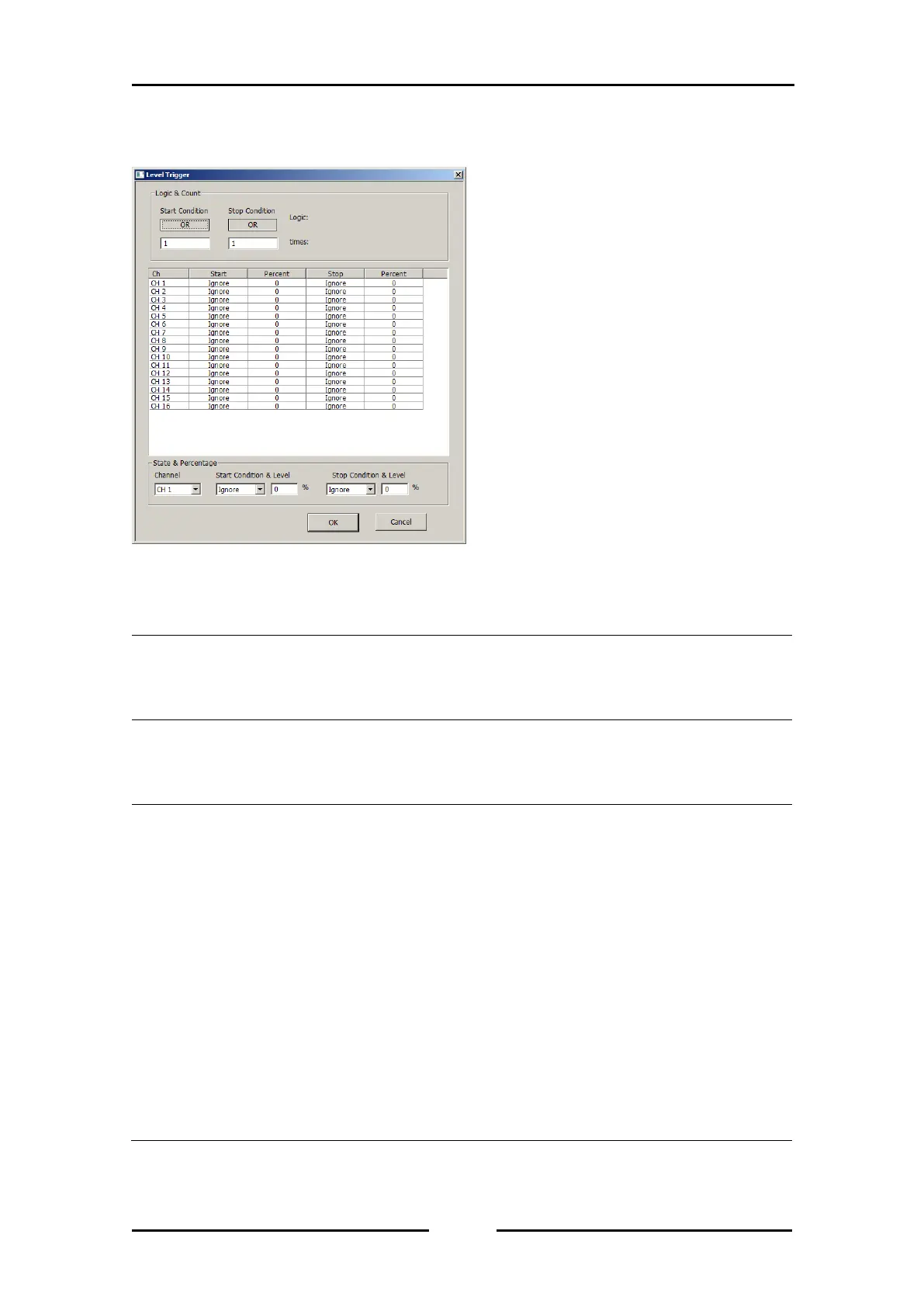

To specify the details of the level trigger, click Level Trig – Property in Trigger dialog.
When multiple channels are monitored for Start and Stop, specify
whether these are combined using a logical AND or logical OR.
Number of times
condition is satisfied
Specifies how many times a condition is regarded as having been
established when a condition specified above (including the logical
operator) is satisfied multiple times.
In the list of channels, click the desired channel. Alternatively,
select the channel from the drop-down list box in the lower left of
the window.
Condition:
None: The channel is not used for the level trigger.
Up: The condition is regarded as having been satisfied when the
input signal crosses from less than the specified level to a level that
is higher.
Down: The condition is regarded as having been satisfied when the
input signal crosses from a higher than specified level to one that is
lower.
Level :
The full scale of the specified input range is set at 100% on both
the plus and minus sides. You set the monitoring level for these in
the range from -99% to +99%.
