Teac WX-7000 Instruction Manual

65
10.3. Connection check
This section explains how to check the synchronization cable connection before you operates
WX-7000 recorders in synch.
10.3.1. Starting the connection check
Connection check can be performed on a PC. If you have two PC’s, you can run the check on
either one.

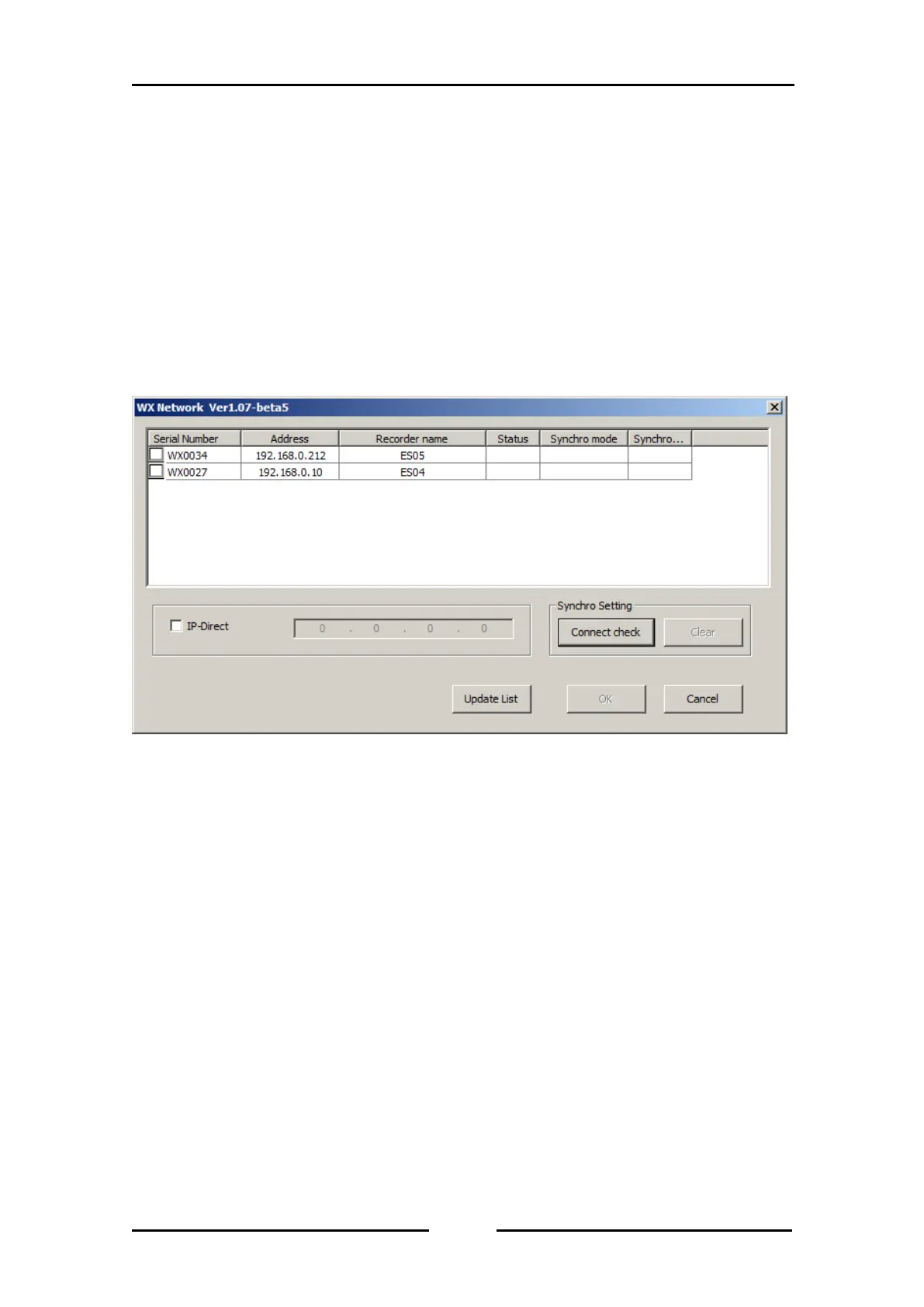

Start WX Navi and two WX-7000 recorders will be detected. And then WX Network dialog will
show up.
Click on the Connect check button and WX Navi will start searching for a WX-7000 in master mode
and then issue the connection check commands to it.
A few seconds later, the connection check will complete and the following information will be
shown.
