5.2.4. Channel Property Window

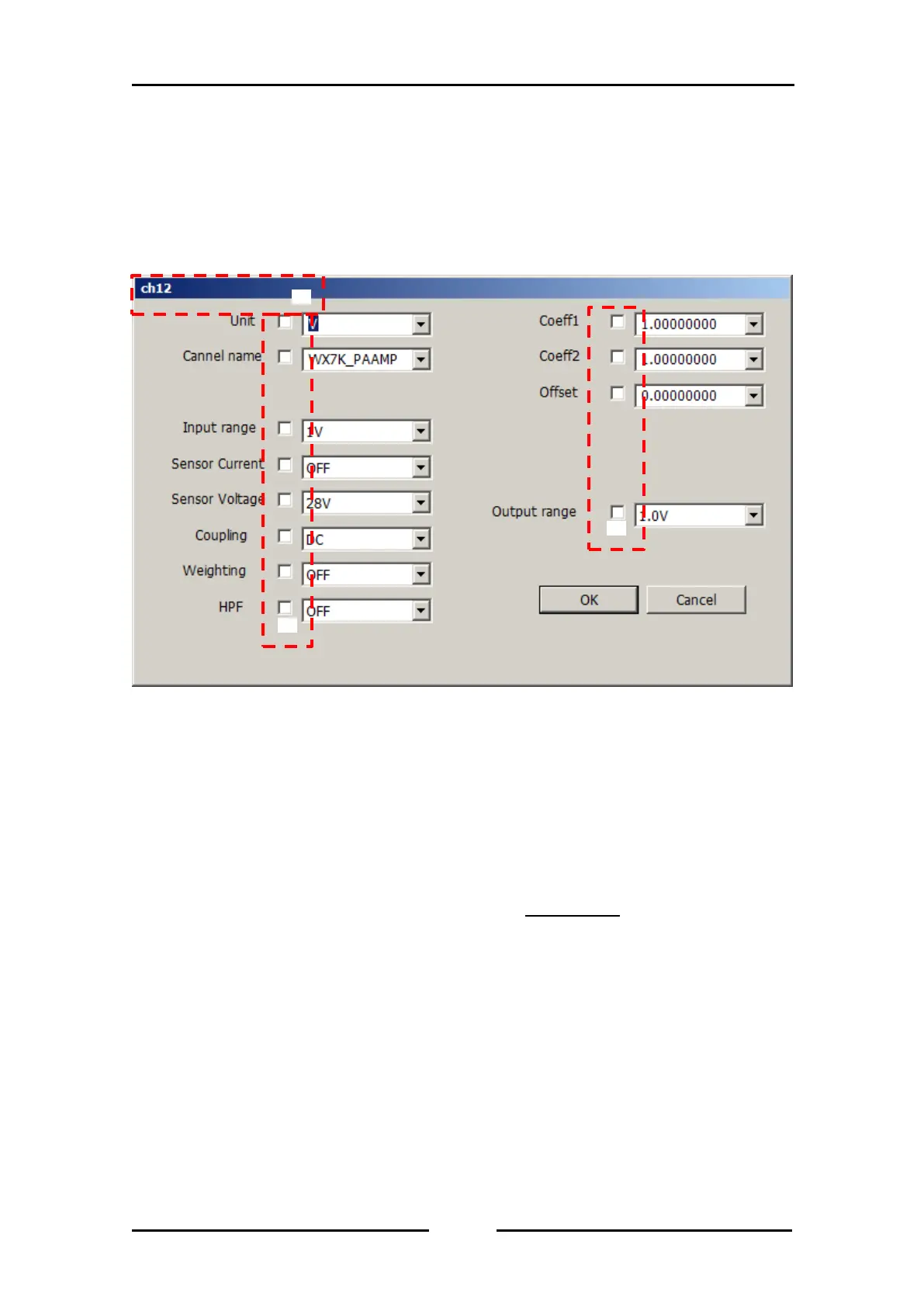

Channel Property can be set on following dialog.
[1]-Part shows the target channel(s) to set. This example shows channel 12 is target channel.
[2]-Parts check box is checked, the parameter will be set to changed parameter. If there is no
check, the parameter is not changed.
Note 1: When several channels are selected, channel name are not able to change.
Note 2: Sensor voltage is same on each expansion unit. So it will be changed, if the voltage of any
channels on same expansion unit are changed, voltage will be changed to same voltage
which is changed.
Note 3: WX-7000 recording unit itself has only one coefficient. WX Navi sends parameter which is
calculated by following formula.
(
πΆππππππππππ‘ ππ ππβ7000
)
=
πΆππππππππππ‘ 2
πΆππππππππππ‘ 1
Parameters which [Coeff1] and [Coeff2] are excluded are same with WX-7000 itself.
Please refer to WX-7000 instruction Manual.
Note 4: If [Sensor Current], [Weighting], [HPF] parameters are changed, coupling is changed to
βACβ. Because these parameters are of βACβ coupling.
The settings of [Unit], [Coeff1], [Coeff2] and [Offset] reflect on Wave form display area.
Please refer to 8.4 Channel Property.
