40
6.3.

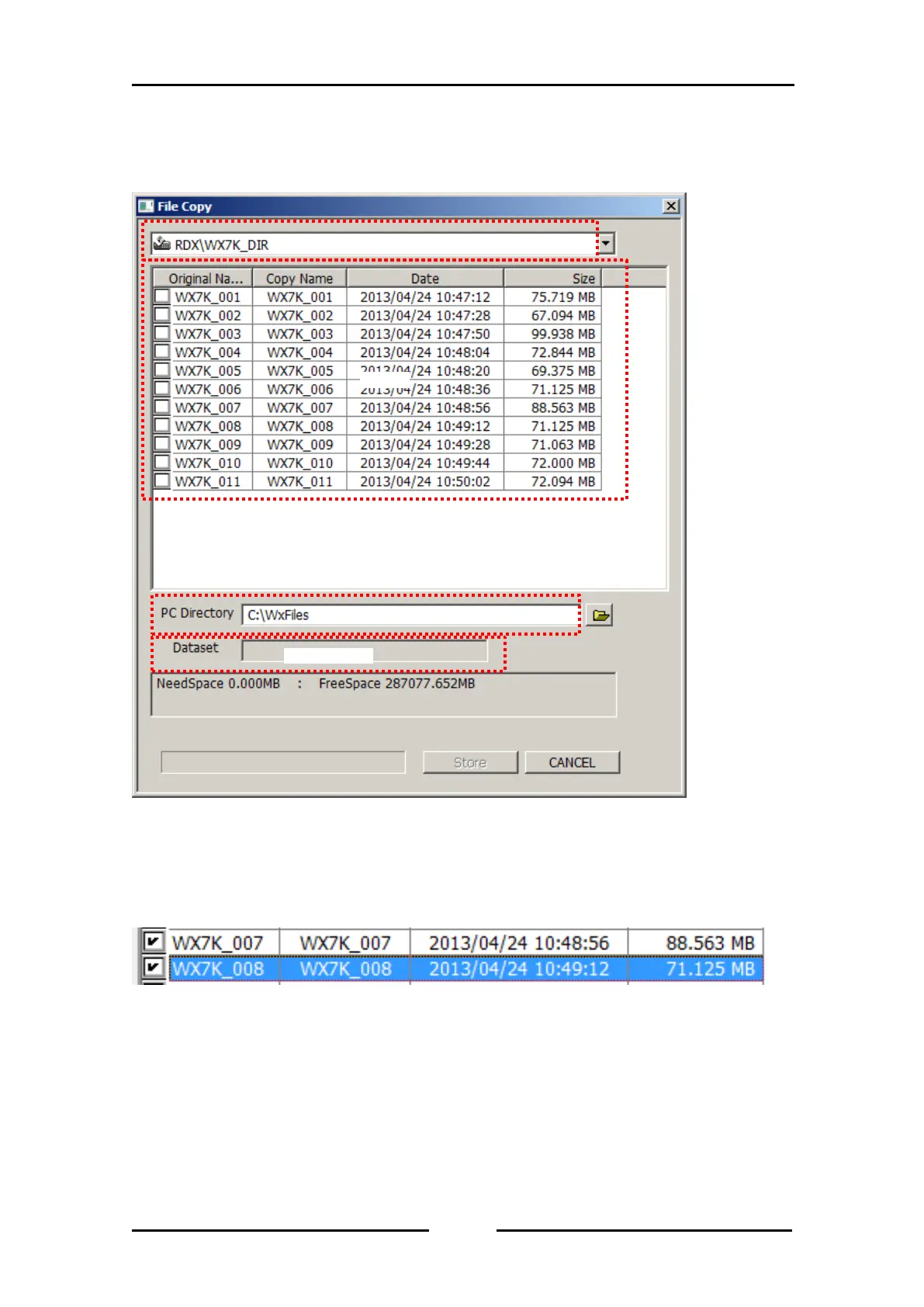

Copy the files
F
ollowing window is displa
yed after [Copy] of [File] me
nu selected.
Y
ou can cop
y the T
AF
Fmat files on the WX-7000 to the PC.
6.3.1.
Select files
Select the directory o
f the me
dia on the WX-700
0.
Y
ou can sele
ct one directory for to copy f
iles at once.
Select the files by che
ck boxes.
6.3.2.
Select target directory
Y
ou can sele
ct the target directory on the P
C by PC Directory box.
Directory name
on the WX-
7000
File list
Directory name
on the
PC
Rename name
40
42
