9.4. Header Information

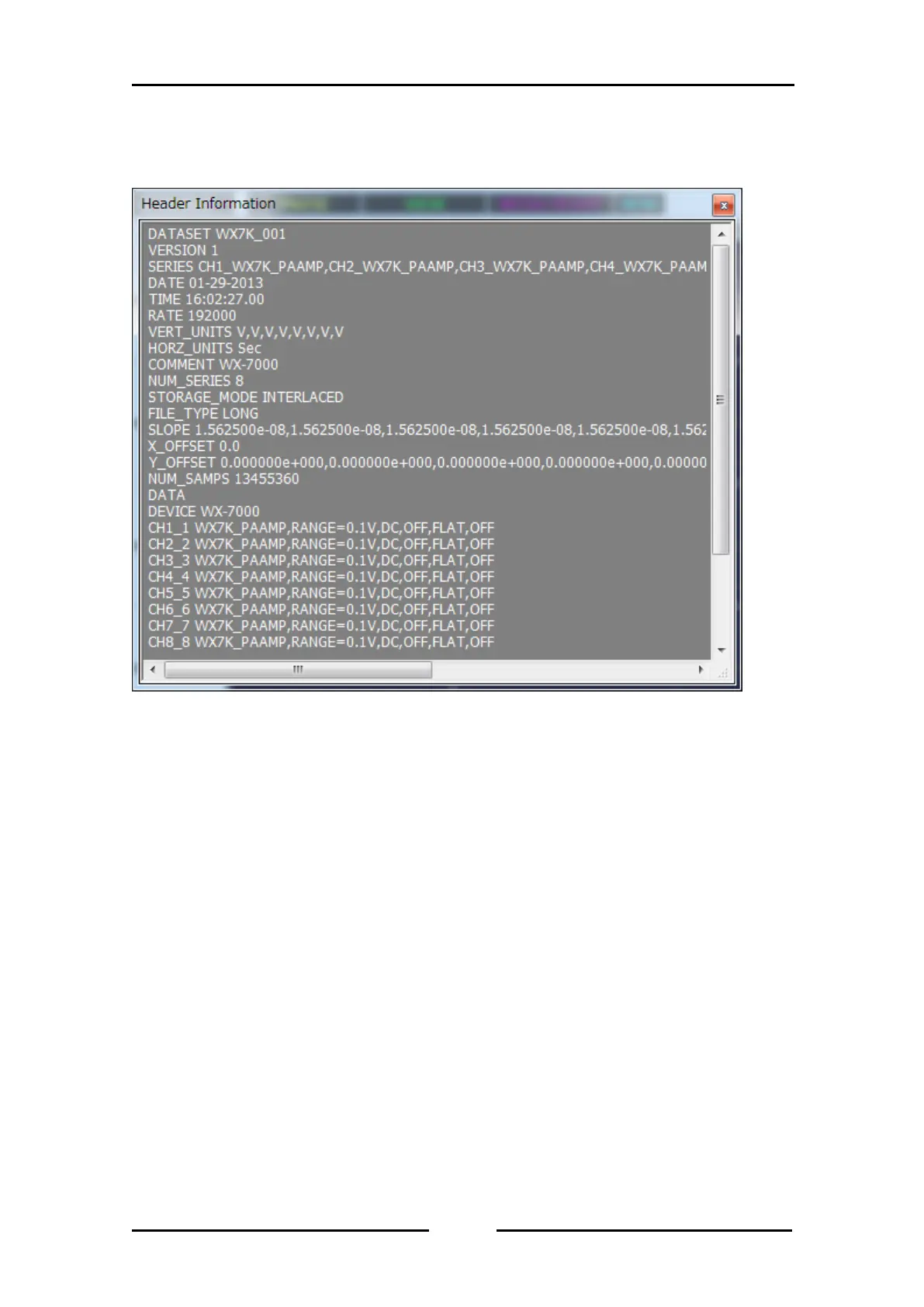

The header file of TAFFmat currently being reproduced is displayed if the Header File Information

on the tool bar is selected while being in the VIEW mode.
