13. Replace the running surface.
For details, refer to the disassembly procedure described in the chapter:
$7.23 DISASSEMBLING THE RUN SURFACE
Details about the disassembling of the elevation system:

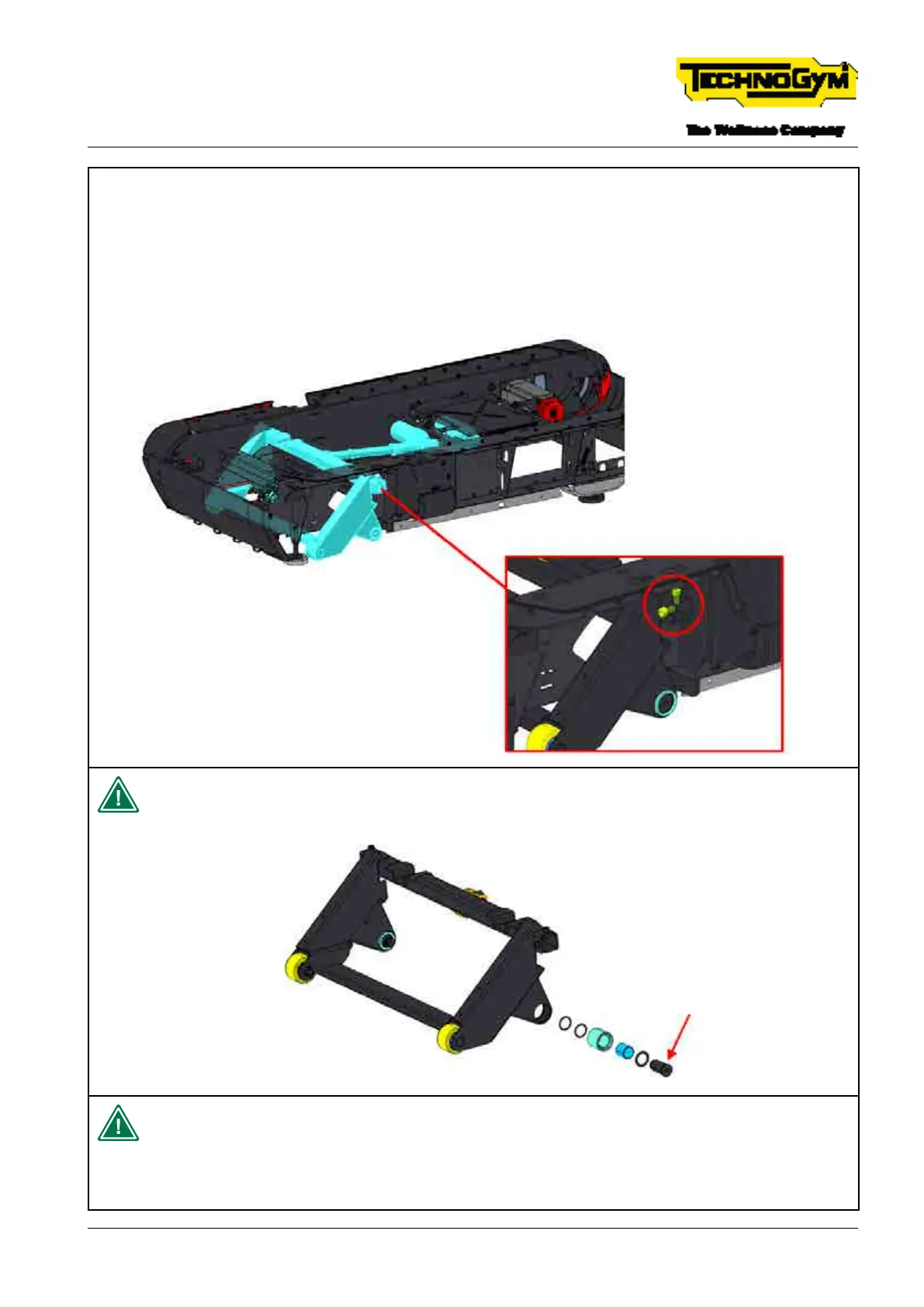

Remove the two screws indicated, (TOOL: 6 mm hexagon key wrench).
ATTENTION: During reassembly the pin of the elevation system, Apply Loctite 243 on the
thread of the pin.
ATTENTION: In order to assemble and tension the motor belt, follow the procedure shown
in the video attached:
22 - Assembling the rear pulley and tension the motor belt
TECHNOGYM RUN Technical Service Guide
Rev. 1.0
- 57 -TSG-00284-EN- Uncontrolled copy if printed
