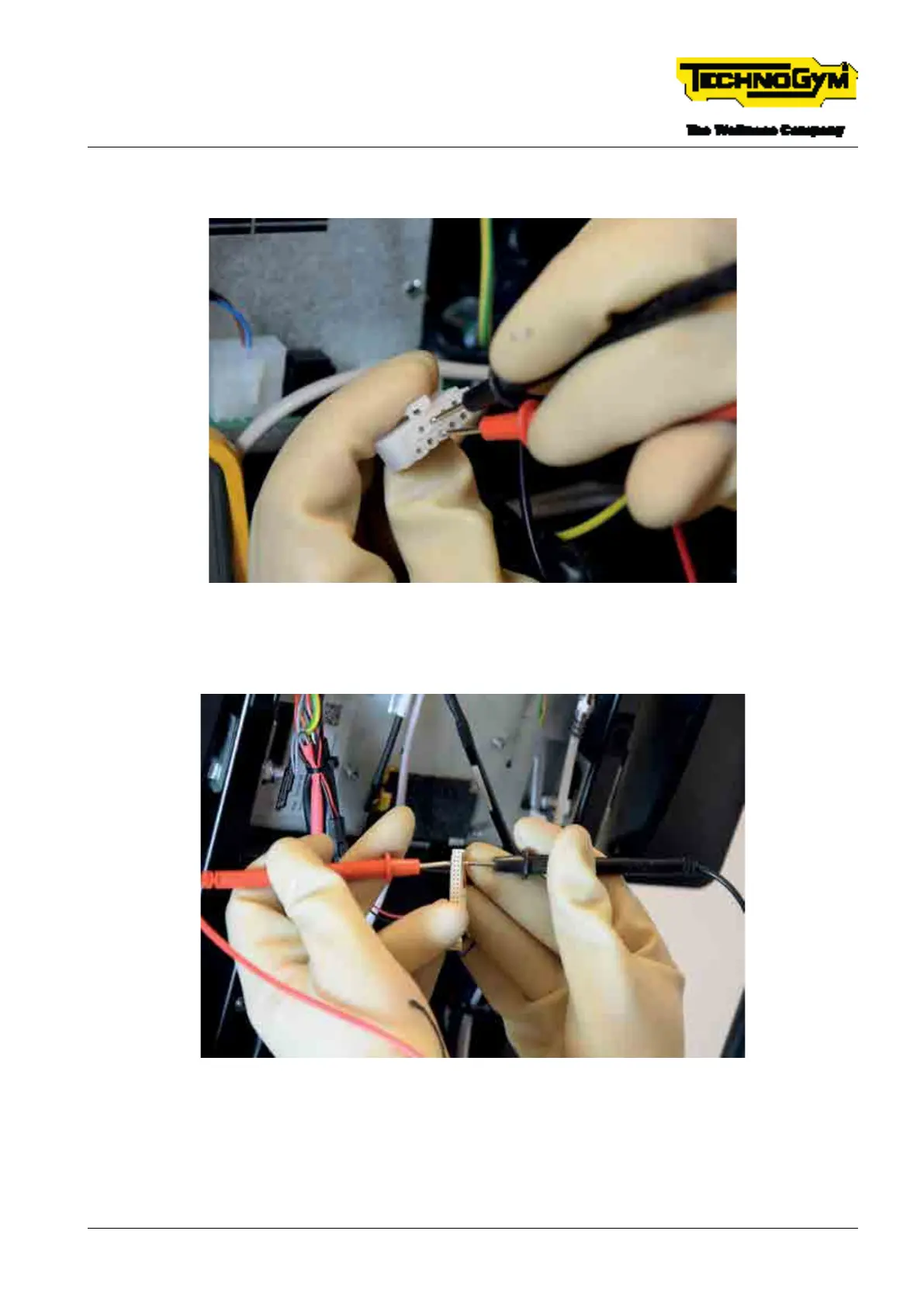

[3]: Disconnect the High Kit-Low Kit connection cable 0WCU1266xx from the STIWI connector and
insert the tips of the tester between PIN 3 and PIN 9 of the drive connector.
Fig. 31
[4]: Disconnect the 0WCU1419xx cable and insert the tips of the tester in PIN 5 and PIN 6 (light
blue-orange) of the display connector.
Fig. 32
