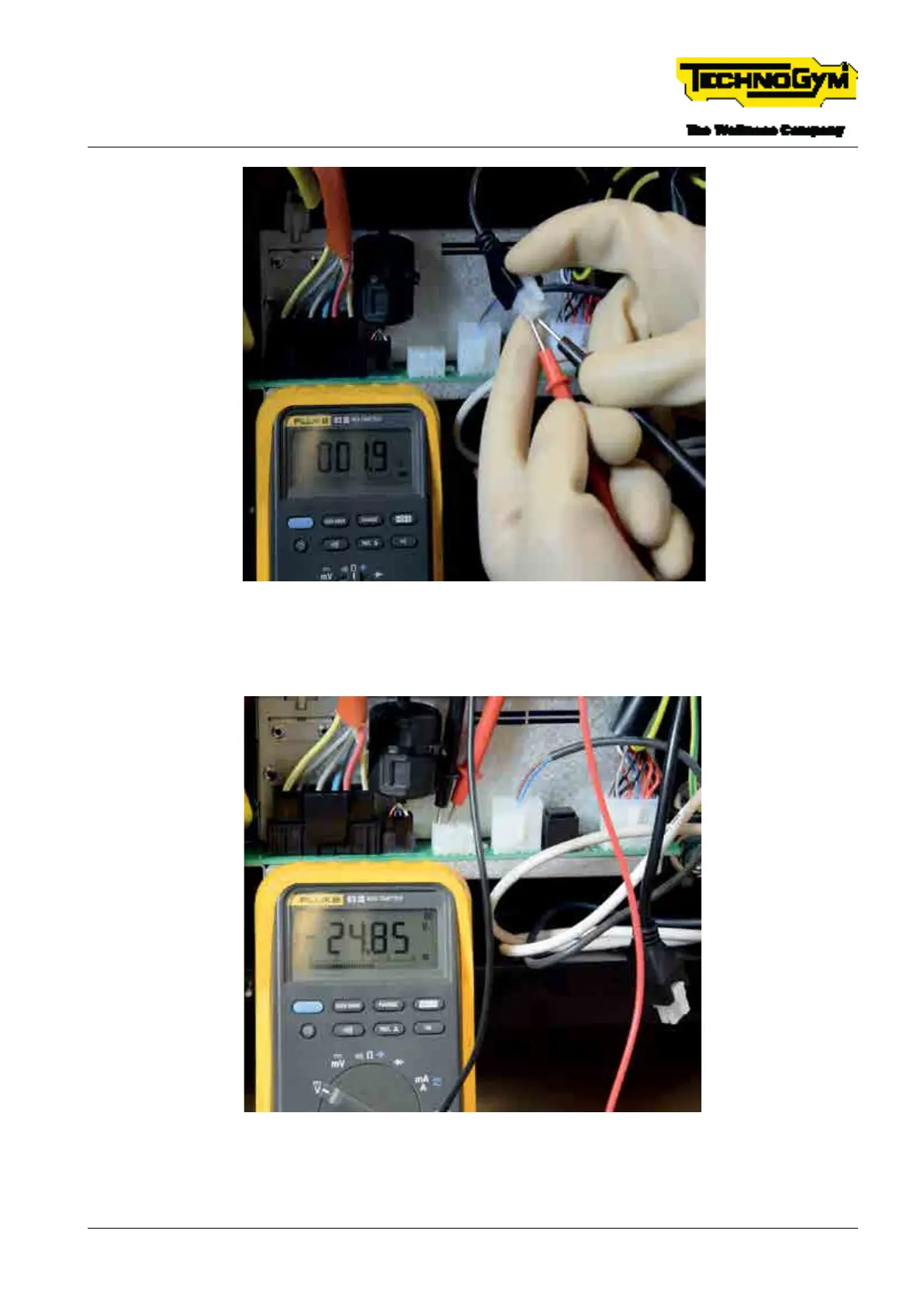

Fig. 44
[3]: Check that 24Vdc reaches the gradient motor: Insert the tips of the tester in PIN 1 and PIN 2 of
the gradient motor connector connected to the drive.
Fig. 45
[4]: For details, see: $”6.1.2 REPLACING THE DRIVE (LOW KIT)”.
TECHNOGYM RUN Technical Service Guide
Rev. 1.0
- 87 -TSG-00284-EN- Uncontrolled copy if printed
