Technogym FLEXability ME05 - Moving; Anterior; Posterior

FLEXability LINE: Service & Maintenance Manual - rev. 1.0

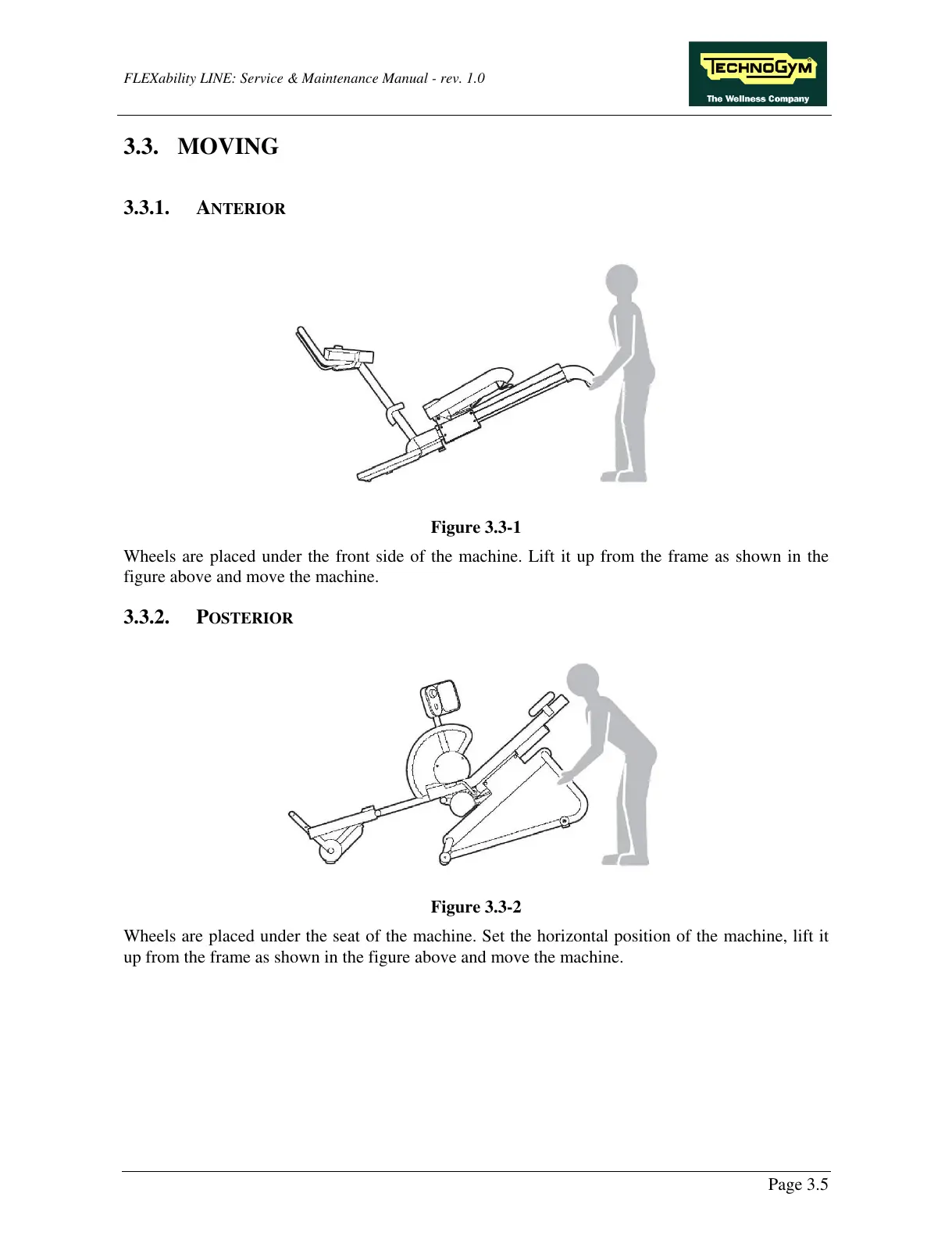

3.3. MOVING
3.3.1. ANTERIOR
Figure 3.3-1
Wheels are placed under the front side of the machine. Lift it up from the frame as shown in the
figure above and move the machine.
3.3.2. POSTERIOR
Figure 3.3-2
Wheels are placed under the seat of the machine. Set the horizontal position of the machine, lift it
up from the frame as shown in the figure above and move the machine.
Page 3.5
