FLEXability LINE: Service & Maintenance Manual - rev. 1.0

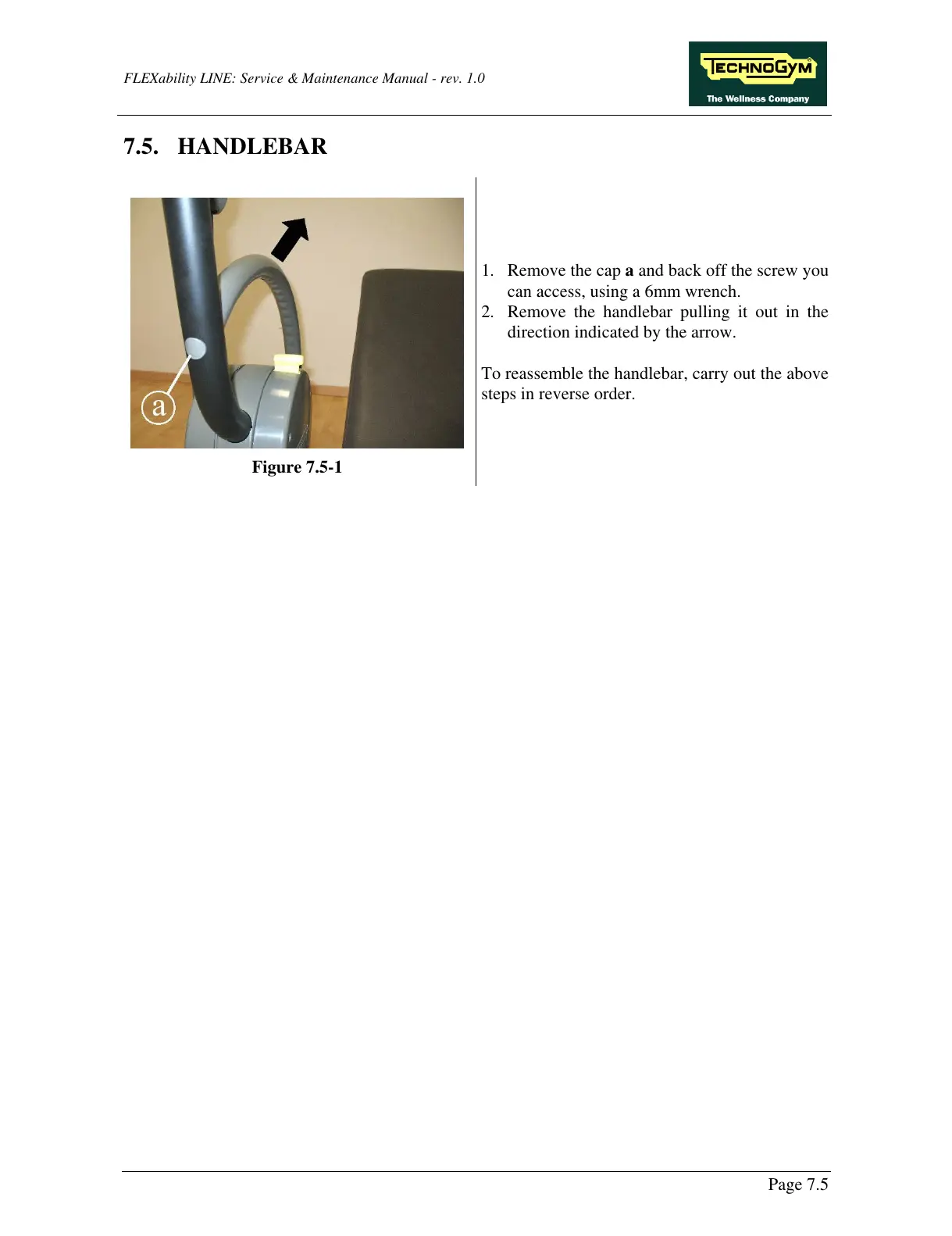

7.5. HANDLEBAR
Figure 7.5-1
1. Remove the cap a and back off the screw you
can access, using a 6mm wrench.
2. Remove the handlebar pulling it out in the
direction indicated by the arrow.
To reassemble the handlebar, carry out the above
steps in reverse order.
Page 7.5
