FLEXability LINE: Service & Maintenance Manual - rev. 1.0
Page 5.2

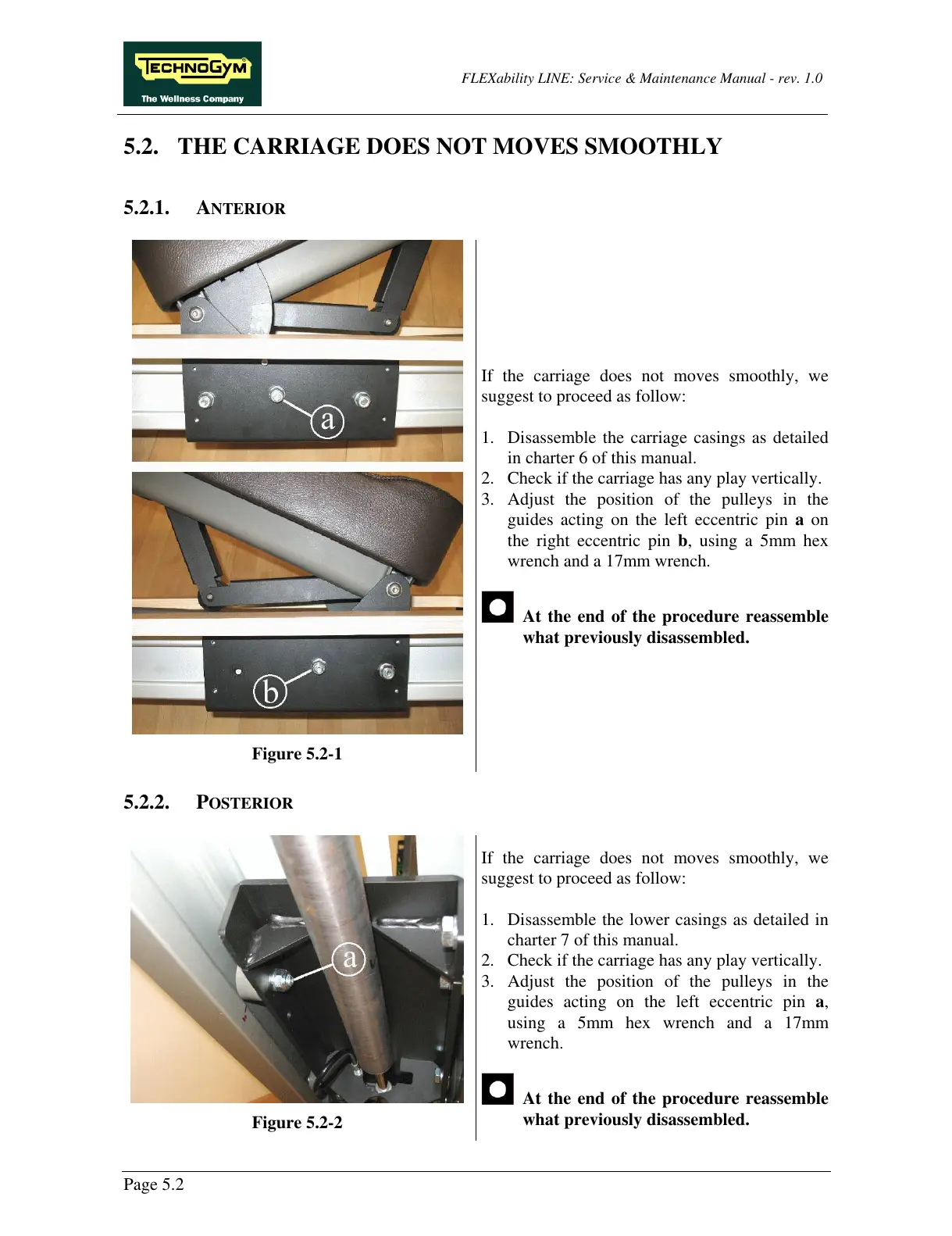

5.2. THE CARRIAGE DOES NOT MOVES SMOOTHLY
5.2.1. ANTERIOR
Figure 5.2-1
If the carriage does not moves smoothly, we
suggest to proceed as follow:
1. Disassemble the carriage casings as detailed
in charter 6 of this manual.
2. Check if the carriage has any play vertically.
3. Adjust the position of the pulleys in the
guides acting on the left eccentric pin a on
the right eccentric pin b, using a 5mm hex
wrench and a 17mm wrench.
At the end of the procedure reassemble
what previously disassembled.
5.2.2. POSTERIOR
Figure 5.2-2
If the carriage does not moves smoothly, we
suggest to proceed as follow:
1. Disassemble the lower casings as detailed in
charter 7 of this manual.
2. Check if the carriage has any play vertically.
3. Adjust the position of the pulleys in the
guides acting on the left eccentric pin a,
using a 5mm hex wrench and a 17mm
wrench.
At the end of the procedure reassemble
what previously disassembled.
