FLEXability LINE: Service & Maintenance Manual - rev. 1.0

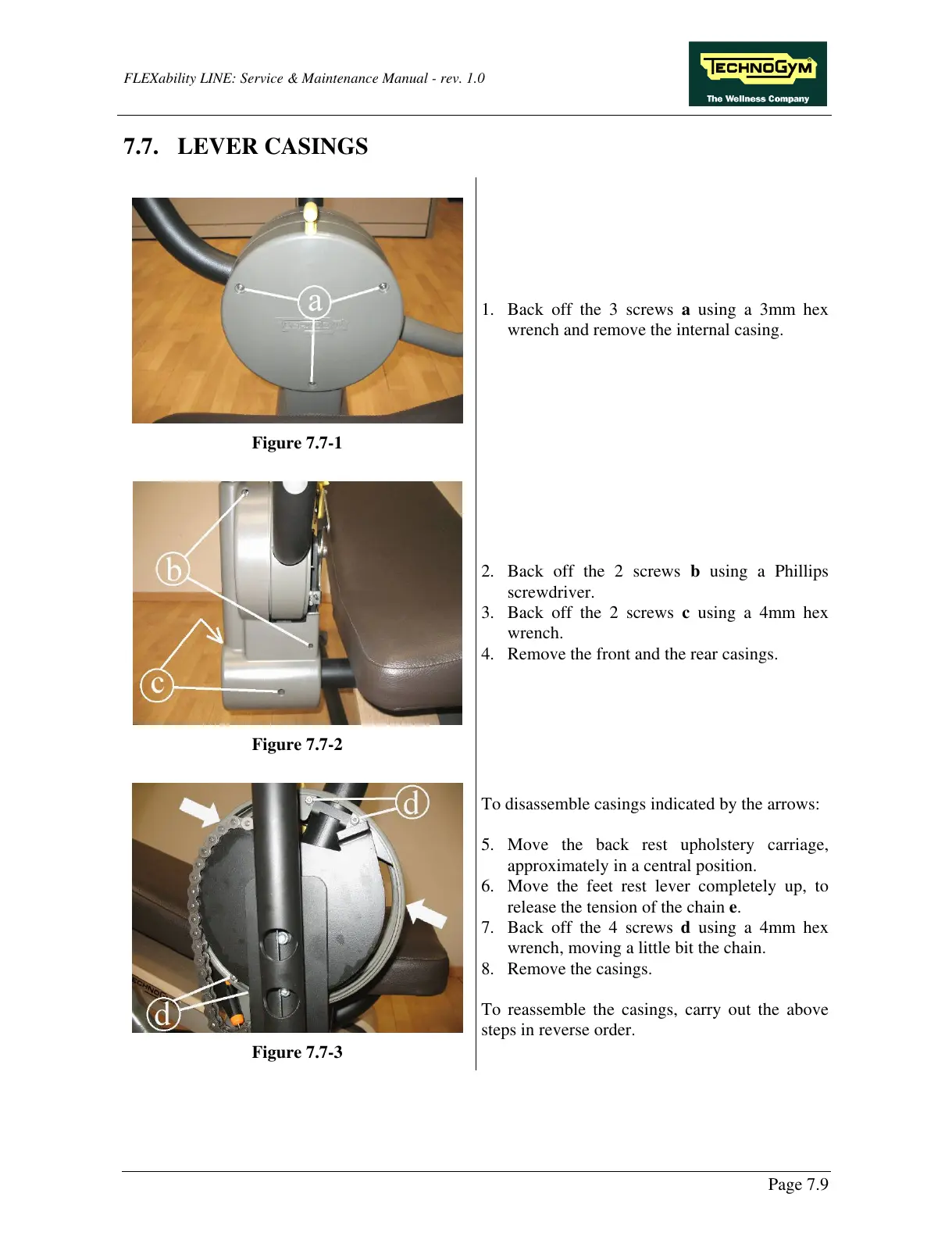

7.7. LEVER CASINGS
Figure 7.7-1
1. Back off the 3 screws a using a 3mm hex
wrench and remove the internal casing.
Figure 7.7-2
2. Back off the 2 screws b using a Phillips
screwdriver.
3. Back off the 2 screws c using a 4mm hex
wrench.
4. Remove the front and the rear casings.
Figure 7.7-3
To disassemble casings indicated by the arrows:
5. Move the back rest upholstery carriage,
approximately in a central position.
6. Move the feet rest lever completely up, to
release the tension of the chain e.
7. Back off the 4 screws d using a 4mm hex
wrench, moving a little bit the chain.
8. Remove the casings.
To reassemble the casings, carry out the above
steps in reverse order.
Page 7.9
