FLEXability LINE: Service & Maintenance Manual - rev. 1.0
Page 6.14

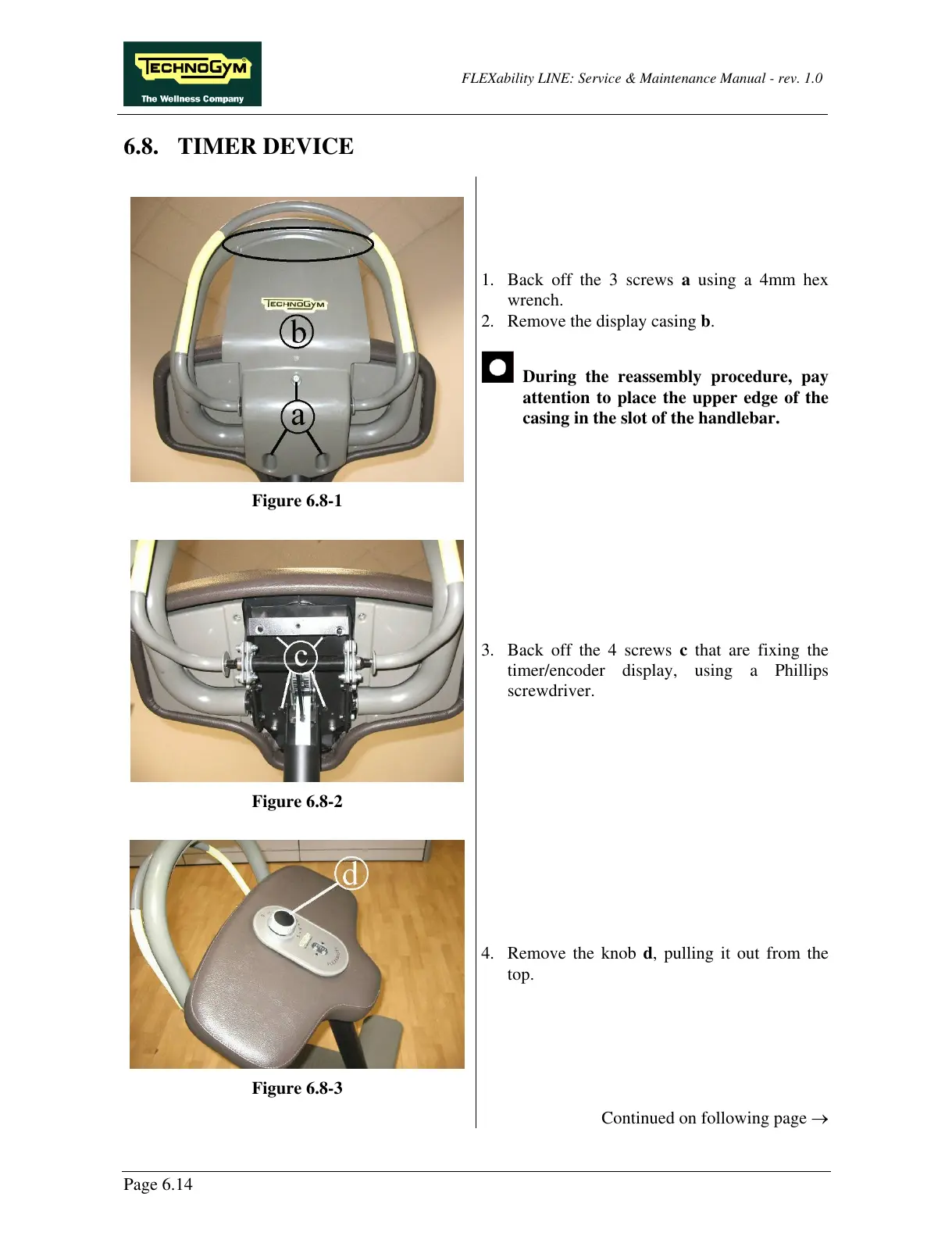

6.8. TIMER DEVICE
Figure 6.8-1
1. Back off the 3 screws a using a 4mm hex
wrench.
2. Remove the display casing b.
During the reassembly procedure, pay
attention to place the upper edge of the
casing in the slot of the handlebar.
Figure 6.8-2
3. Back off the 4 screws c that are fixing the
timer/encoder display, using a Phillips
screwdriver.
Figure 6.8-3
4. Remove the knob d, pulling it out from the
top.
Continued on following page →
