FLEXability LINE: Service & Maintenance Manual - rev. 1.0
Page 7.2

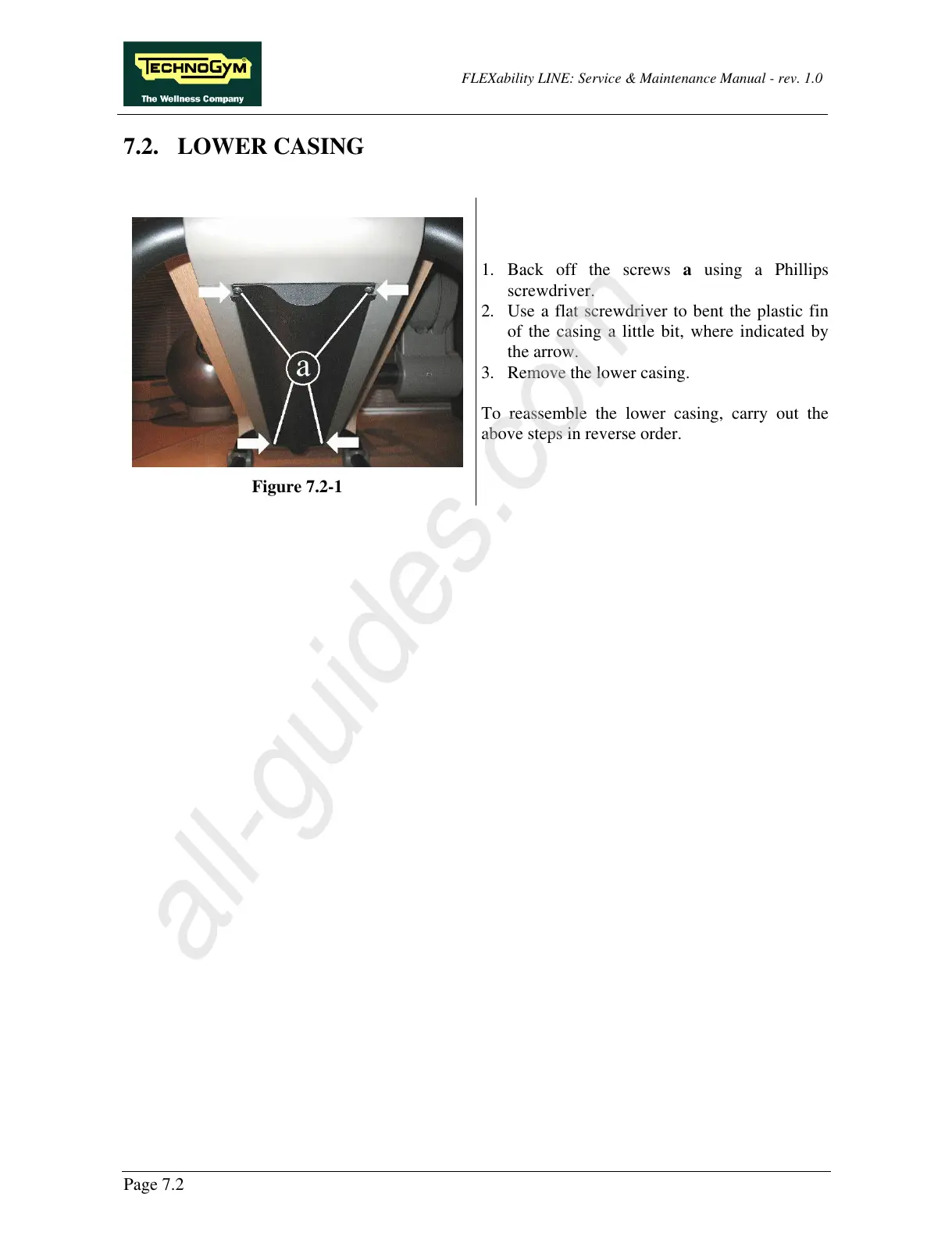

7.2. LOWER CASING
Figure 7.2-1
1. Back off the screws a using a Phillips
screwdriver.
2. Use a flat screwdriver to bent the plastic fin
of the casing a little bit, where indicated by
the arrow.
3. Remove the lower casing.
To reassemble the lower casing, carry out the
above steps in reverse order.
