FLEXability LINE: Service & Maintenance Manual - rev. 1.0

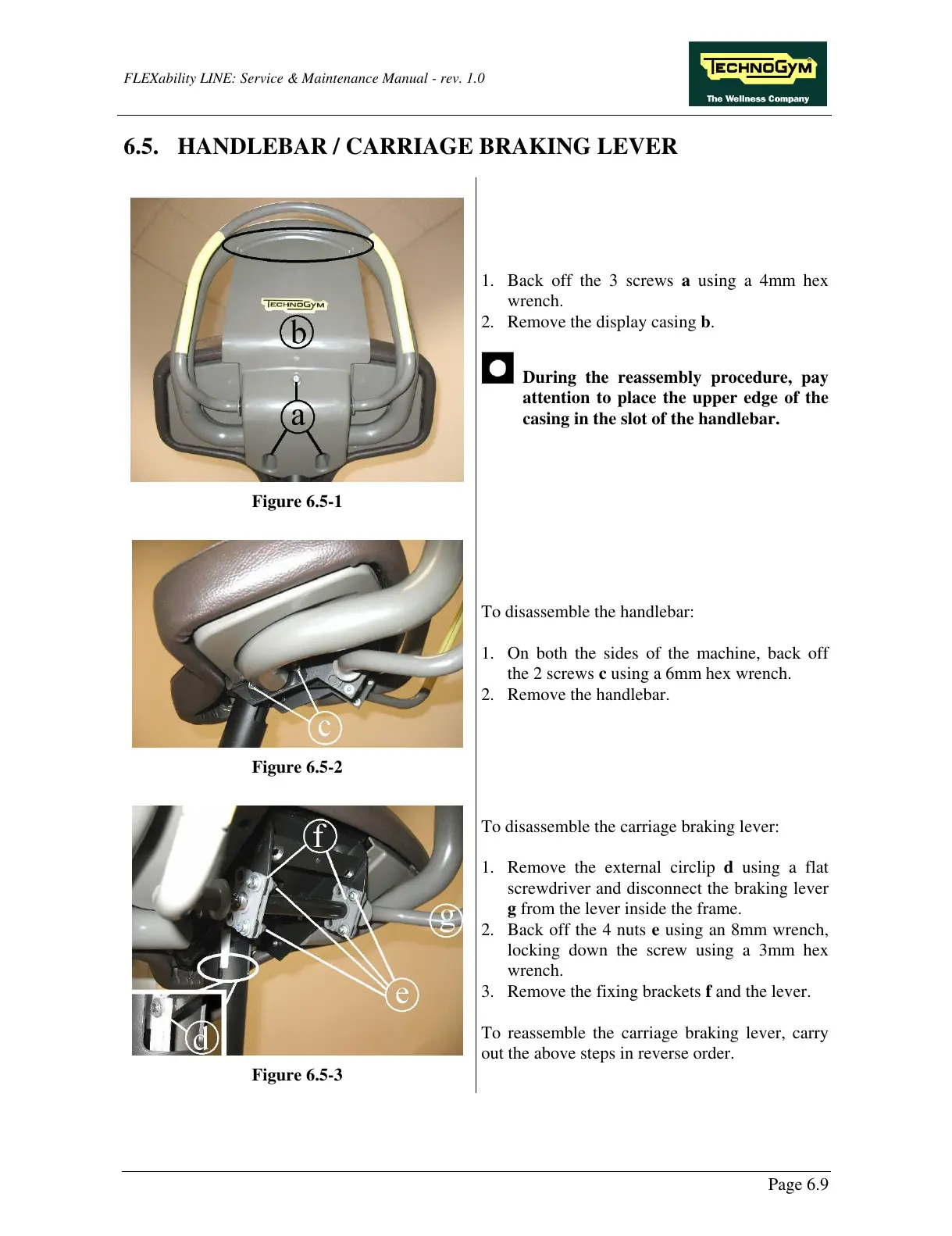

6.5. HANDLEBAR / CARRIAGE BRAKING LEVER
Figure 6.5-1
1. Back off the 3 screws a using a 4mm hex
wrench.
2. Remove the display casing b.
During the reassembly procedure, pay
attention to place the upper edge of the
casing in the slot of the handlebar.
Figure 6.5-2
To disassemble the handlebar:
1. On both the sides of the machine, back off
the 2 screws c using a 6mm hex wrench.
2. Remove the handlebar.
Figure 6.5-3
To disassemble the carriage braking lever:
1. Remove the external circlip d using a flat
screwdriver and disconnect the braking lever
g from the lever inside the frame.
2. Back off the 4 nuts e using an 8mm wrench,
locking down the screw using a 3mm hex
wrench.
3. Remove the fixing brackets f and the lever.
To reassemble the carriage braking lever, carry
out the above steps in reverse order.
Page 6.9
