FLEXability LINE: Service & Maintenance Manual - rev. 1.0
Page 6.4

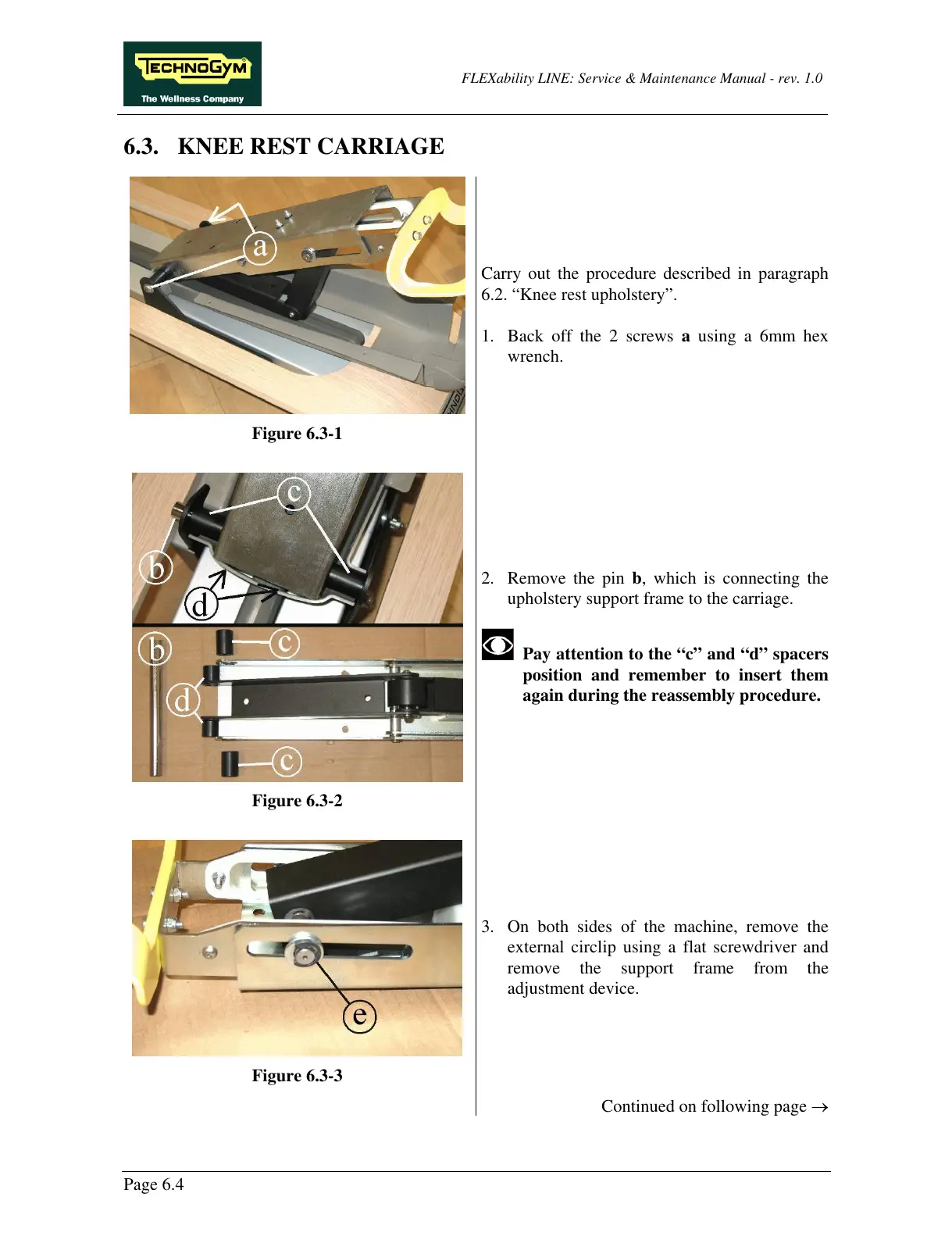

6.3. KNEE REST CARRIAGE
Figure 6.3-1
Carry out the procedure described in paragraph
6.2. “Knee rest upholstery”.
1. Back off the 2 screws a using a 6mm hex
wrench.
Figure 6.3-2
2. Remove the pin b, which is connecting the
upholstery support frame to the carriage.
Pay attention to the “c” and “d” spacers
position and remember to insert them
again during the reassembly procedure.
Figure 6.3-3
3. On both sides of the machine, remove the
external circlip using a flat screwdriver and
remove the support frame from the
adjustment device.
Continued on following page →
