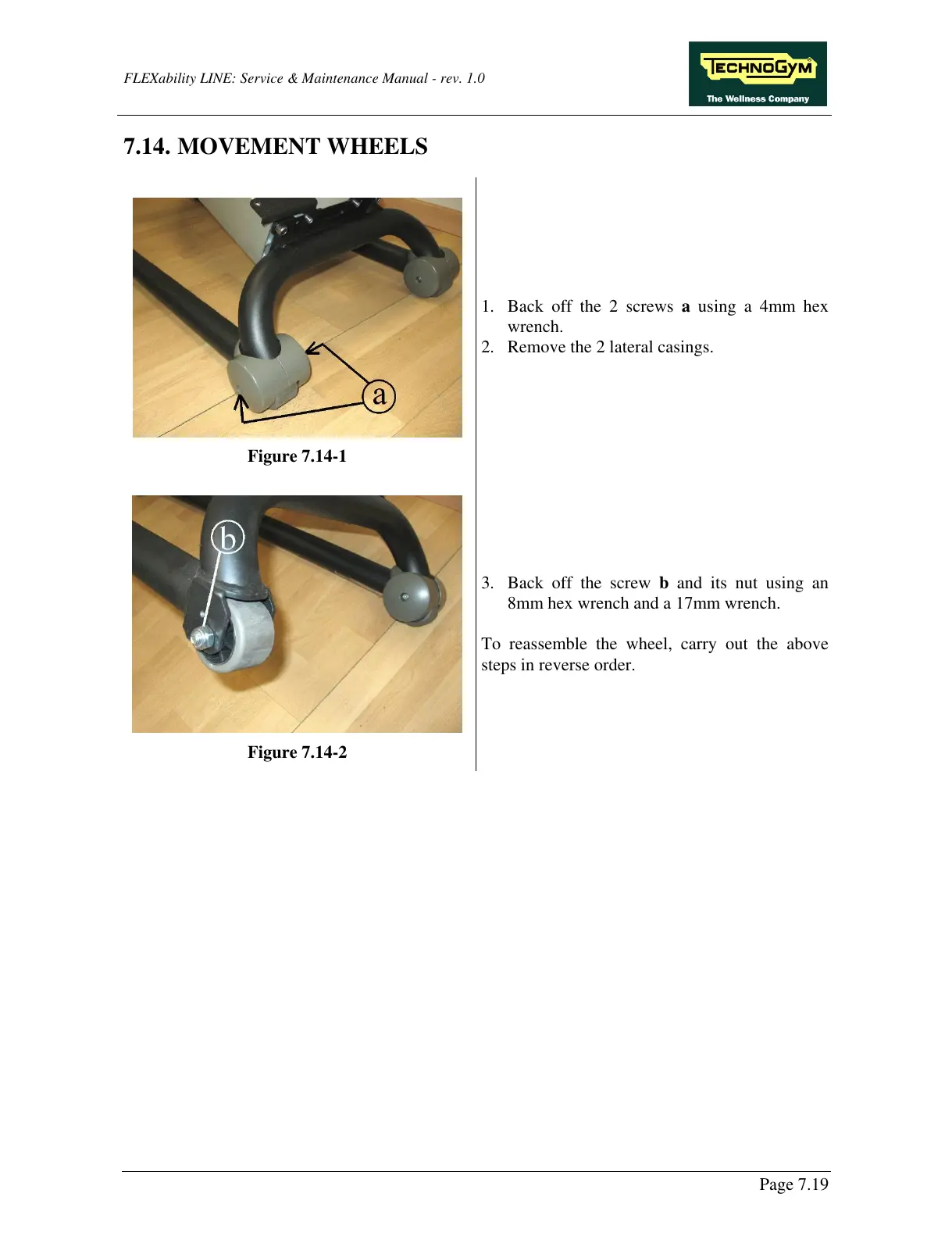

7.14. MOVEMENT WHEELS
Figure 7.14-1
1. Back off the 2 screws a using a 4mm hex
wrench.
2. Remove the 2 lateral casings.
Figure 7.14-2
3. Back off the screw b and its nut using an
8mm hex wrench and a 17mm wrench.
To reassemble the wheel, carry out the above
steps in reverse order.
